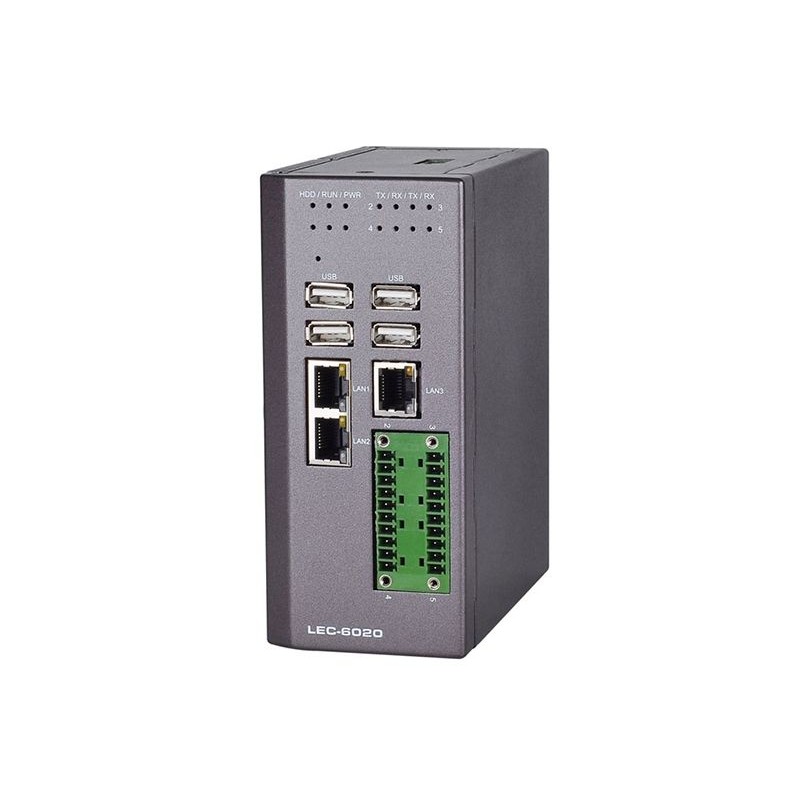

Fanless Industrial DIN Rail Security Platform with Intel® Atom™ N2600 CPU
Key features
- Intel Atom-based Industrial Firewall
- Onboard Intel® Atom N2600 CPU with NM10 Chipset
- Fanless design with corrugated aluminum
- Wide temperature range (-40~70°C)
- Supports DDR3 Memory, maximum capacity is 2 GB
- OS support for both Linux and Windows
- 3 or 5 Intel GbE LAN ports (using Intel 82574L LAN controller)
- 1 or 2 pairs of LAN Bypass
- ESD and Surge Protection on Serial COM ports for harsh environments
- Support DIN-rail mount and wall mount
Overview
LEC-6020 is a Fanless DIN Rail Industrial Security Platform with an Intel® Atom™ N2600 CPU. It includes 3 or 5 GbE ports, 1 or 2 pairs of LAN Bypass function, 4 COM ports (LEC-6020A only) and 2 or 4 USB ports. This platform is ideal to provide network security protection for industrial automation or power communication applications.
Specifications
| Platform | |
| CPU | Intel® Atom N2600 |
| Chipset | Intel NM10 |
| BIOS | AMI 8 Mbit SPI Flash ROM |
| Memory Technology | DDR3 1066/1333MHz, unbuffered, Non-ECC |
| Memory Capacity | 2 GB |
| Memory Socket | 1 x 204-pin DDR3 SODIMM socket |
| Storage | |
| IDE storage | CompactFlash socket Type I/II x 1, SATA x 1 |
| SATA storage | SATA connector for SSD/HDD expansion |
| I/O | |
| Ethernet controller | LEC-6020A: Intel 82574L x 3 |
| Graphic controller | Intel® GMA 3600 |
| Default LAN | LEC-6020A: 3 x GbE RJ45 |
| Bypass | LEC-6020A: 1 pair LEC-6020B: 2 pairs |
| Magnetic Isolation Protection | 1.5 KV built-in |
| Display output | Internal pinheader |
| RS-232 signals | RTS, Rx, Tx, CTS, GND |
| RS-422 signals | TxD+, TxD-, RxD-, RxD+, GND |
| RS-485 signals | Data+, Data-, GND |
| Baudrate | Supports 50 bps to 115.2 Kbps |
| Serial ESD protection | 15 KV for all signals |
| USB 2.0 | 4 (LEC-6020A) |
| Expansion | Mini-PCIe (LEC-6020A only) |
| OS and Certifications | |
| Operating System | Linux 2.6, Windows XP Embedded, Window XP, Window 7 Embedded |
| Certifications | CE Emission, FCC Class A, RoHS |
| Physical and Environmental | |
| Commerical temperature | -40°C to 70°C |
| Operating temperature | -40°C to 85°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Storage humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 65 mm x 146 mm x 127 mm (2.56" x 5.75" x 5.00") |
| Weight | 1 kg (2.2 lbs) |
| Watchdog | 1~255 level time interval system reset, software programmable |
| Internal RTC | Yes, with battery lithium backup |
| Warranty | 2 years |
| Casing material | Aluminum and SECC |
Details zu ALLNET DIN-RAIL / Hutschienen PC LEC-6020A - Atom N2600
Hersteller:
LEC-6020A
Gewicht:
1.200000 kg
