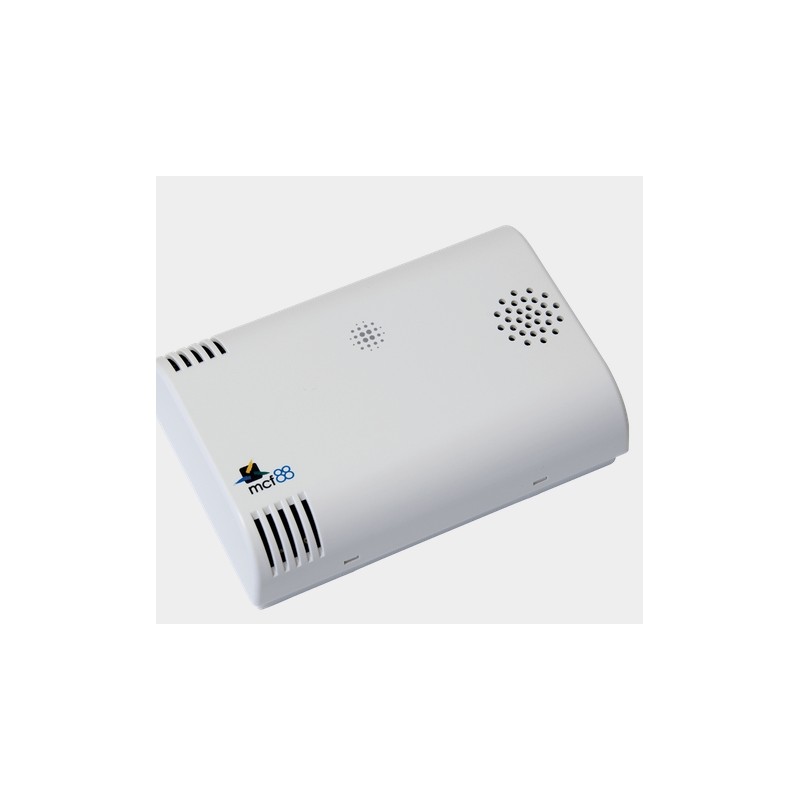

LoRa MCF88 LoRaWAN Indoor Environmental Sensor Temperatur - Luftfeuchtigkeit, Druck, Licht, Luftqualität und CO2

LoRa MCF88 LoRaWAN Indoor Environmental Sensor Temperatur - Luftfeuchtigkeit, Druck, Licht, Luftqualität und CO2

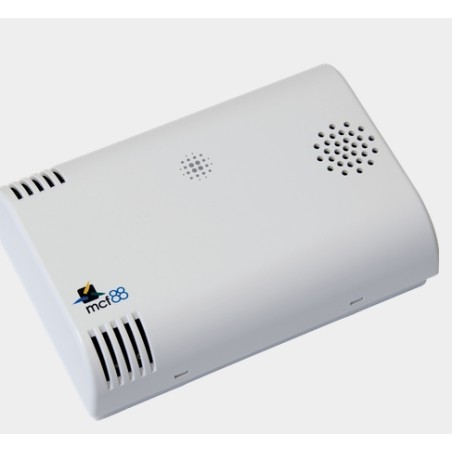

LoRaWAN® indoor environmental sensor with VOC, LUX and CO2

This device reads temperature, humidity, pressure, light intensity, air quality (expressed as IAQ or bVOC value) and CO2 and sends collected data over the LoRaWAN® network. Ideally suited for a wide range of applications such as building automation, condition monitoring, predictive maintenance, security, healthcare and many more use cases.

Technische Daten:

- CPU Cortex M0+ - EEProm 32Kb - Flash 64k - Encryption AES 128 bit - Class A LoRaWAN® stack EU868, AS923 - Temperature -10 ÷ 60 °C ( ±0.5°C) - Humidity 0 ÷ 100% (20 ÷ 80% ±3% @25°C, 0 ÷ 20% 80 ÷ 100% ±5% @25°C) - Pressure 300 ÷ 1100hPa (±1hPa) - Ambient Light Sensor 0.01 ÷ 80000 lux (±15%) - IAQ index 0 ÷ 500 - bVOC 500 ÷ 50000ppb (sensor to sensor deviation ±15%) - CO2 300 ÷ 5000 ppm (±50ppm ±3% of reading) - Battery powered with 5 years of life (according radio propagation effectiveness and 15 min reading period) - NFC for IoT node setup, FW upgrade and data reading - Installation indoor
