MikroTik Wireless RBOmniTikUPA-5HnD

RouterBOARD OmniTikUPA-5HnD with 400MHz CPU, 64MB RAM, 5Ghz Dual Chain 802.11a/n wireless with 2x 7.5dBi, integrated Omni antennas, USB, POE-OUT, RouterOS L5, POE, PSU, pole mount

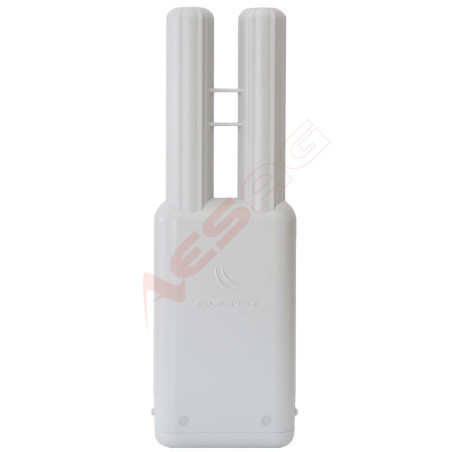

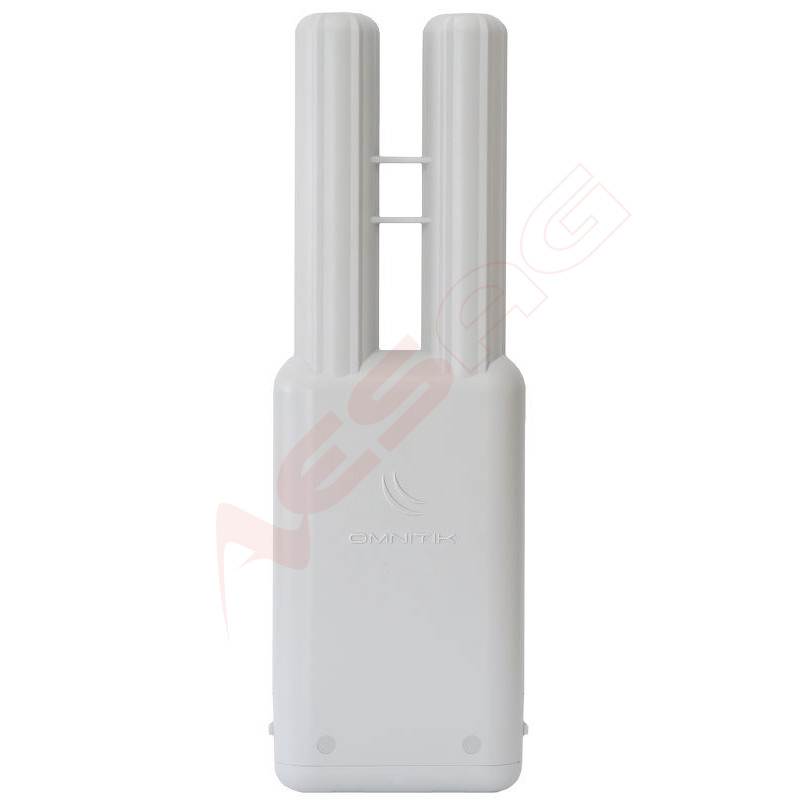

OmniTIK UPA-5HnD

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device.

Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

LED signal indicators on it?s back are fully customisable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.

The OmniTIK UPA also features power output on it?s ethernet ports. Ports 2-5 can power other PoE capable devices (like SXT-5HPnD) with the same voltage as applied to the unit. Less power adapters to worry about!

Box contains: OmniTik UPA-5HnD, mounting loops, PoE injector, 24v 2.5A power adapter

Product specifications

Details

Product code RBOmnitikUPA-5HnD

CPU nominal frequency 400 MHz

CPU core count 1

Size of RAM 64 MB

Architecture MIPS-BE

10/100 Ethernet ports 5

10/100/1000 Ethernet ports 0

MiniPCI slots 0

MiniPCI-e slots 0

Wireless chip model AR9280-AL1A

Wireless standards 802.11a/n

Number of USB ports 1

Memory Cards No

Power Jack 0

802.3af support No

PoE in Yes

Voltage Monitor Yes

CPU temperature monitor No

PCB temperature monitor Yes

Dimensions 368x125x55mm

Operating System RouterOS

Operating temperature range -30 .. +70C

License level 5

Antenna gain DBI 7.5

Current Monitor Yes

CPU AR7241-AH1A

SFP ports 0

SFP+ ports 0

USB slot type USB type A

Number of chains 2

Serial port None

Suggested price $99.00
