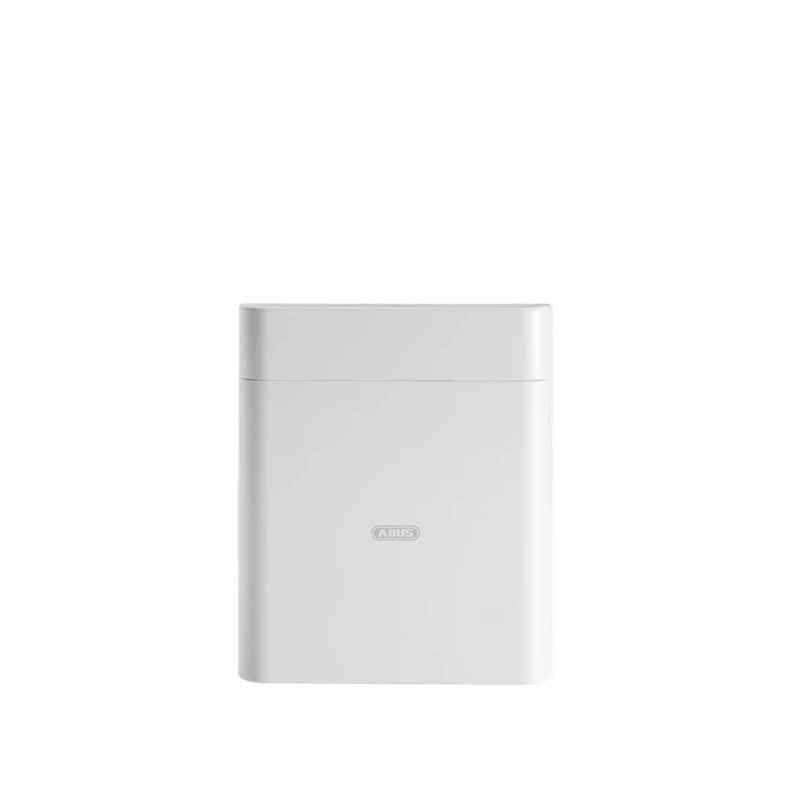

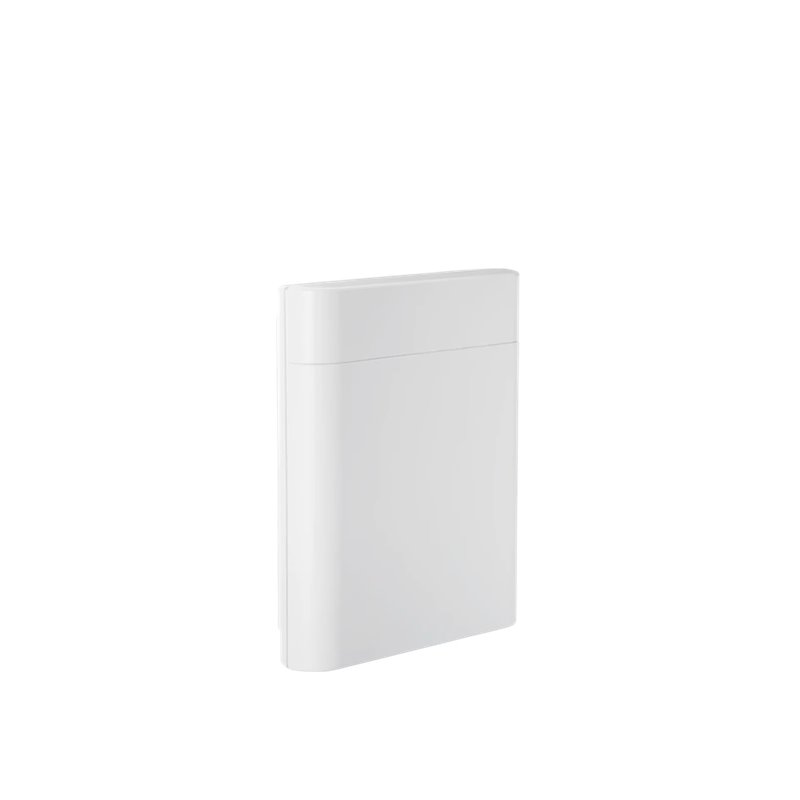

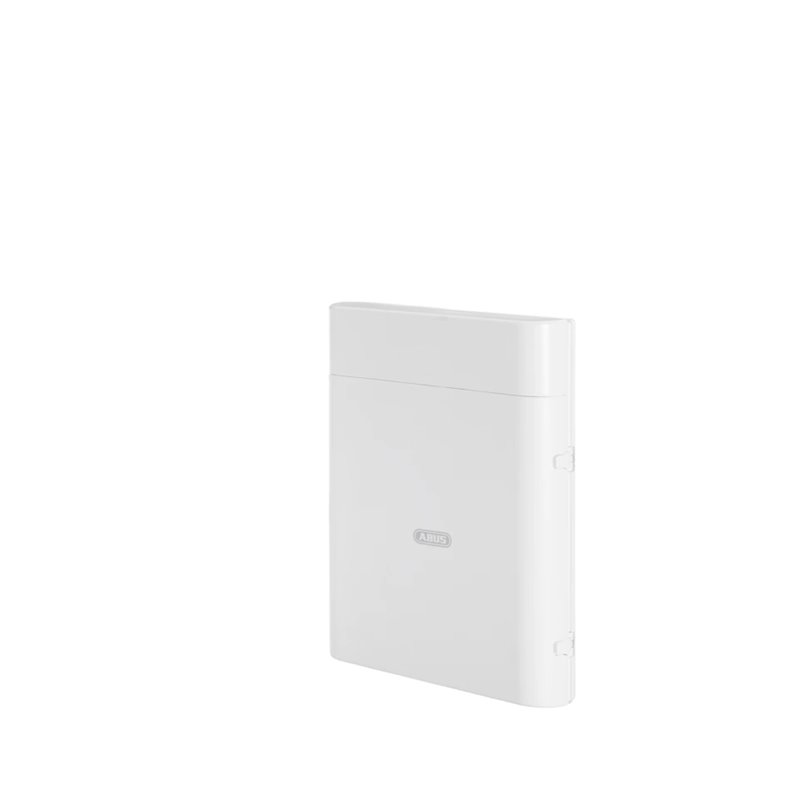

ABUS Secoris FUSG60110 Wireless indoor siren

ALARM THROUGHOUT THE BUILDING

Loud support for the alarm system
The wireless indoor siren is an additional component in the alarm chain. In the event of an alarm, it supports the alarm from the Secoris intruder alarm centre with a loud signal tone of more than 80 dB using control panels and wireless outdoor sirens. The installation of internal sirens is particularly recommended in larger buildings.

Signalling/confirmation for system operation
Accurate signalling (feedback) of operating inputs and status changes to the alarm system offers a high level of operating convenience and false alarm security. The siren acoustically signals an entry and exit delay ("countdown") and emits confirmation tones (acoustic acknowledgement) when arming and disarming (arming/disarming). This makes it easier to operate the alarm system and prevents false alarms due to operating errors. A door chime is also included in the range of functions.

Quickly integrated into the Secoris system
The battery-operated wireless indoor siren is quickly and easily connected and integrated into the Secoris. However, it can also be supplied with power via an external power supply unit and operated with correspondingly low maintenance. The discreet housing design makes the indoor siren ideal for environments with high aesthetic demands. And it can be installed practically anywhere in the building.

Tamper protection
The indoor siren communicates with the Secoris wireless extension (BUMO60030) via Secoris wireless mode. The transmission is AES128-encrypted and protected against replay attacks.
The sabotage protection integrated in the housing (cover/wall tear-off contact) offers robust protection: if someone tampers with the siren, it immediately sounds an alarm and reports the sabotage to the Secoris control centre.

Special product features:

• Signalling device for raising the alarm by means of a siren (acoustic)
• Loud alarm siren (> 80 dB(A) at 1 m) for indoor use
• Simple, wireless integration into the Secoris intruder alarm centre via the wireless extension (BUMO60030)
• Wireless siren easy to install or retrofit without cables, wireless signal repeatable for bridging long wireless distances
• Firmware OTA updateable (over-the-air remote maintenance)
• Tamper monitoring (cover and wall tear-off contact)
• Battery operation (up to 2 years) or external power supply (6-15 V DC, power supply unit optional)
• Compatible with Secoris (BUMO60030) and Secvest (FUAA50000, FUA50500 and higher)
• Radio connection in Secoris radio mode AES128-encrypted and replay-protected
• EN 50131 grade 2 certified

Technical data

• Height [mm]: 154
• Width [mm]: 130
• Certifications: EN 50131 Grade 2
• Dimensions [mm]: (WxHxD) 130x154x40
• Connections: Voltage
• Battery - max. battery life [year(s)]: 2
• Battery - type: 1.5 V AA alkaline
• Gross weight [kg]: 0.31
• Housing material: PC / ABS
• Max. Humidity [%]: 95
• Length [mm]: 40
• Modulation: 2FSK
• Mounting location: Surface mounting
• Net weight [kg]: 0.218
• Max. Receive range (free field) [m]: 700
• Max. Max. transmission range (free field) [m]: 700
• Tamper monitoring: Yes
• Sound pressure [dB]: > 80
• Protection class IP: 34
• Power supply DC [V]: 12
• Voltage monitoring: Yes
• Current consumption [mA]: 93
• Environmental class: II
• Compatible with: Secoris, Secvest
• Radio power [mW]: 10
• Radio frequency [MHz]: 868.09
• Max. Operating temperature [°C]: 55
• Min. operating temperature [°C]: -10
• Radio frequency 2 [MHz]: 868.23
• Radio frequency 3 [MHz]: 868.37
• Radio frequency 4 [MHz]: 868.51
• EN: Grade 2
• Standby current consumption [mA]: 0.003
• VdS class: None
• Mechanical protection: No
• Max. Receive range (building) [m]: 30
• Battery - GRS type: Alkaline
• Battery quantity: 4
• Product group :Siren

Scope of delivery:

• 1x ABUS Secoris FUSG60110 wireless indoor siren (acoustic signalling device)
