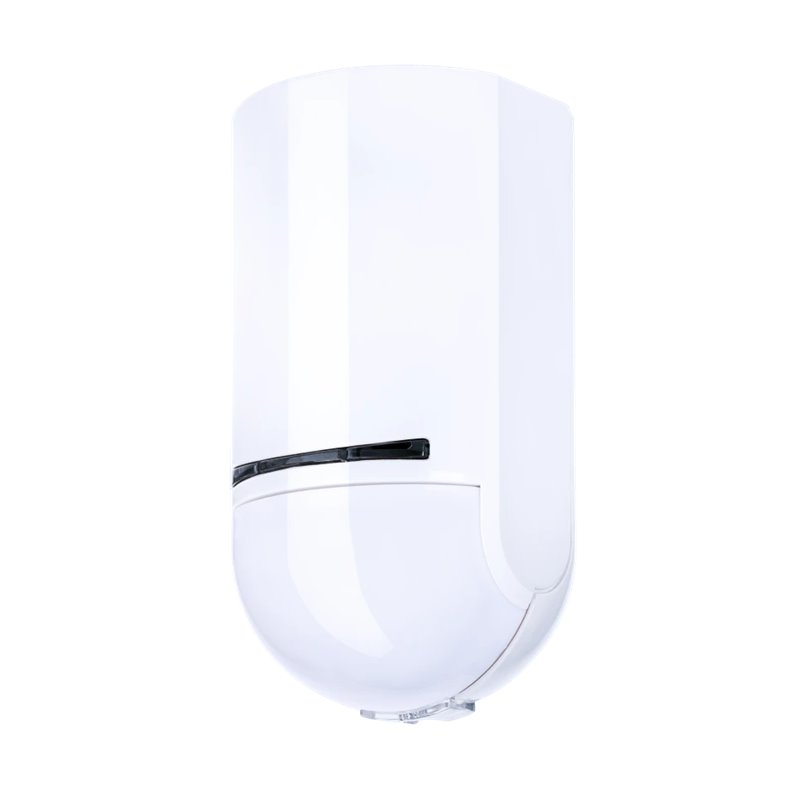

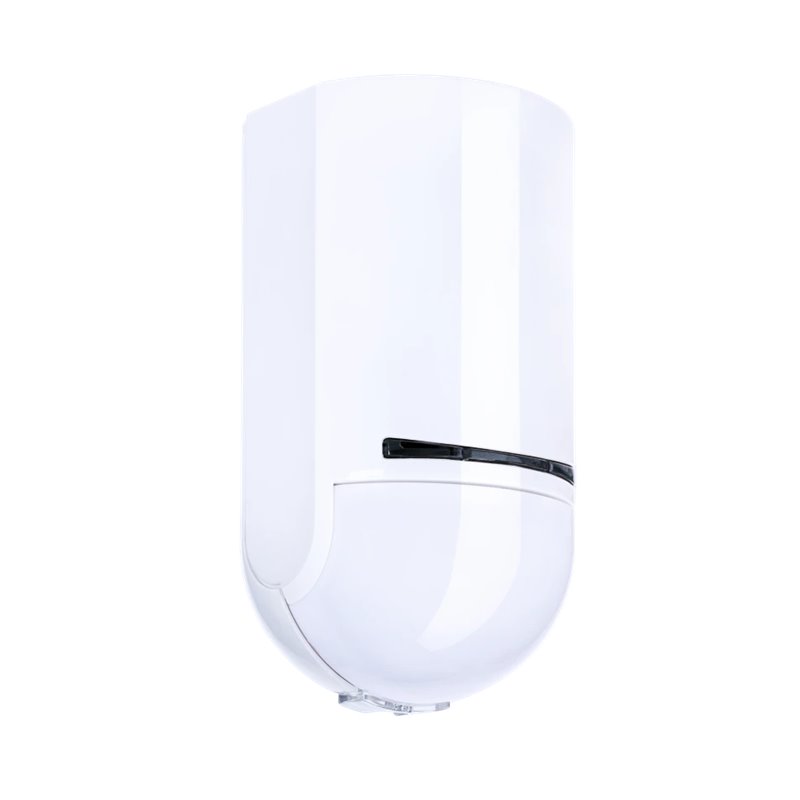

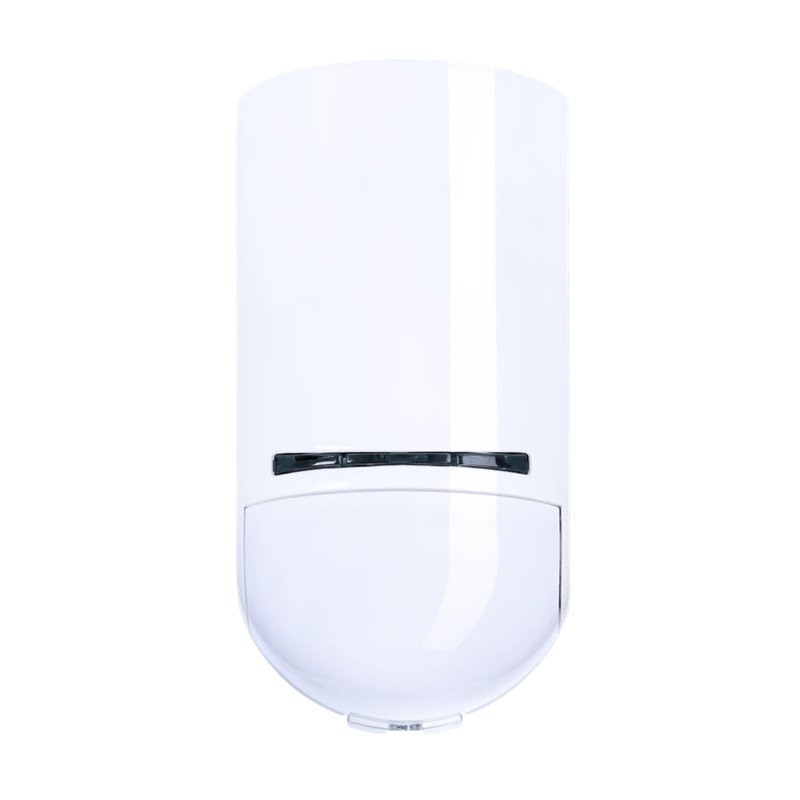

ABUS Secoris wireless motion detector PIR

PIR MOTION DETECTOR: EFFECTIVE ROOM MONITORING

Detects the body heat field of living beings using a PIR sensor
The wireless motion detector detects people in its detection area based on their moving body heat field. It uses a passive infrared light sensor (PIR) for this purpose. Unauthorised access is reported directly to the intruder alarm system. If required, the detector can be set to animal-immune to ignore pets under a defined size (weight class) and prevent false alarms.

Safe and reliable: close-meshed monitoring
With an aperture angle of approx. 90 degrees and a detection range of up to 10 metres, a single wireless motion detector monitors even large rooms almost completely. The spherical lens design ensures extremely reliable detection thanks to uniform room coverage. Thanks to integrated creep protection, the detector has no blind spots and also detects people directly below it.

Secure connection, long range
The wireless motion detector is taught into the Secoris wirelessly via the BUS wireless extension (BUMO60030). The connection is protected against manipulation by third parties using a secure, highly encrypted radio procedure. The transmission is AES128 encrypted (security level as in online banking) and protected against so-called replay attacks. The detector offers a high radio range of over 700 m (free field).

Efficient and low-maintenance
The passive detector has a very low power consumption and a battery life of up to 5 years.

Correct installation

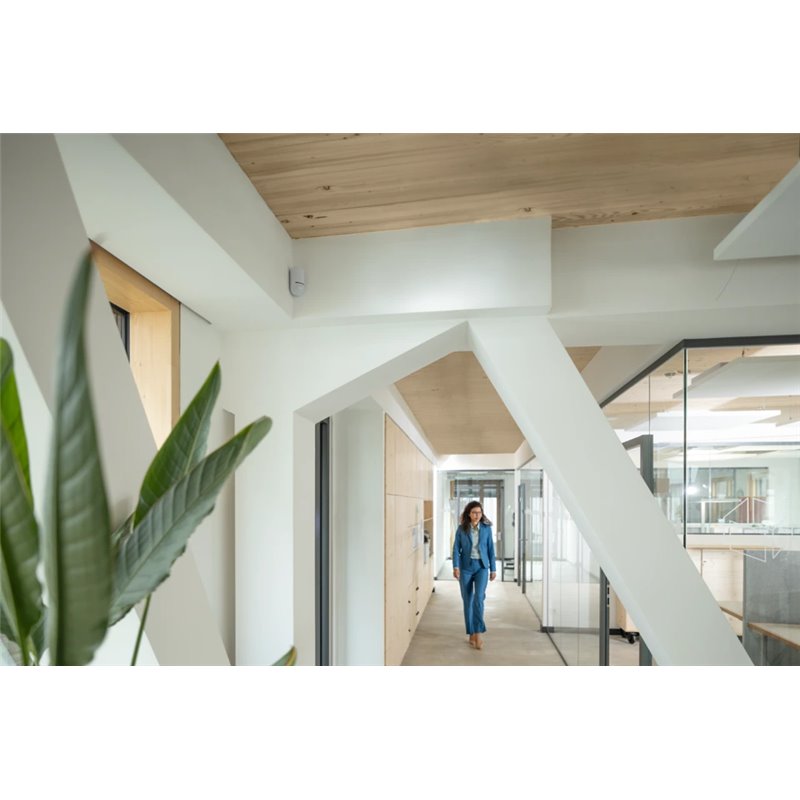

The optimum installation location is on the wall or in a corner, approx. 1.80 to 2.40 m above the floor. The expected direction of movement of an intruder should be at right angles to the detector. The viewing angle is approx. 90°, the detection range (depending on installation height) up to 10 x 10 m.

Special product features:

• PIR motion detector for indoor use (wireless)
• Detects people/animals based on their body heat and thermal movement using passive infrared sensor technology (animal-immune: pets can be faded out)
• Efficient room monitoring: detection area approx. 10 x 10 m; approx. 90° opening angle for corner installation
• Walk test and pet immunity can be configured on the alarm panel in Secoris wireless mode. In Secvest wireless mode directly on the detector.
• High level of security: uniform room coverage, creep protection and tamper monitoring (cover and wall tear-off contact)
• Pre-drilled holes for simple corner or wall mounting (wireless)
• Compatible with Secoris (BUMO60030) and Secvest (FUAA50000, FUA50500 and higher)
• Wireless connection in Secoris wireless mode AES128-encrypted and replay-protected
• Firmware OTA updateable (over-the-air remote maintenance)
• EN 50131 grade 2 certified

Technical data

• Height [mm]: 155
• Width [mm]: 55
• Areas of application: Interior
• Diameter [mm]: 55
• Certifications: EN 50131 Grade 2
• Dimensions [mm]: 55x115x55 (WxHxD)
• Battery - max. battery life [year(s)]: 5
• Battery - type: 1.5V AA (LR6)
• Gross weight [kg]: 0.15
• Detection method: Heat detection
• Adjustable sensitivity: pet immunity on/off
• Detection range detector (m) [m]: 10
• Housing material: ABS
• Max. Humidity [%]: 95
• Length [mm]: 55
• Modulation: 2FSK
• Mounting location: Wall
• Standard: EN 50131-2-2:2017, EN 50131-5-3:2017
• Net weight [kg]: 0.148
• Max. Receive range (free field) [m]: 700
• Max. Transmitting range (free field) [m]: 700
• Tamper monitoring: Yes
• Protection class IP: 34
• Sensor type: PIR
• Security level: 2
• Power supply DC [V]: 3
• Voltage monitoring: Yes
• Language manual: DE, EN; FR; NL; DK; IT
• Packaging language: DE, EN; FR; NL; DK; IT
• Status display: Yes
• Current consumption [mA]: 23
• Animal immune: Yes
• Environmental class: II
• Compatible with: Secvest, Secoris
• Alarm memory: No
• Radio power [mW]: 10
• Radio frequency [MHz]: 868.09
• Max. Operating temperature [°C]: 55
• Min. operating temperature [°C]: -10
• Colour: white
• Radio frequency 2 [MHz]: 868.23
• Radio frequency 3 [MHz]: 868.37
• Radio frequency 4 [MHz]: 868.51
• EN: Grade 2
• Standby current consumption [mA]: 0.035
• Mechanical protection: No
• Max. Transmission range (buildings) [m]: 30
• Max. Receive range (buildings) [m]: 30
• Battery quantity: 2
• Product group: Detector

Scope of delivery:

• 1x ABUS Secoris FUBW60100 Wireless motion detector PIR
• 1x Quick Guide
• 2x battery 1.5V AA (LR6)
