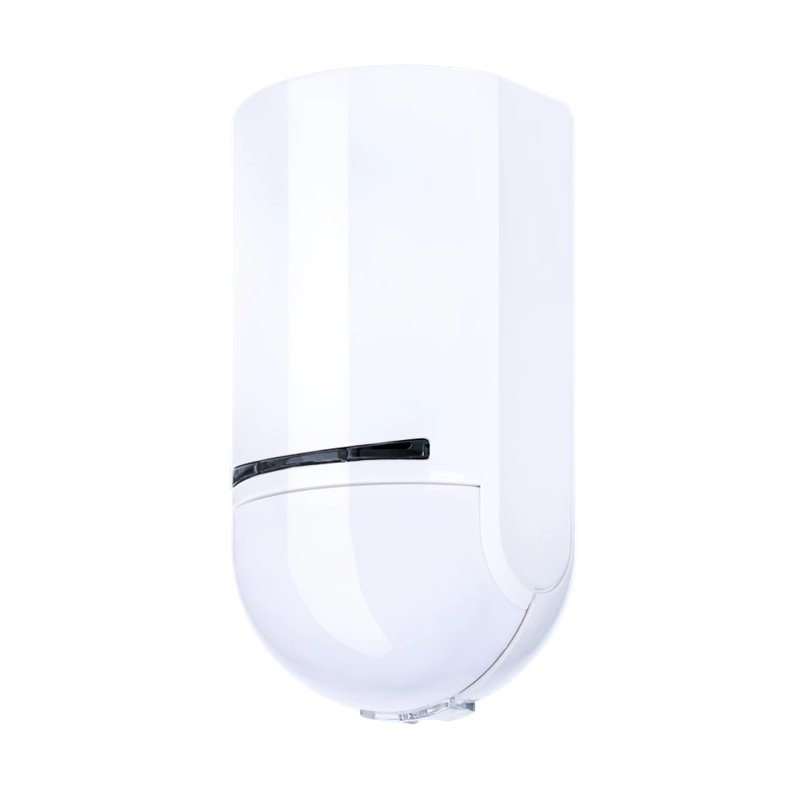

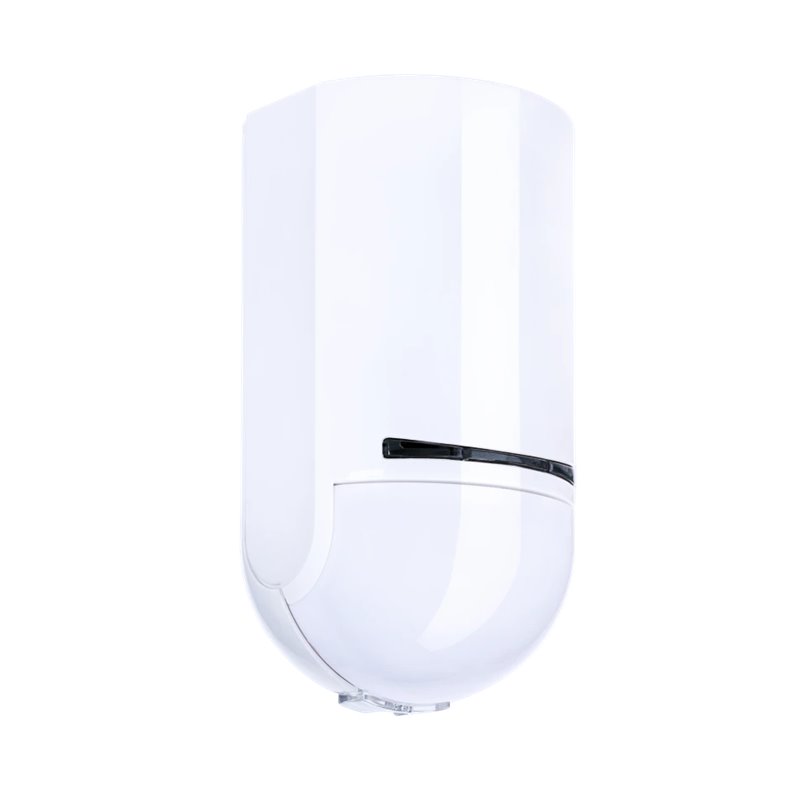

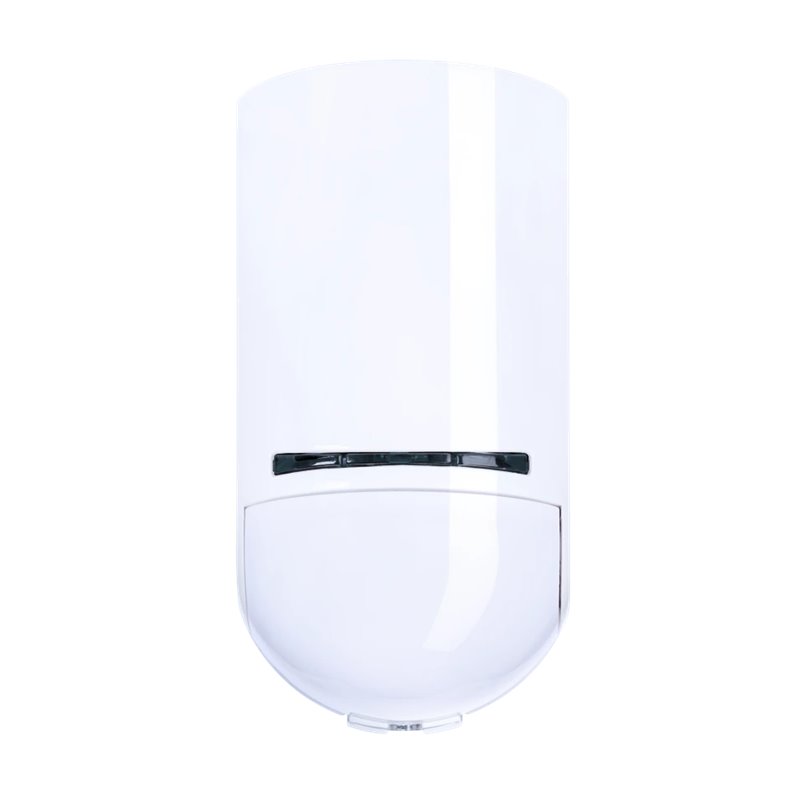

ABUS Secoris wireless motion detector PIR MW

DUAL MOTION DETECTOR: HIGH-PRECISION ROOM MONITORING

Detects the body heat field of living beings and movements in the room
The wireless motion detector detects people in the detection area based on their body heat field and changes in movement. It uses two independent detection methods to precisely detect movement: a passive infrared lens (PIR) and a microwave sensor (MW). Unauthorised access triggers an alarm if both methods detect movement (high false alarm protection). Optional: pet-immune operation (ignores pets under a defined size).

Secure and reliable: close-meshed monitoring
With an aperture angle of approx. 85 degrees and a detection range of up to 10 metres (depending on the installation height), a single wireless motion detector monitors even large rooms almost completely. The spherical lens design of the PIR sensor with uniform room coverage together with active radar monitoring (microwave) ensures absolutely reliable detection. Thanks to integrated creep protection, the detector has no blind spots.

Secure connection, long range
The wireless motion detector is taught into the Secoris wirelessly via the BUS wireless extension (BUMO60030). The connection is protected against manipulation by third parties using a secure, highly encrypted radio procedure. The transmission is AES128 encrypted (security level as in online banking) and protected against so-called replay attacks.

Flexible installation

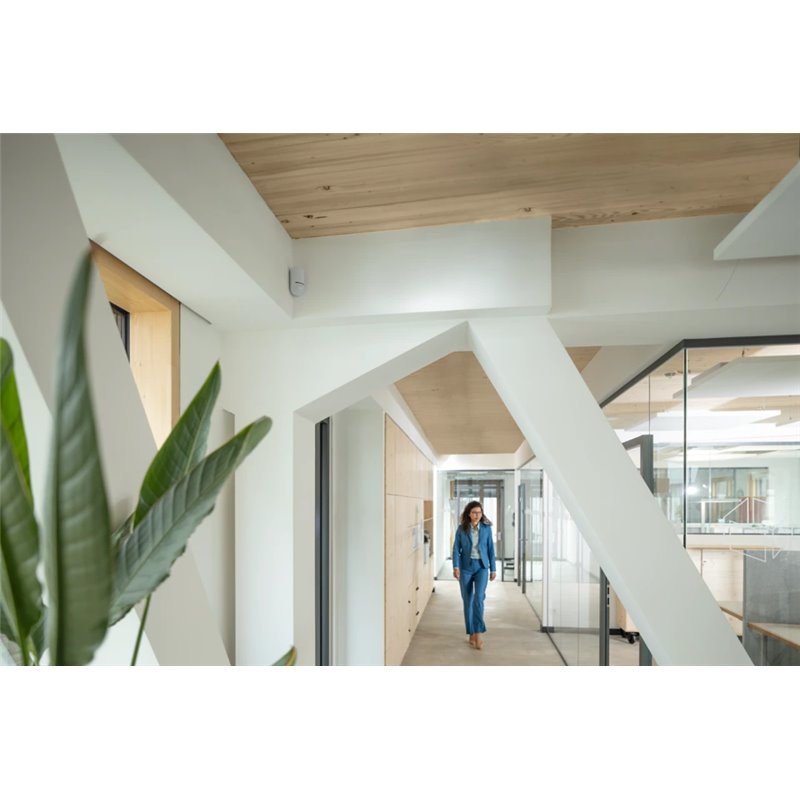

Thanks to the dual function with microwave sensor, the detector can be installed anywhere in the room. The optimum installation location is on the wall or in a corner, approx. 1.80 to 2.40 m above the floor.

Special product features:

• Dual motion detector PIR/MW for indoor use (wireless)
• Dual detector with passive infrared sensor (PIR) and microwave sensor (active monitoring) in one device (duplex detector)
• 2-fold room monitoring: detects intruders by body heat (PIR) and microwave detection, with a detection range of approx. 10 m and 85° opening angle (corner installation) - for maximum false alarm protection
• Walk test and pet immunity can be configured on the alarm panel in Secoris wireless mode. In Secvest wireless mode directly on the detector.
• High level of security: uniform room coverage, creep protection and tamper monitoring (cover and wall tear-off contact)
• Pre-drilled holes for simple corner or wall mounting (wireless)
• Compatible with Secoris (BUMO60030) and Secvest (FUAA50000, FUA50500 and higher)
• Wireless connection in Secoris wireless mode AES128-encrypted and replay-protected
• Firmware OTA updateable (over-the-air remote maintenance)
• EN 50131 grade 2 certified

Technical data

• Depth [mm]: 55
• Height [mm]: 115
• Width [mm]: 55
• Areas of application: Interior
• Diameter [mm]: 55
• Certifications: EN 50131 Grade 2
• Dimensions [mm]: 55x115x55 (WxHxD)
• Battery - max. battery life [year(s)]: 5
• Battery - type: 1.5V AA
• Gross weight [kg]: 0.194
• Detection method: Heat detection, microwave
• Detection range detector (m) [m]: 10
• Housing material: ABS
• Max. Humidity [%]: 95
• Length [mm]: 55
• Modulation: FM
• Mounting location: Wall
• Net weight [kg]: 0.17
• Max. Transmission range (free field) [m]: 700
• Tamper monitoring: Yes
• Sensor type: PIR, microwave
• Security level: 2
• Power supply DC [V]: 4.5
• Voltage monitoring: Yes
• Language manual: DE, EN; FR; NL; DK; IT
• Language of packaging: DE, EN; FR; NL; DK; IT
• Animal immune: < 25 kg
• Environmental class: II
• Compatible with: Secvest, Secoris
• Radio power [mW]: 10
• Radio frequency [MHz]: 868.09
• Max. Operating temperature [°C]: 55
• Min. operating temperature [°C]: -10
• Colour: white
• Radio frequency 2 [MHz]: 868.230
• Radio frequency 3 [MHz]: 868.37
• Radio frequency 4 [MHz]: 868.51
• EN: Grade 2
• Standby current consumption [mA]: 0.02
• Mechanical protection: No
• Max. Transmission range (building) [m]: 30
• Battery quantity: 3
• Product group: Detector
• PIR horizontal viewing angle [°]: 85

Scope of delivery:

• 1x ABUS Secoris FUBW60120 Wireless motion detector PIR MW 2.4 Ghz
• 1x Quick Guide
• 3x 1.5V AA battery
• 1x housing screw
• 3x jumpers
• 1x Safety instructions
