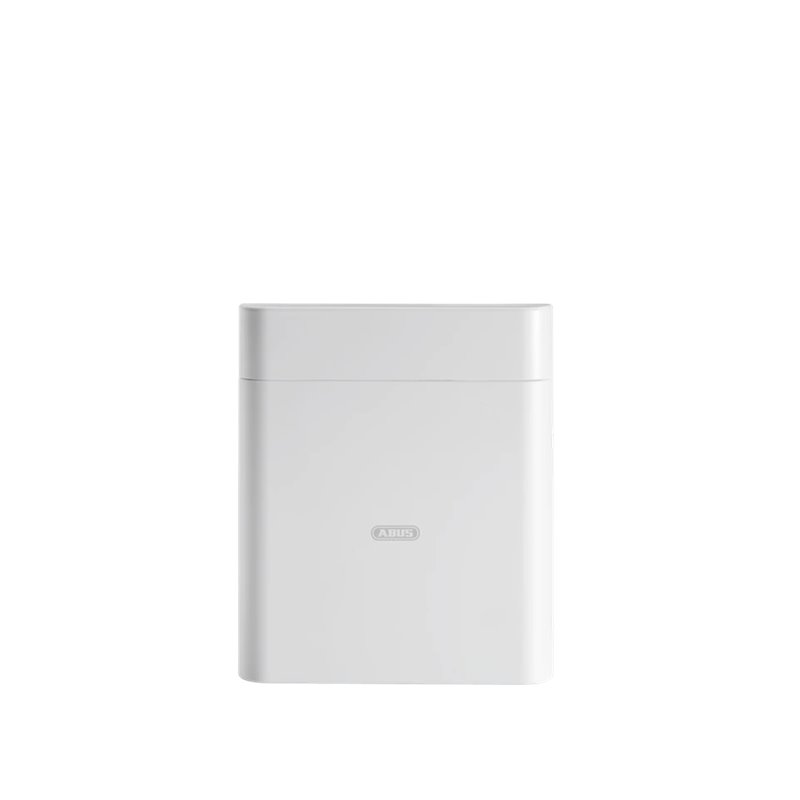

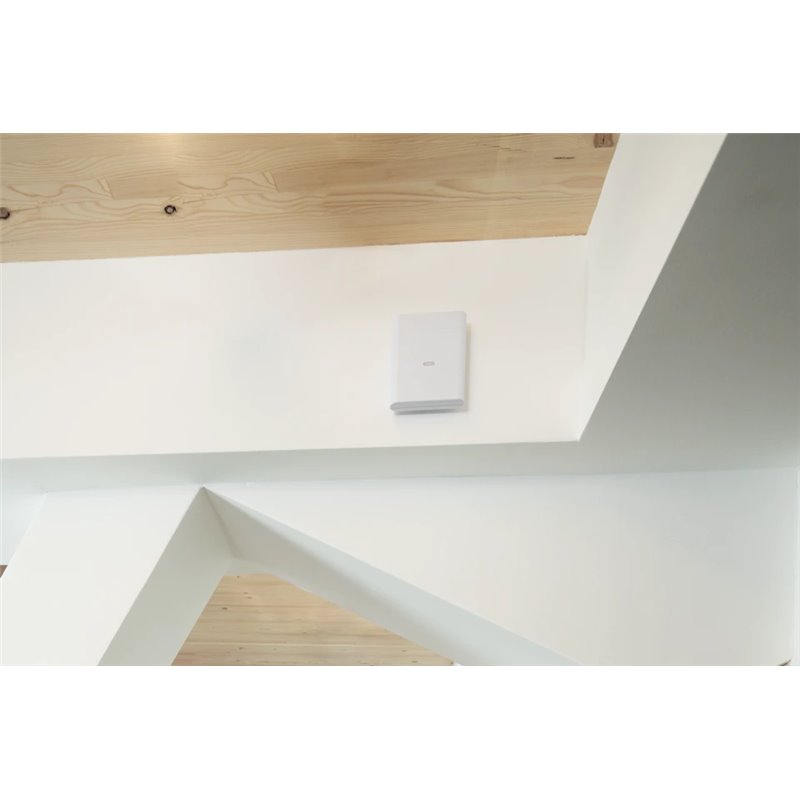

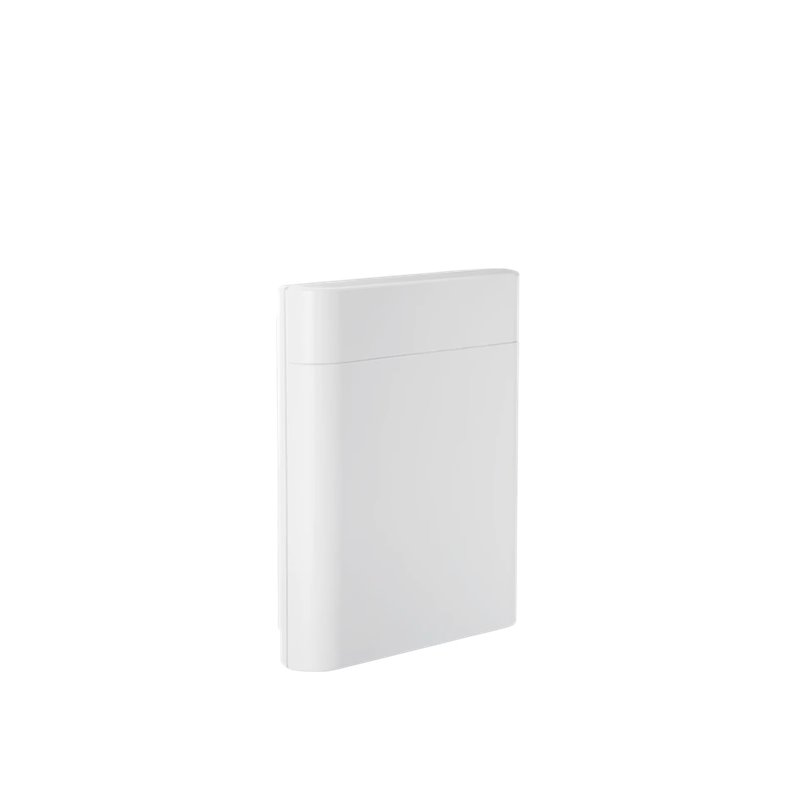

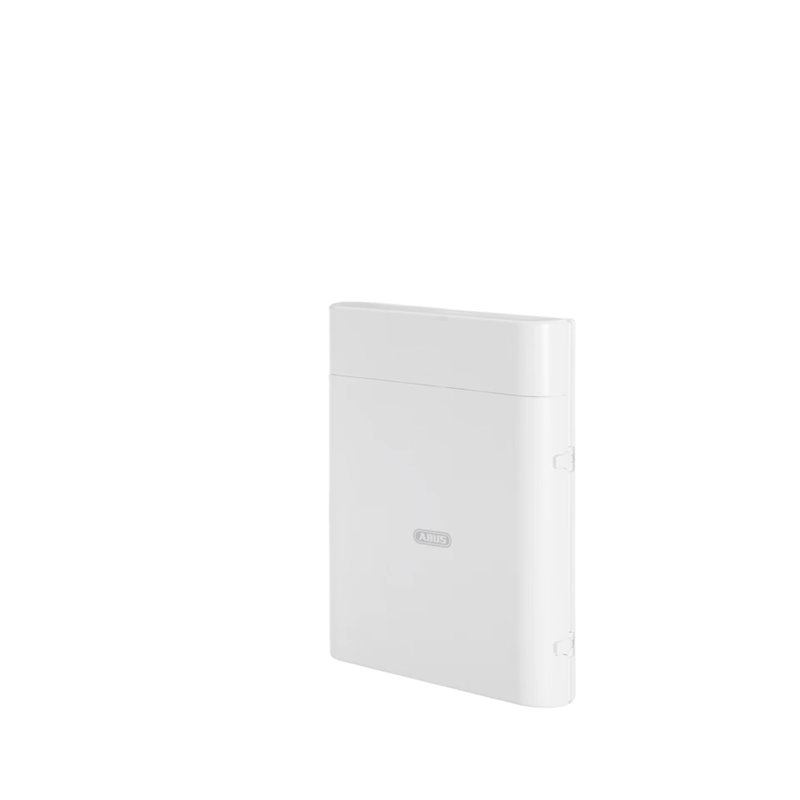

Secoris radio repeater (signal amplifier)

TRANSMITS STRONG RADIO SIGNALS

The Secoris wireless repeater is an optional add-on module for the hybrid-capable Secoris intruder alarm system. It is used when the range of one or more wireless components is not sufficient to bridge the distance to the Secoris wireless extension or other factors (e.g. building fabric) impair the wireless signal.

Optimum wireless range throughout the building
The wireless repeater extends the range of all Secoris wireless components to the Secoris wireless extension. Up to 10 wireless components can be integrated per repeater, 2 repeaters per wireless extension, i.e. a maximum of 20 wireless components per Secoris alarm system (IAS).

Convenient configuration, simple installation
The wireless components to be amplified are selected manually in the wireless extension menu and then automatically transmitted to the repeater. The wireless repeater is supplied with power by a 12 V power supply unit and has an emergency power buffer in the event of a power failure.

Extension module for the Secoris intruder alarm system
The wireless repeater is wirelessly taught into the Secoris intruder alarm control panel via the BUS wireless extension BUMO60030. It supports the secure Secoris wireless protocol, so the transmission is AES128 encrypted (security level as in online banking) and protected against so-called replay attacks.

Special product features:

• Additional module for increasing the range and signal amplification of Secoris wireless components
• Enables good wireless accessibility anywhere in the building
• Provides wireless access to rooms, parts of buildings and outdoor areas that would otherwise be unsuitable due to the long distance to the Secoris wireless extension or shielding building structure
• Amplifies the signal for a maximum of 10 Secoris wireless components
• Automatic transmission of the configured wireless components to the repeater
• Coloured LEDs for status display and display of signal strength (range)
• Wireless connection in Secoris wireless mode AES128-encrypted and replay-protected
• Firmware OTA updateable (over-the-air remote maintenance)
• EN 50131 grade 2 certified

Technical data

• Height [mm]: 155
• Width [mm]: 130
• Certifications: EN 50131 Grade 2
• Dimensions [mm]: (WxHxD) 130x155x42
• Connections: Voltage
• Display: 3 LEDs
• Type of inputs: Voltage
• Battery type: 1.5V AA alkaline
• Operation: via control centre
• Inputs: Power supply, USB
• Remote access: Signal strength of the components via radio
• Housing material: ABS
• Integrated siren: No
• Max. Humidity [%]: 94
• Length [mm]: 42
• Max. Emergency power runtime [h]: 25
• Modulation: FM
• Mounting location: Surface-mounted
• Net weight [kg]: 0.274
• Emergency power supply: Yes
• Max. Receive range (free field) [m]: 500
• Max. Transmitting range (free field) [m]: 500
• Tamper monitoring: Yes
• Protection class IP: 34
• Security level: 2
• Fuse: Yes
• Power supply DC [V]: 12
• Voltage monitoring: Yes
• Manual language: DE,EN,FR,NL,DK,IT
• OSD language: DE,EN,FR,NL,DK,IT
• Current consumption [mA]: 50
• Transmission path: Radio
• Environmental class: II
• Communication: Radio
• Compatible with: Secvest, Secoris
• Radio alarm bandwidth: 20 kHz
• Radio power [mW]: 10
• Encryption: Identification codes
• Radio frequency [MHz]: 868.6625
• Max. Operating temperature [°C]: 55
• Min. operating temperature [°C]: -10
• LAN network connection: No
• VdS class: None
• Mechanical protection: No
• Max. Transmission range (building) [m]: 30
• Max. Max. range receiving (building) [m]: 30
• Battery - GRS type: Alkaline
• Battery quantity: 2
• Software version: 1.3.2

Scope of delivery:

• 1x ABUS Secoris FUMO60010 wireless repeater (signal amplifier)
• 2x batteries
• 1x installation instructions
• 3x screw, wall plugs
• 2x cover housing screws
