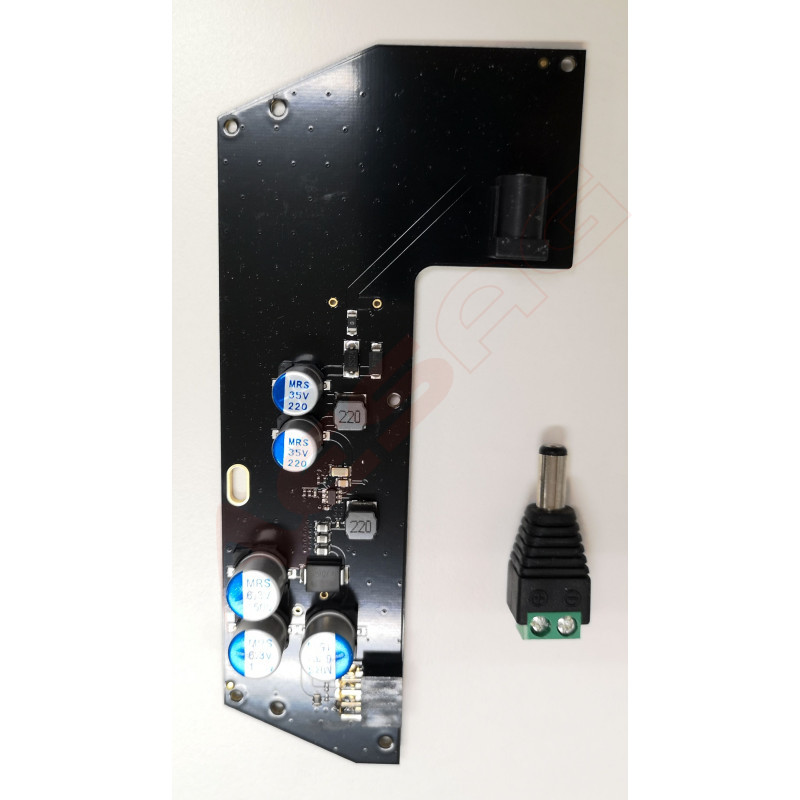

AJAX | 12VDC power supply for HUB, HUB PLUS & REX
AJAX power supply for converting the system to 12VDC (input voltage 8~20 VDC). This module must be installed in the HUB, HUB PLUS or REX and the module is only compatible with the AJAX HUB, HUB PLUS or REX.
AJAX | 12VDC power supply for HUB, HUB PLUS & REX
AJAX power supply for converting the system to 12VDC (input voltage 8~20 VDC). This module must be installed in the HUB, HUB PLUS or REX and the module is only compatible with the AJAX HUB, HUB PLUS or REX.
Key Features:
- Allows the AJAX HUB, HUB PLUS or REX to operate via 12VDC
- Input voltage variable from 8~20VDC
- easy installation
- Average consumption per hour only 95 mA
Technical data:
| brand | Ajax |
| compatibility | Ajax HUB, HUB PLUS or REX |
| Input voltage | 8~20VDC |
| Input current | 1 Maximum |
| Output current | 1.5A |
| Average consumption per hour | 95mA |
| Dimensions | 98 (H) x 70 (W) x 17 (L) mm |
The power consumption of the central unit depends mainly on the active communication modules — the average values are given in the table:
| Central unit | Active communication modules | Average input current |
| Hub | GSM | 42mA |
| Ethernet | 80mA | |
| GSM+Ethernet | 90mA | |
| Hub Plus | GSM | 35mA |
| Ethernet | 72mA | |
| GSM+Ethernet | 93mA | |
| Wi-Fi | 20mA | |
| Wi-Fi+GSM | 42mA | |
| Wi-Fi+Ethernet | 80mA | |
| WiFi+GSM+Ethernet | 96mA | |
| Hub 2 | GSM | 33mA |
| Ethernet | 80mA | |
| GSM+Ethernet | 86mA | |
| Hub 2 Plus | GSM | 146mA |
| Ethernet | 200mA | |
| GSM+Ethernet | 248mA | |
| Wi-Fi | 98mA | |
| Wi-Fi+GSM | 147mA | |
| Wi-Fi+Ethernet | 213mA | |
| WiFi+GSM+Ethernet | 285mA | |
| ReX | — | 20mA |
For example, if Hub 2 is connected to a 40 Ah battery, the operating time of the device (assuming it has an active GSM module) is approximately 1200 hours (40 Ah/0.033 A).
Scope of delivery:

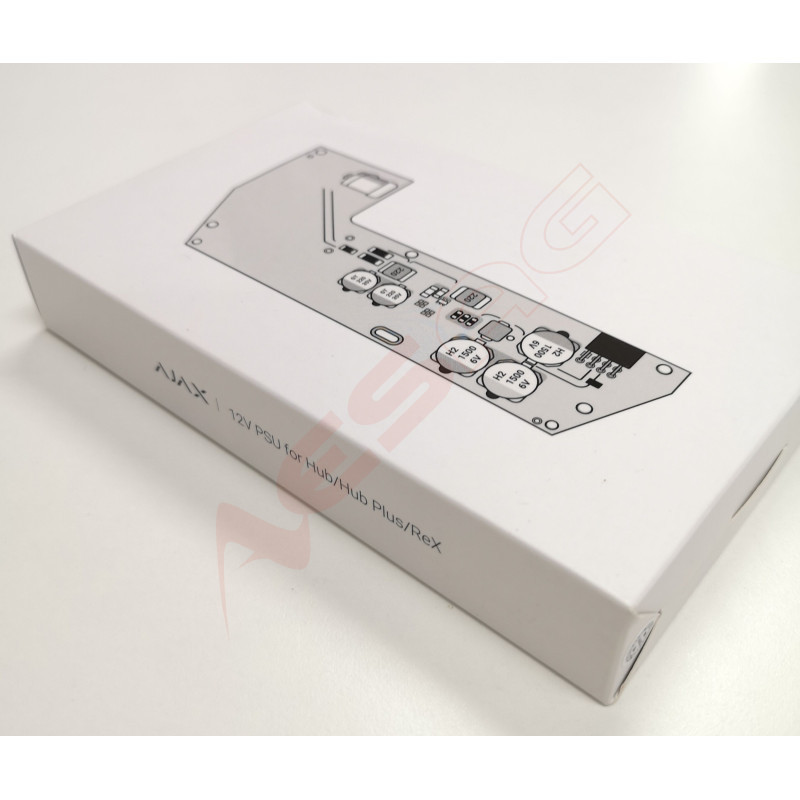

- 1x AJAX power supply 12VDC for HUB, HUB PLUS or REX
