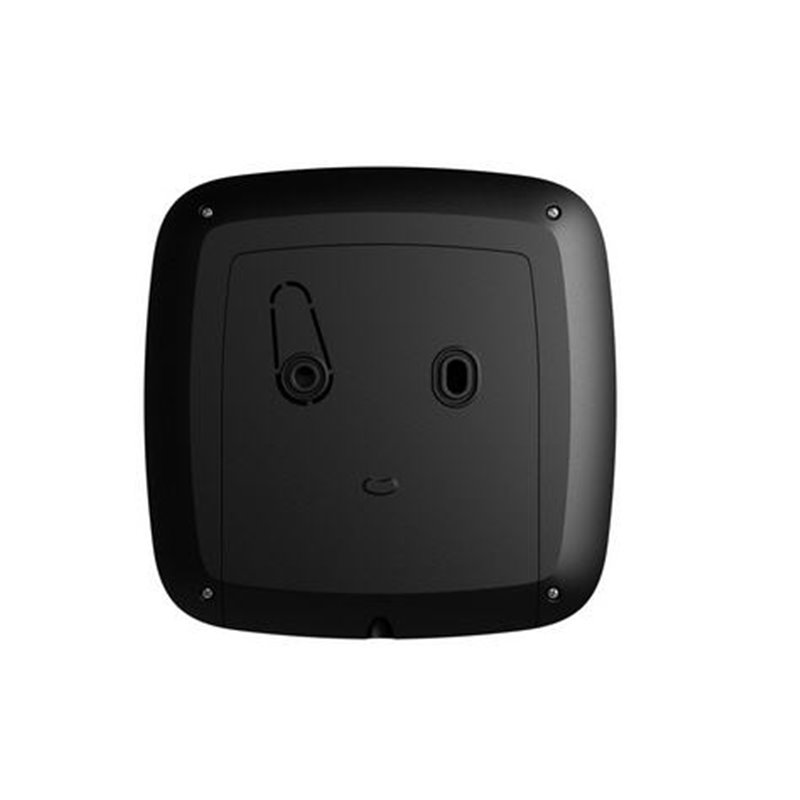

AJAX | SpeakerPhone - black
- Bidirectional audio communication
- Automatic adjustment of microphone sensitivity
- Adjustable volume
- SmartBracket mounting plate for quick installation
- Built-in LED display
- Integrated tamper contact
- over-the-air firmware updates
- Radio range: up to 1700 m
- Battery life: up to 3 years in standby mode (12 hours in talk mode)
- Connection to 12 V⎓ possible
AJAX | SpeakerPhone - black
Attention Compatibility: Only with Hub 2 (4G) Jeweller hubs (Hub 2 Plus not yet compatible)
SpeakerPhone Jeweller
Is a wireless voice module for two-way voice communication between a security service and a person physically located at the location where an Ajax system and SpeakerPhone are installed. The device enables the operator of the emergency call and service control center (ESC) to contact the object immediately after an alarm in order to analyze the situation and quickly respond to an emergency.
SpeakerPhone Jeweller
Communicates with a hub using three secure wireless protocols. The device uses Jeweller to transmit alarms and events, Wings to update firmware and VoRF to transmit audio. The communication range in open field is up to 1700 m.
Product features:
- Bidirectional audio communication
- audio processor with AI
- Automatic adjustment of microphone sensitivity
- Adjustable volume
- SmartBracket mounting plate for quick installation
- Built-in LED display
- Integrated tamper contact
- over-the-air firmware updates
- Radio range: up to 1700 m
- Battery life: up to 3 years in standby mode (12 hours in talk mode)
- Connection to 12 V⎓ possible
Technical data:
- Compatibility: Hub 2 (4G), Hub 2 Plus, Hub Hybrid (4G)
- Installation height: 1.6m
- VoRF's own audio streaming protocol
- Radio range: up to 1700m
- Radio frequency:
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
- Speech intelligibility: up to 10m
- Output speaker power: 3W
- Volume: up to 103 dB
- Power supply: Battery 4x CR123 (pre-installed)
- Battery life: up to 3 years in standby mode, up to 12 hours in talk mode
- Optional external power supply: 12V up to 1A (With external power supply, the batteries serve as backup)
- Color: black or white
- Dimensions: 112 x 112 x 41.5mm
- Operating temperature: 0°C to +40°C
- Operating humidity: up to 75%
- Protection class: IP50
Scope of delivery:
- 1x AJAX Speakerphone black
- 1x Smartbracket for quick installation
