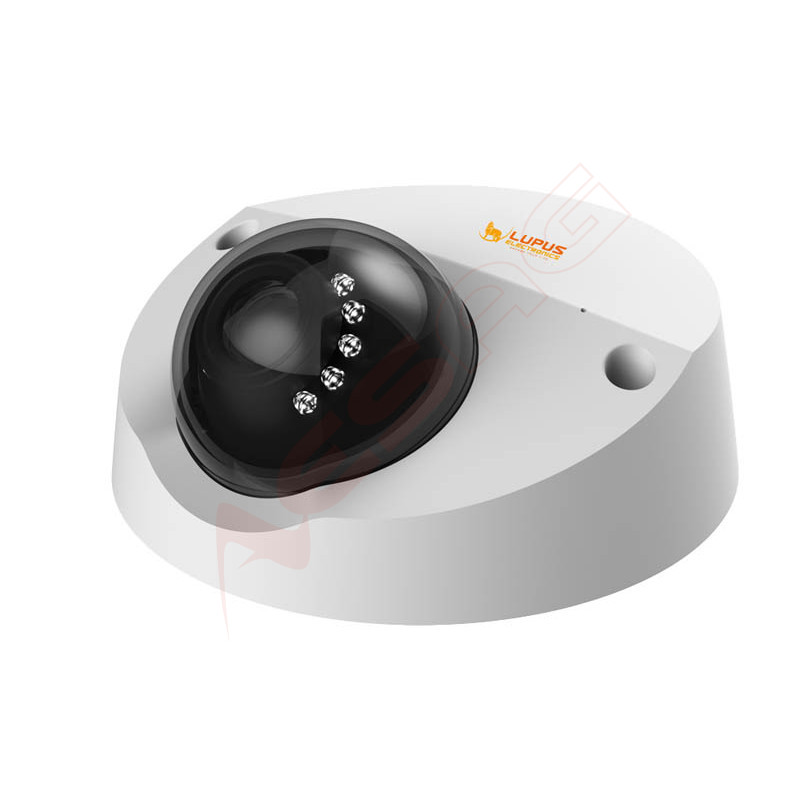

LUPUS - LE339HD GEODOME dome camera 1080p outdoor

Weatherproof, shockproof HD outdoor camera with night vision

The brand new GEODOME - LE339HD is the innovative HDTV indoor and outdoor dome from LUPUS-Electronics. The model, which is optimized for buses and trains as well as long corridors, allows the viewing angle on the ceiling to be adjusted up to horizontally. The integrated 2.4 megapixel sensor ensures excellent image properties, especially in poor and diffuse lighting conditions. A mechanical IR cut filter has been integrated, which can be individually adjusted to the local conditions. The GEODOME - LE 339HD is therefore particularly suitable for hotels, buses and trains.

Plug and Play - HD over existing CCTV cabling

The new HD video technology transmits up to 2 megapixels over the conventional CCTV infrastructure with coaxial cables. A cumbersome conversion to IP video surveillance with network cables is therefore unnecessary and saves enormous costs. In contrast to network camera technology, the video images are transmitted uncompressed and in real time.

Product Highlights:

• FullHD HDTV surveillance camera (1920x1080 pixels)
• 3.6mm lens with 88° viewing angle
• 20 meters night vision
• Weatherproof and impact resistant (IP66)
• Cabling via coaxial cable (RG59)

Technical data:

• Image sensor: 1/2.8" (9mm) 2.4 megapixel CMOS sensor
• Effective image resolution: 1984(H) x 1225(V)
• Output resolution: 1920 x 1080 pixels (lHD)
• Electronic shutter: 1/3s~1/100,000s
• Minimum illumination: 0.05Lux@F1.2(AGC ON)
• OSD Menu: Yes
• Internal mount: M12
• Digital image enhancement methods: Day/Night(ICR), AWB, AGC, BLC
• Synchronization: Internal
• Video output: 1 channel BNC HD, high resolution video output
• Video frame rate: 25/30/50/60fps@720P; 25/30fps@1080P
• Alarm connections: -
• Audio connections: Built-in microphone
• Power supply: DC12V (+-10%)
• Power consumption: Max. 3.3W
• Operating environment: -30°C to +60°C
• Transmission range: approx. 500 meters via RG59 coaxial cable
• Housing material: metal

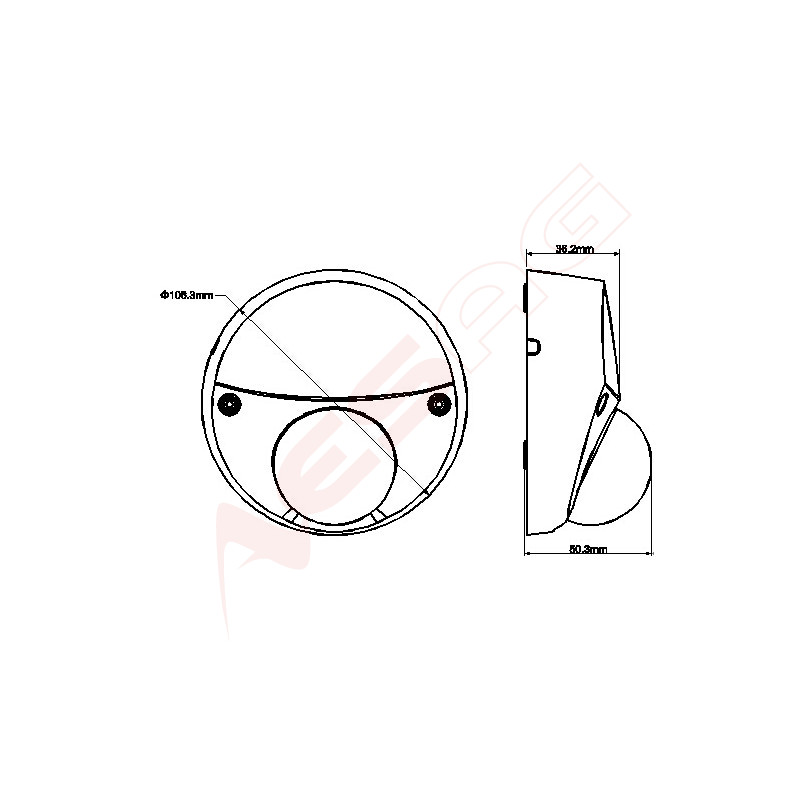

• Dimensions: Ø 106.3mm x 50.3mm
• Weight: 0.3kg
• Protection class: IP67 and IK10

Camera functions

• Max. night vision range: 20m
• Day/night function: Automatic IR cut filter
• Image enhancements: 2D/3D
• OSD Menu: Yes

lens

• Focal length: 3.6mm fixed lens
• Viewing angle: 88°
• Lens type: DC Auto Iris lens

Scope of delivery:

• 1x LUPUSNIGHT® - LE 339HD dome camera FULL HD IR 1080p IP67 IK10 outdoor
• 1x 12V power supply included
• 1x User Manual
• 1x screw set with dowels
• 1x drilling template
