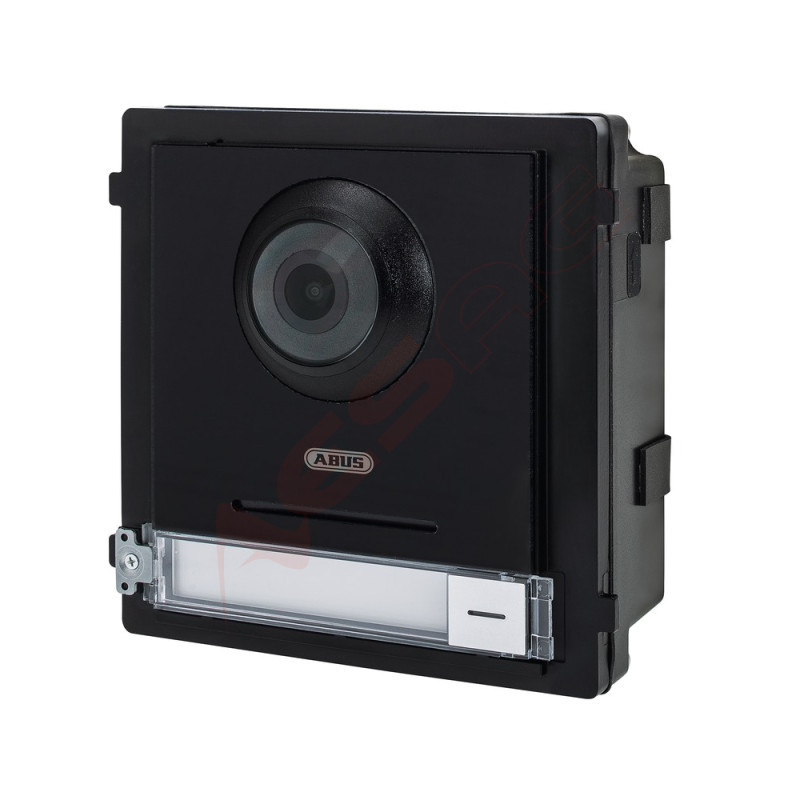

ABUS 2-wire video module door intercom

TOTALLY MODULAR: THE VIDEO DOOR INTERCOM SYSTEM
See people at the door, talk to them, open the door. Easy to install, modular and adaptable to any building – and the individual needs of the users.

The optimal video intercom
The video module is the central control unit of the ModuVis system. With a camera, microphone and loudspeaker for intercom and a bell button, it forms the basic configuration for a call station with 1 bell. It transmits the voice clearly, distinctly and without distortion. The integrated 2 megapixel camera oversees the entrance area when a bell rings - day and night thanks to IR LEDs. An electronic door opener (door buzzer) is connected to the relay input/output.

Comfortable operation: monitor or app
The user operates the ModuVis system (video module, other modules) on the 7” monitor or on the smartphone/tablet via the ABUS Link Station app.

2-wire installation
Communication between the 2-wire video module TVHS20010, monitor and other modules takes place via a 2-wire distributor (converter unit). IP/PoE variant: see TVHS20000.

Totally modular, extensively expandable
A clear advantage: Depending on the number of apartments and local requirements, additional modules can simply be added to the system. This means that up to 49 doorbells are possible - and one monitor is integrated for each apartment. The added security: Up to 16 IP cameras can be integrated for video surveillance. Whichever variant of video module and monitor (2-wire or IP/PoE/WLAN) is chosen - the systems are compatible with each other.

Product features:

• 2-wire video module for door intercom system ModuVis
• Central control unit of the door intercom system (mandatory for every 2-wire installation)
• 2 MPx day/night camera with 180° viewing angle
• Push alert on mobile device via ABUS Link Station app
• High-resolution microphone and speaker
• Backlit bell buttons
• Audio, video and voltage via 2-wire
• Additional relay inputs/outputs e.g. door opener
• Tamper contacts on the back
• Weatherproof IP65

Technical data:

• Article number: TVHS20010
• EAN No.: 4043158172270
• Packaging dimensions LxWxH: 160x155x80 mm
• Dimensions: 98 × 99.8 × 43.9 mm
• Alarm output: 2 (2A@30VDC / 0.5A@125AC)
• Alarm output (NO/NC): 4
• Connectable devices: TVHS20020, TVHS20030, TVHS20040, TVHS10040
• Connections: 1 x DC/Audio/Video, 4 x alarm input, 2 x alarm output
• Display: 2-Way Audio
• Audio: Built-in microphone and speaker
• Resolution: 2 MPx
• Resolution modes: Stream 1: 1,920 x 1,080 @ 25 fps, Stream 2: 720 x 480 @ 25 fps
• Image optimization: BLC, DNR, WDR
• Horizontal viewing angle: 180 °
• Vertical viewing angle: 96 °
• Width: 98mm
• Height: 99.8mm
• IR LEDs: Yes
• Speakers: yes
• Power consumption: 10 W
• Length: 43.9mm
• Max. resolution @ frame rate: 1,920 x 1,080 @ 25 fps
• Max. operating temperature: 60 °C
• Max. humidity: 0.95%
• Microphone: Yes
• Min. operating temperature: -40 °C
• Network camera protocols: TCP/IP, RTSP
• Lens: Fixed
• Tamper monitoring: Yes
• Protection class IP: 65
• Power supply DC: 12 (+/-10 %) V
• Video compression: Stream 1: H.264, Stream 2: H.264

Scope of delivery:

• 1x ABUS TVHS20010 2-wire video module for door intercom
• 1x Quick guide
• 1x Safety instructions
