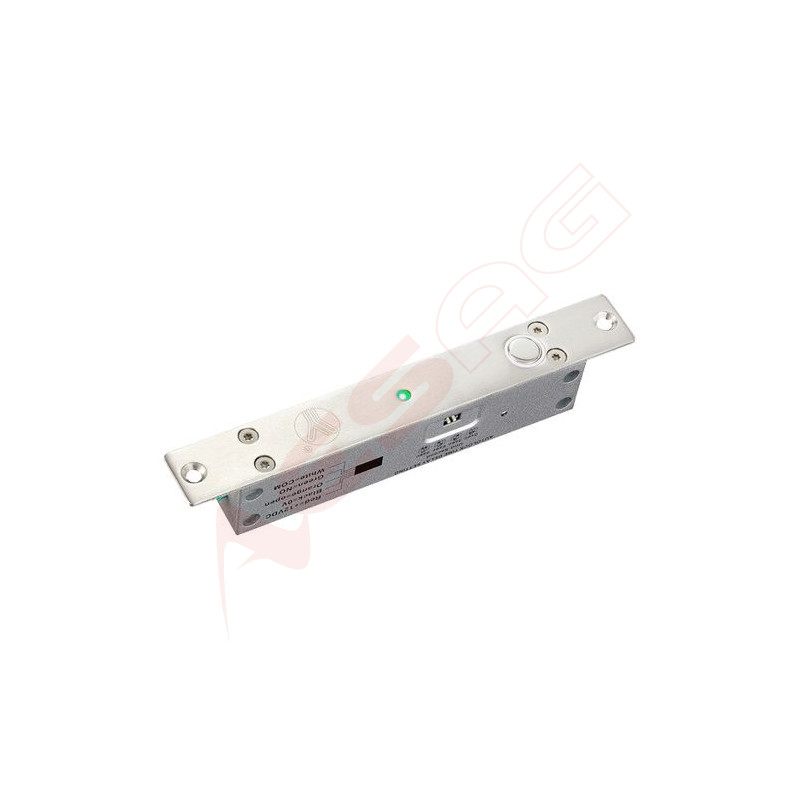

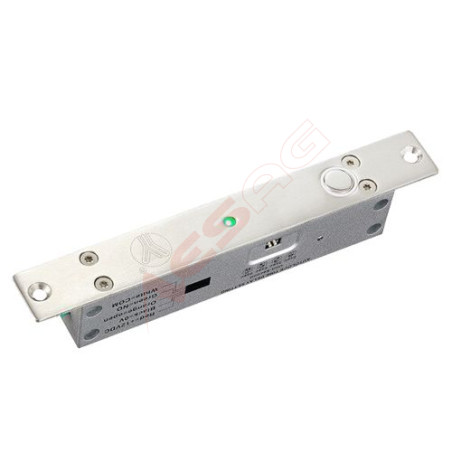

Electromechanical security lock / 1000Kg / 12VDC
- Electromechanical security lock
- Fail Safe (NC) opening type
- Holding force 1000 kg
- Door status sensor
- Programmable self-closing
- Selectable opening time
Electromechanical security lock / 1000Kg / 12VDC
- Electromechanical security lock
- Fail Safe (NC) opening type
- Holding force 1000 kg
- Door status sensor
- Programmable self-closing
- Selectable opening time
- Piston electromechanical security lock (bolt)
- NO Normally Closed (Fail Safe)
- Timer with delay of 0/3/6/9 seconds
- Signal - door open
- Applicable in fire extinguishing systems
- Installation on wooden, metal, glass and fire doors
- 12VDC
- Made of aluminum
| Assembly | Built-in |
| Opening mode | Fail Secure (NC) |
| Closing delay time | 0,3,6 and 9 seconds |
| Retention force | 1000kg |
| Power supply | DC 12 V / 960/180 mA start/standby |
| Opening sensor | LED display, door alarm output, integrated in socket |
| Entry profile | Narrow of 25 mm |
| Dimensions of the plate | 37 (L) x 192 (H) x 25 (W) mm |
| Socket dimensions | 90 (L) x 2 (H) x 25 (W) mm |
| Weight | 680g |
| temperature | -40ºC ~ +60ºC |
