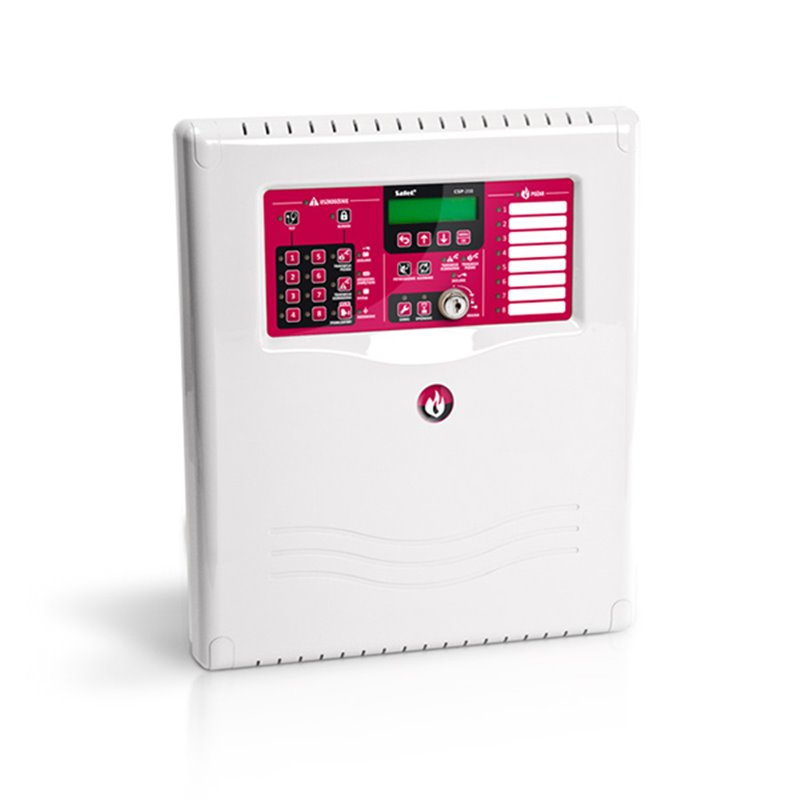

Satel fire alarm control panel 8 lines with LCD

The CSP 200 Series control panels are conventional fire alarm control panels compliant with the EN54 standard. They are suitable for simple systems in both small and medium-sized buildings. The LCD display facilitates both day-to-day system operation and installation and maintenance. A key advantage of SATEL control panels is their ease of installation and built-in 12V battery backup.

Product features:

• 8 detector groups
• LCD display for easy operation and parameterization of the system
• Support for the fire service control panel and the virtual control panel (via the CSP–ETH module)
• 4 control inputs programmable by the installer
• 8 relay outputs programmable by the installer
• Support of transmission devices for fire and fault reports
• integrated power supply with 12 V battery and AUX and 24 V power supply outputs

Technical data:

• Operating temperature: -5…+40 °C
• Max. humidity: 93±3%
• Dimensions: 324 x 382 x 108 mm
• Transport temperature: -25….+55 °C
• Mains supply from the mains with voltage: 230 V AC +10%, -15% 50 Hz
• Max. mains power supply: 500 mA
• Emergency power supply time: 72 h
• Max. battery charging current: 1.4 A
• Max. internal resistance of the battery (with leads and terminals in the circuit): 1 Ohm
• Current consumption from the battery in standby mode: 100 mA
• Current consumption from the battery in alarm mode: 170 mA
• Current consumption from the integrated AC power supply in standby mode: 80 mA
• Current consumption from the integrated AC power supply in alarm mode: 140 mA
• Housing protection class: IP30
• Weight without battery: < 3 kg
• Event memory: 8999
• Alarm memory: 9999
• Watch battery: 3 V (CR2032)
• Output for communication with the computer (service): Yes
• Termination resistor at the data bus terminals: 100 Ohm
• Output for communication with the control panel and CSP-ETH module: Yes
• Power supply output +24V: 24 V DC +/-15% / 200 mA max.
• Power supply output AUX (for connecting the CSP-ETH module) in normal operation: 18 V DC +5%, -15%
• Terminating resistor in the control input circuit: 1 kOhm +/- 5%
• Alarm resistance in the control input circuit: 10 kOhm +/-5%
• Number of programmable control inputs: 8
• Electrical parameters of the relay outputs: 1A / 30 V DC (NO or NC)
• Number of detector groups: 8
• Max. resistance of the detector group: 100 Ohm (2 x 50 Ohm)
• Max. number of automatic detectors in a detector group: 32
• Max. number of manual call points in a detector group: 10
• Terminating resistance in the detector group: 5.6 k Ohm +/- 5%
• Max. quiescent current in the detector group: 10 mA
• Max. current in the detector group in alarm mode: 40 mA
• Current limit in the detector group: 54 mA
• Max. resistance of the signaling, alarm and fault transmission lines: 75 Ohm (2 x 37.5 Ohm)
• Number of external signaling lines: 2
• Operating voltage of the signaling line: 24 V DC +/-15%
• Permissible current of the signaling line: 180 mA
• Termination resistance in the signal generator line: 10 kOhm +/-5%
• Number of alarm transmission lines: 1
• Operating voltage of the alarm transmission lines: 24 V DC +/-15%
• Permissible current of the alarm transmission lines: 180 mA
• Termination resistance in the alarm transmission lines: 10 kOhm +/-5%
• Number of lines of interference transmission: 1
• Operating voltage of the interference transmission lines: 24 V DC +/-15%
• Permissible current of the interference transmission lines: 180 mA
• Termination resistance in the lines of interference transmission: 10 kOhm +/-5%
• Number of programmable relay outputs: 4
• Emergency power supply: integrated lead-gel battery: 12 V / 17 Ah
• Emergency power supply: external lead-gel battery: 12 V / =24 Ah
• Power supply output AUX (for connecting the CSP-ETH module): in case of AC supply failure: 12 V DC +15%, -20%

Scope of delivery:

• 1x Satel CSP-208 fire alarm panel
