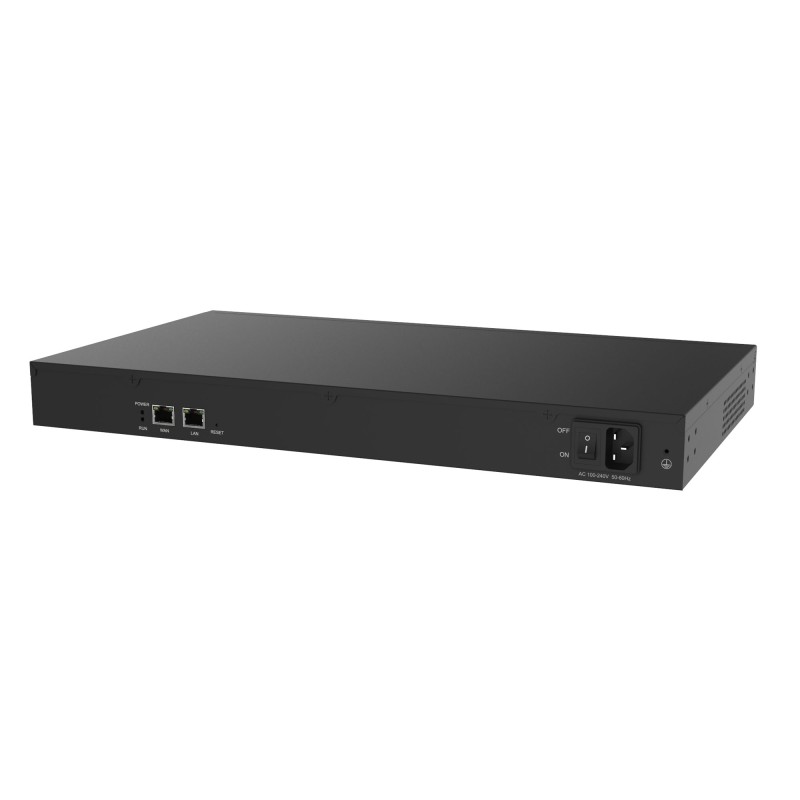

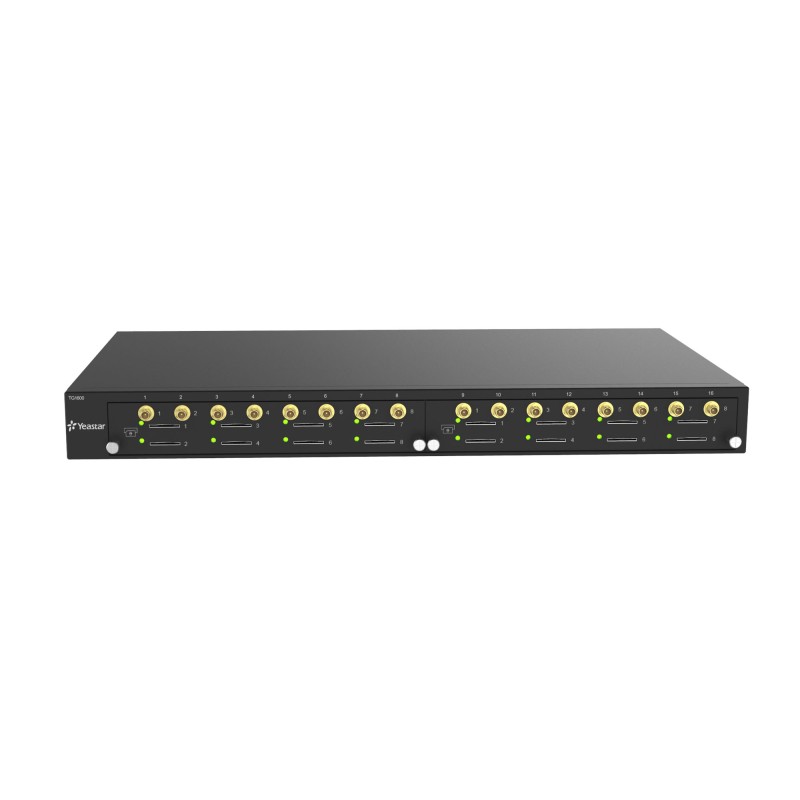

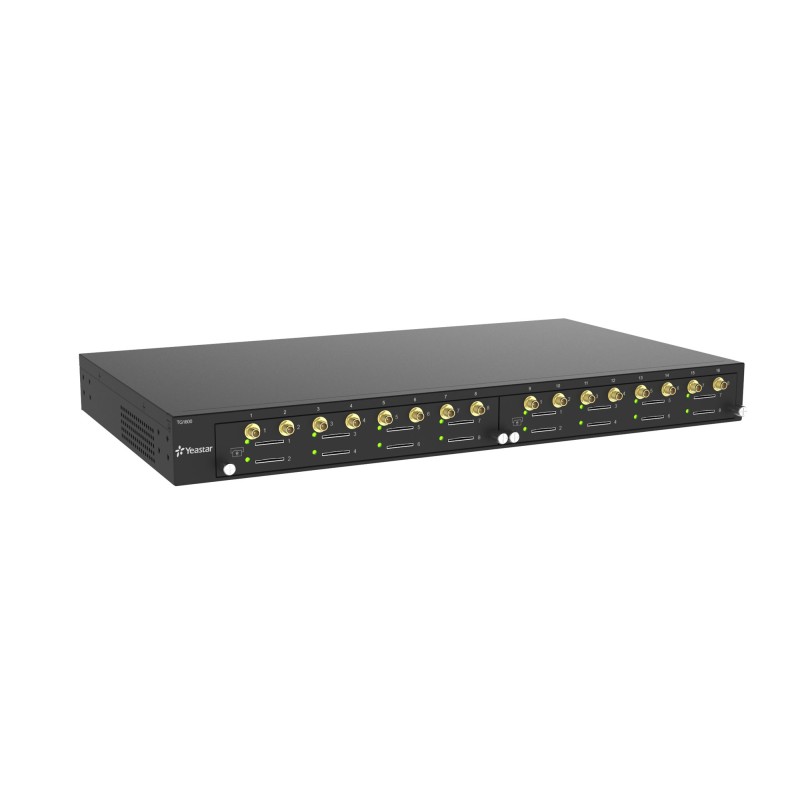

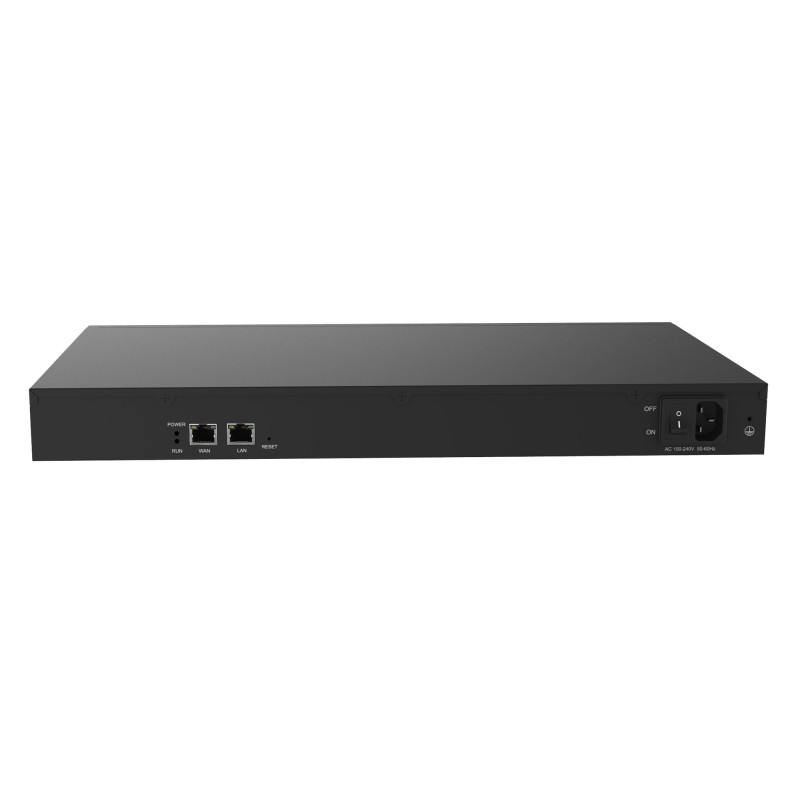

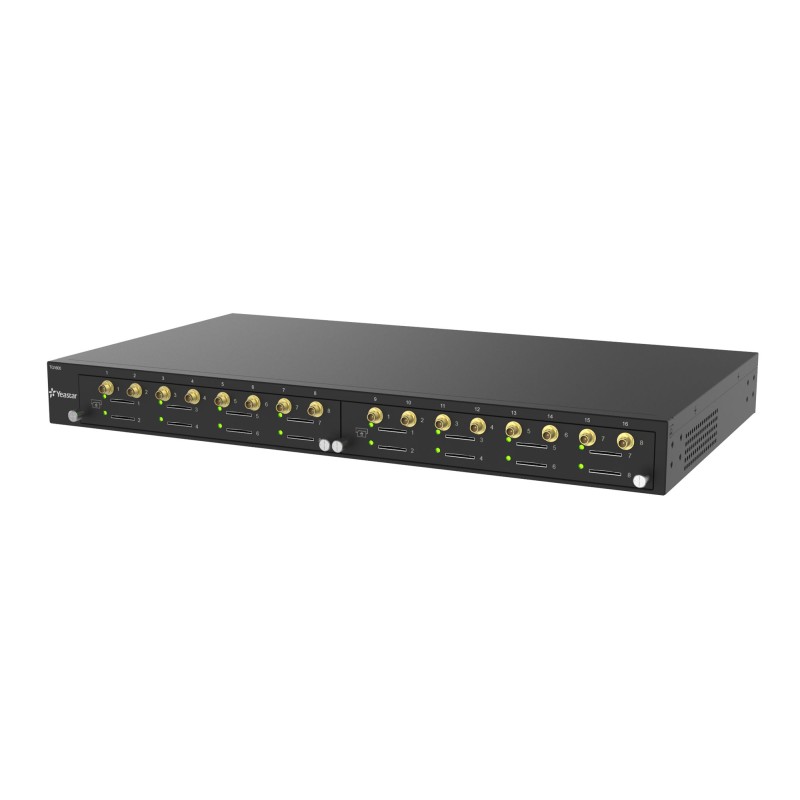

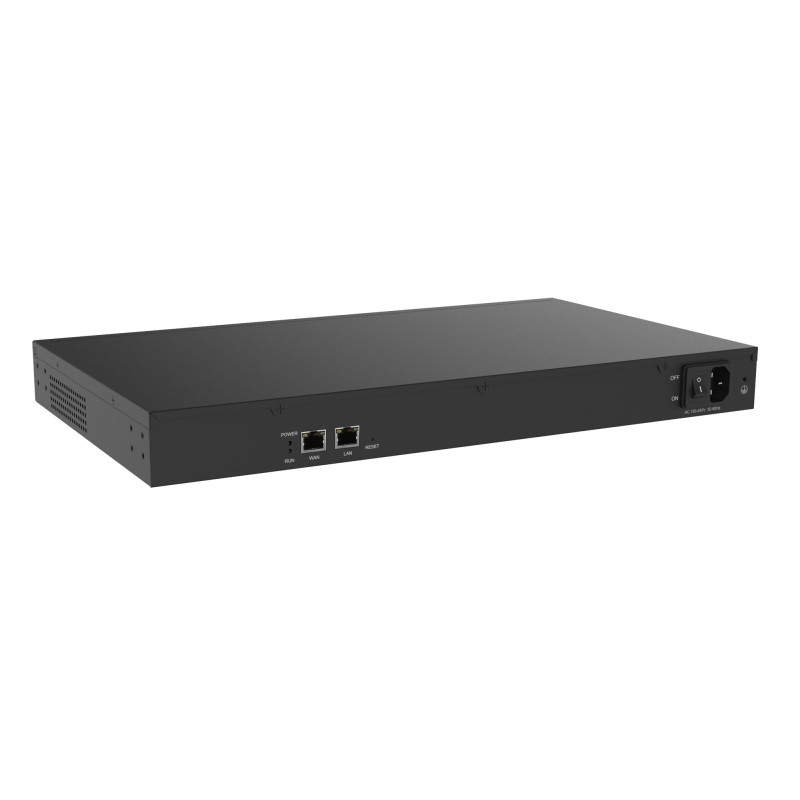

Yeastar GSM-Gateway TG1600 16x Kanal
Yeastar GSM-Gateway TG1600 16x Kanal
Highlights
The Yeastar TG series connects GSM/3G/4G networks directly to VoIP networks and enables bidirectional communication: GSM/3G/4G to VoIP and VoIP to GSM/3G/4G. The TG series is the best available solution for connecting IP-based PBXs and provides a softswitch connection to a GSM/3G4G network. It is also the best fallback solution if the landline connection fails.
- Connecting PBX systems to GSM or 3G WCDMA or 4G LTE networks
- Send and receive SMS messages via web interface, supports bulk SMS
- Save significant telephone costs with mobile-to-mobile calls and SIP trunks
- Everything can be set up effortlessly in the web-based administration
- Cost-effective reserve if the landline fails
- Easy to integrate: high compatibility with established IPPBX and softswitch
Technical specifications
| Models* | TG100 | TG200 | TG400 | TG800 | TG1600 | |
| Number of ports | 1 | 2 | 4 | 8th | 16 | |
| GSM Frequency** | 850/900/1800/1900MHz | |||||
| WCDMA Frequency** | 850/1900MHz, 850/2100MHz, 900/2100MHz | |||||
| 4G Data | – | |||||
| 4G LTE band** | Do not support 4G LTE | Depending on the module type. Check the supported bands and operators. | Do not support 4G LTE | |||
| Protocol | SIP, IAX2 | |||||
| Antenna Splitter (4 in 1) | – | Support | ||||
| transport | UDP, TCP, TLS, SRTP | |||||
| Voice Codec | G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex | |||||
| DTMF Mode | RFC2833, SIP Info, In-band | |||||
| Echo Cancellation | ITU-T G.168 LEC | |||||
| Calling Type | Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP) | |||||
| Network Protocol | FTP, TFTP, HTTP, SSH | |||||
| LAN | 1 10/100 Mbps Ethernet interface | 2 10/100 Mbps Ethernet interfaces | ||||
| NAT Traversal | Static NAT, STUN | |||||
| Network | DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN | |||||
| Operation Range | 0°C to 40°C, 32°F to 104°F | |||||
| Power Supply | DC12V, 1A | AC100-240V | ||||
| Storage Range | -20°C to 65°C, -4°F to 149°F | |||||
| Dimensions (L × W × H) (mm) | 110x70x24 | 213x160x44 | 340x210x44 | 440x250x44 | ||
| Humidity | 10-90% non-condensing | |||||
*You can order either GSM or 3G or 4G channel. TG100 and TG1600 do not support 4G LTE.
**Click here to check the frequencies/bands and mobile operators supported by TG GSM VoIP Gateway.
