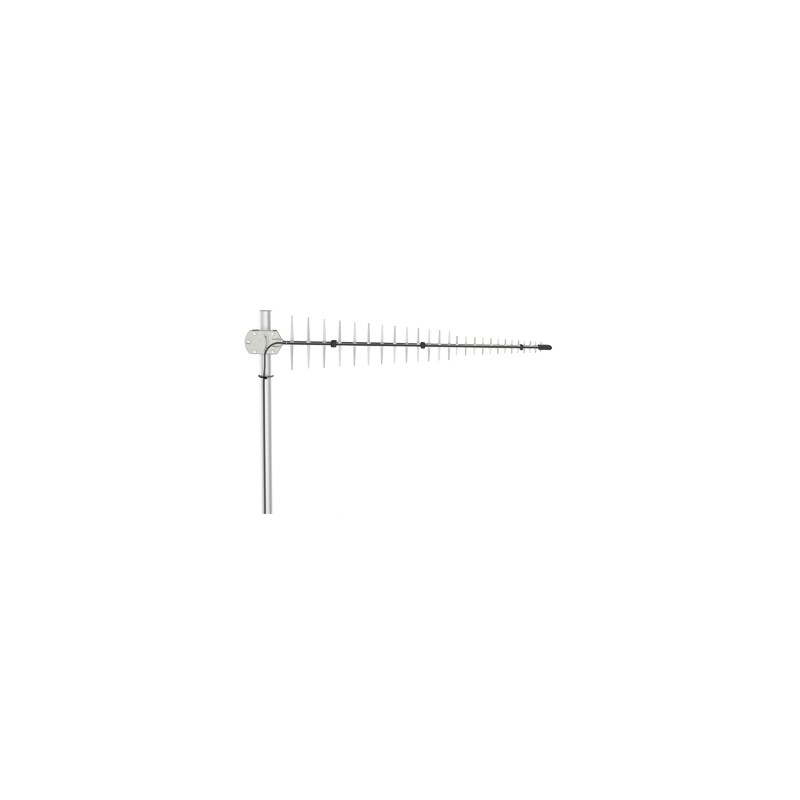

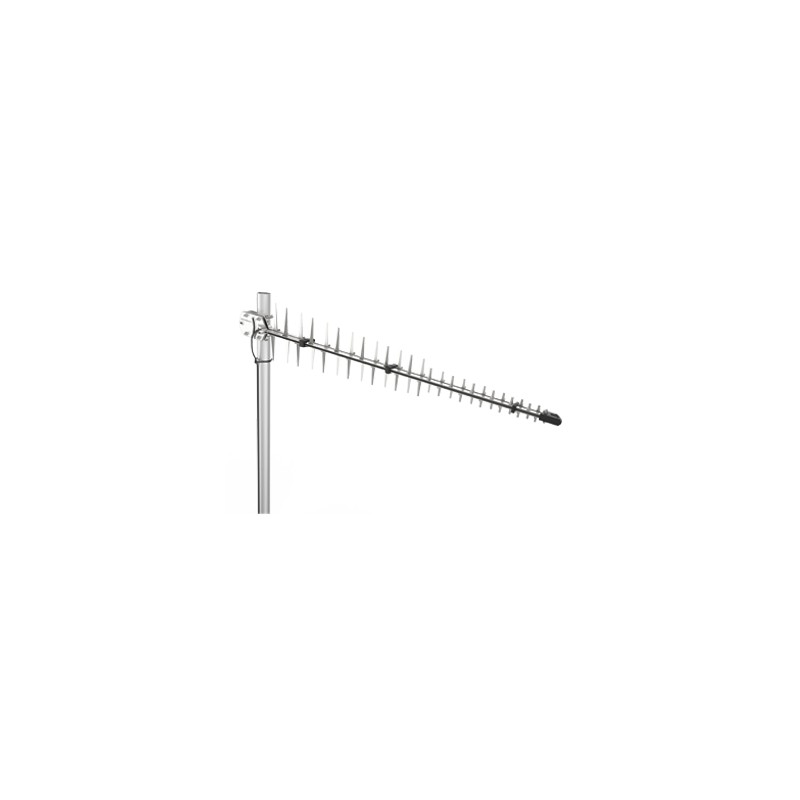

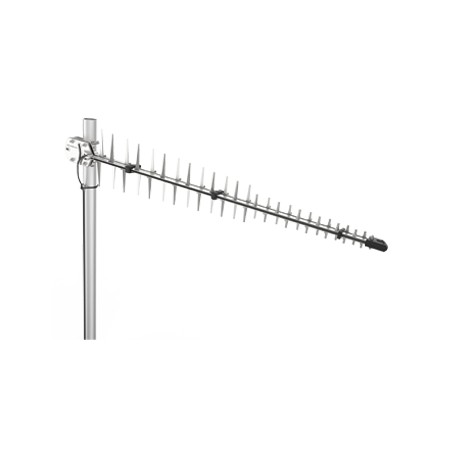

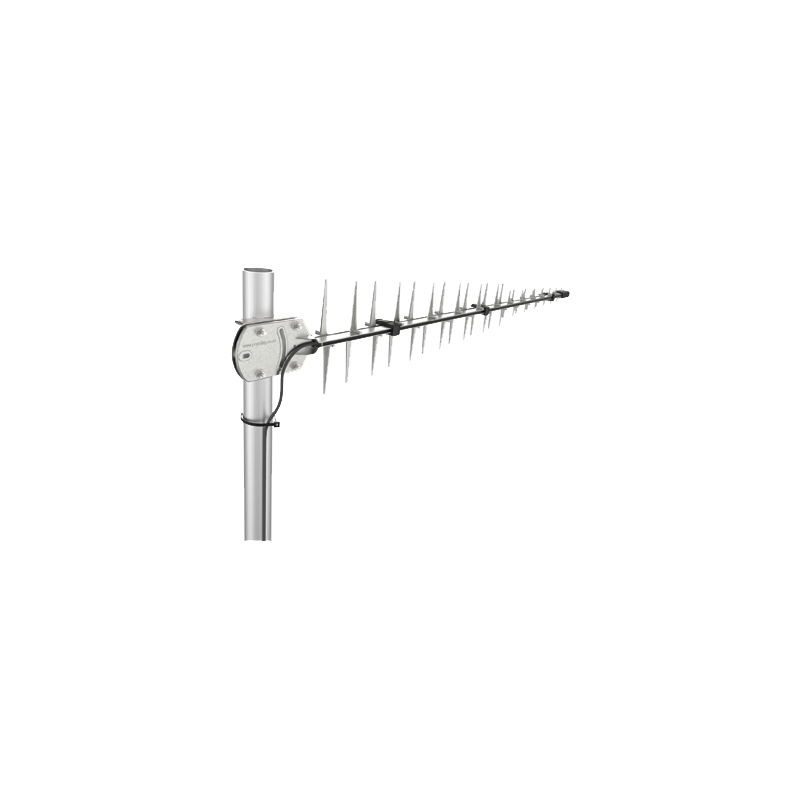

Poynting Antennas 5G/LTE Mast A-LPDA-0092-LTE SET silver SMA (M) 2 x 11dBi SMA Male SET

Poynting GSM antenna A-LPDA-0092 LTE/5G SMA (M) - silver

!!! Attention, this article contains 2 LPDA-0092 antennas and a BRKT-33 mount !!!

overview

This high-gain, wideband directional antenna covers all international cellular, mobile, and wireless data bands, including GSM 900/GSM1800/UMTS/LTE bands. It also covers the extended cellular and WiMAX bands, such as the European/American Digital Dividend bands and the licensed and unlicensed 2.3-2.7 GHz data bands. Its configuration is suitable for various wireless communication systems. This antenna is unique in its combination of ultra-wideband operation and consistent high-gain performance. It has been successfully deployed in extreme weather conditions in Africa and Europe with virtually zero dropouts. It is a firm favorite in all areas where operators struggle with signal issues. It is ideal for any application that utilizes the GSM network (LTE/HSPA/3G/EDGE/GPRS).

Characteristics

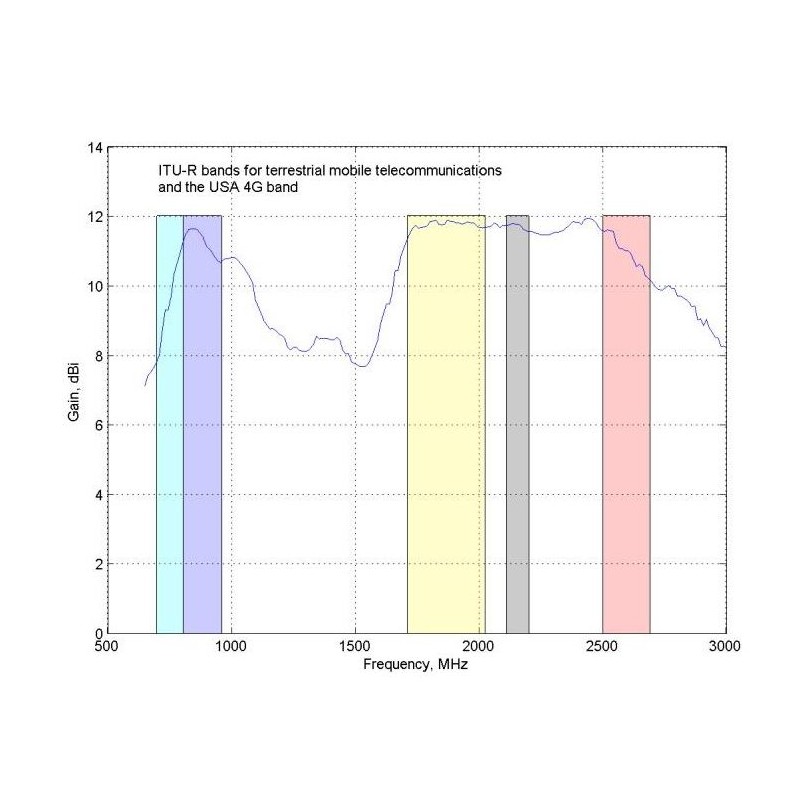

• Future-proof broadband LTE and Wi-Fi antenna for 698 - 3800 MHz
• Compatible with 2G, 3G and 4G technologies
• 5G Ready covers 3.2 GHz to 3.8 GHz CBRS band
• Improves the user experience of mobile subscribers
• Weather and vandalism resistant
• Use in extreme weather environments

scope

• Urban and rural areas
• Antenna of choice for rural areas due to high gain
• Poor data signal reception (indoors or outdoors)
• Slow data transfer connection
• Unstable connection
• Increasing system transmission reliability
• LTE peripheral areas (near an LTE area but outside of range)
• Flexibility of the network operator
• Since the antennas are broadband, no new antenna is required per network operator
• works in most networks

Technical data

• Coax cable type: HDF-195
• Coax cable length: 7 meters
• Connection type: SMA - Male
• Weight: 1.63 kg
• Dimensions: 1112 x 200 x 47 mm
• Wind survival time: ≤160 km/h
• Temperature range (operation): -40°C to +70°C
• Environmental conditions: Outdoor/Indoor
• Protection class/standard for water ingress: IP 65
• Salt spray: MIL-STD 810F/ASTM B117
• Relative humidity during operation: Up to 98%
• Storage humidity: 5% to 95% - non-condensing
• Storage temperature: -40°C to +70°C
• Housing flammability rating: UL 94-HB
• Impact resistance: IK 08
• Plastic material: Nylon 6
• Plastic color: Black
• Frame material: Passivated ADC12
• Frame color: aluminum gray

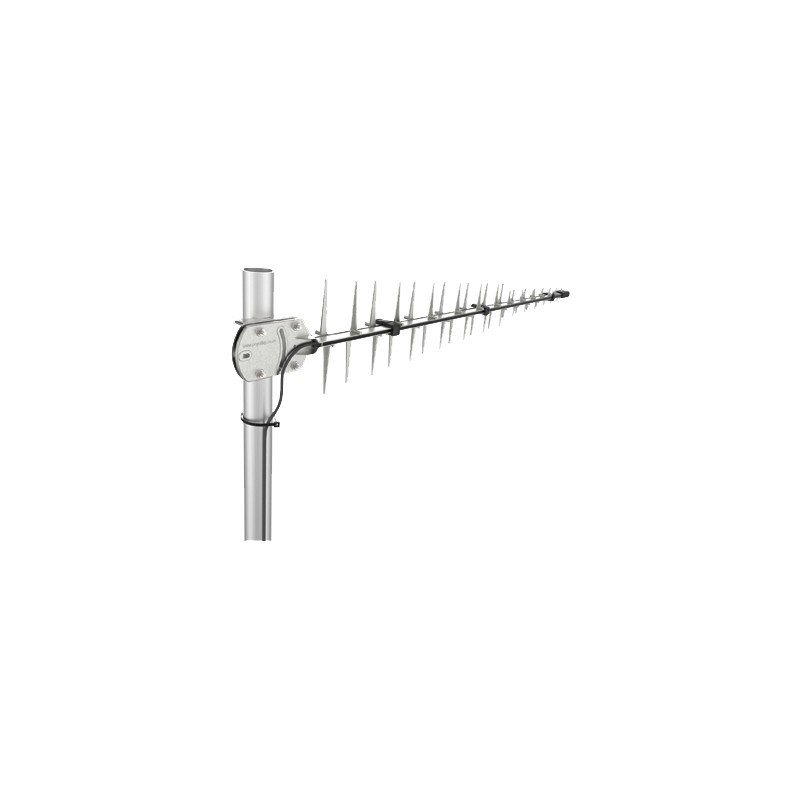

• Mounting type: mast mounting
