Teltonika · Tracker GPS · FMB140 · Vehicle · GNSS/GSM/BLE 4.0 · LV-CAN 200

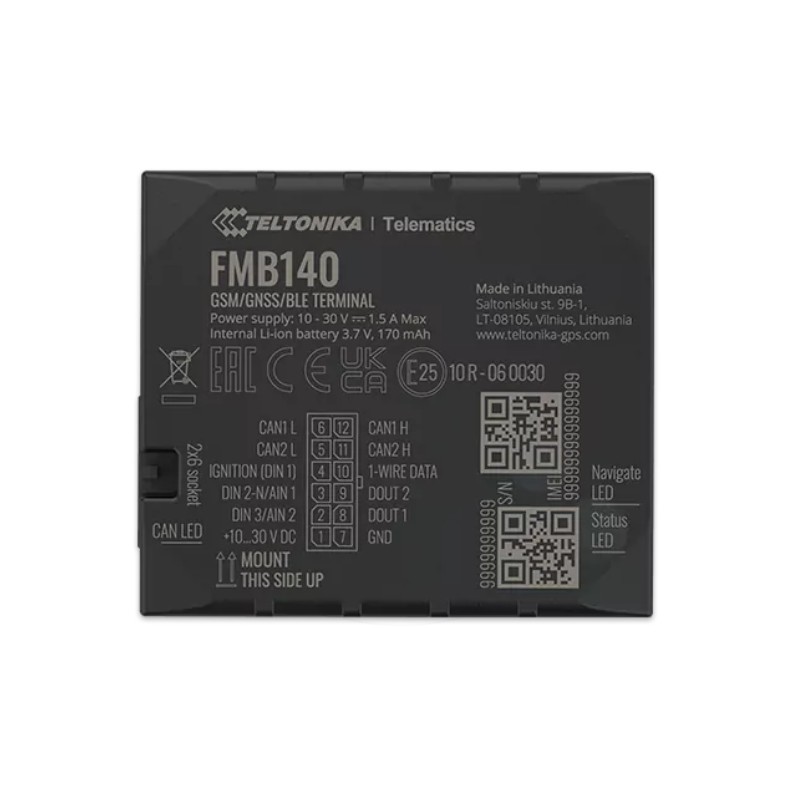

The Teltonika FMB140 LV-CAN200 2G/GSM vehicle tracker

overview

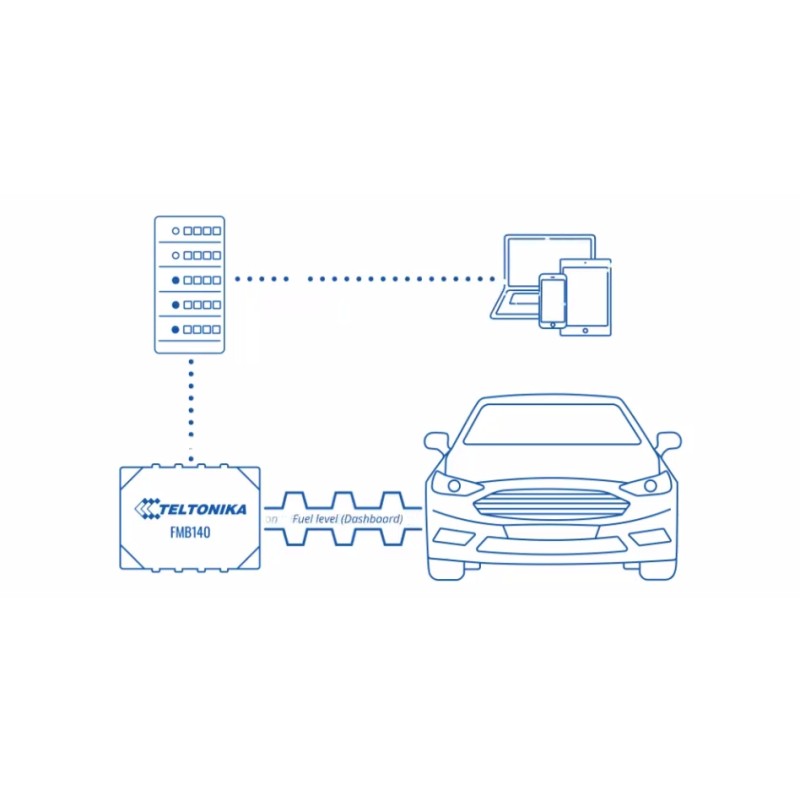

FMB140 is an ADVANCED GSM/GNSS/Bluetooth tracker with integrated CAN data processor . It is a compact 2 in 1 solution: GPS tracker and CAN adapter inside! The device allows reading CAN data from a wide range of different vehicles, including light and electric vehicles, trucks, buses and special machinery. Depending on the exact software version, FMB140 can be used in advanced applications such as heavy logistics, delivery service, utility transport. Two options to meet all business needs.

LV-CAN200 Option - Standard software version with LV-CAN200 parameters including fuel level, consumption, odometer, CAN speed, pedal position, Supported vehicle types: light vehicles, trucks, buses.

FMB140 supports Bluetooth 4.0 LE protocol, which allows you to connect various external devices and Bluetooth low energy sensors. The new device is a significant improvement for telematics, offering easier installation and flexibility in choosing the right features without changing the hardware.

Characteristics

• CAN data reading from light vehicles, buses, coaches and trucks
• Real fuel consumption and level, total mileage, engine temperature and more
• Read CAN data from agriculture and special transport*
• Bluetooth for external devices and low energy sensors
• Configurable DIN/AIN for flexible remote monitoring and control
• Negative input allows easier installation of accessories

scope of delivery

• Teltonika FMB140 LV-CAN 200 Tracker
• manual

For technical data see data sheet!!
