Teltonika · Tracker · FMB240 · LVCAN · Vehicle · 2G Bluetooth Advanced GPS Tracker

Teltonika FMB240 advanced Bluetooth GPS tracker

available from February 2022!

overview

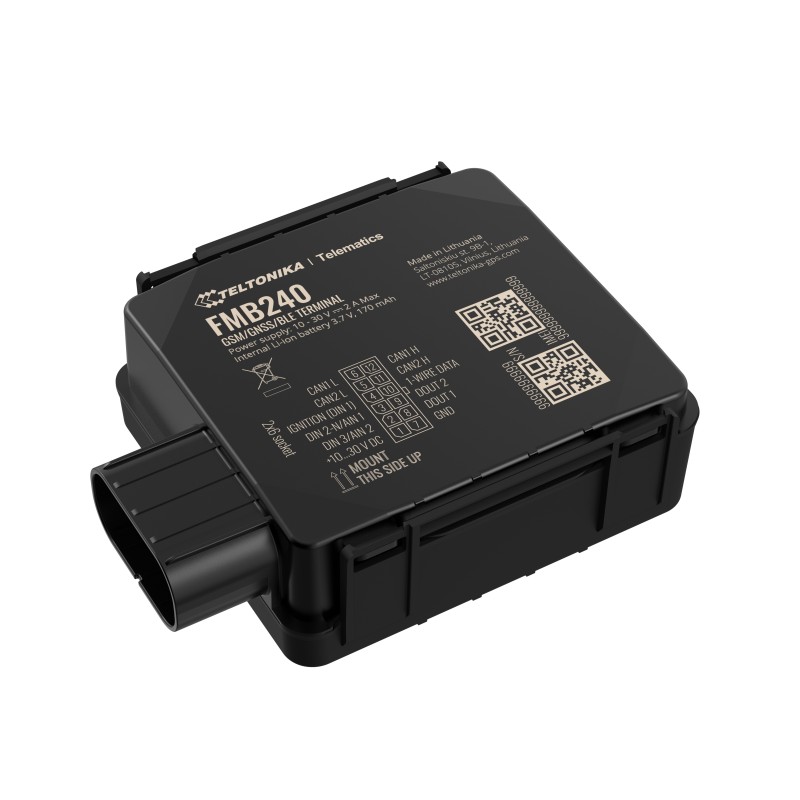

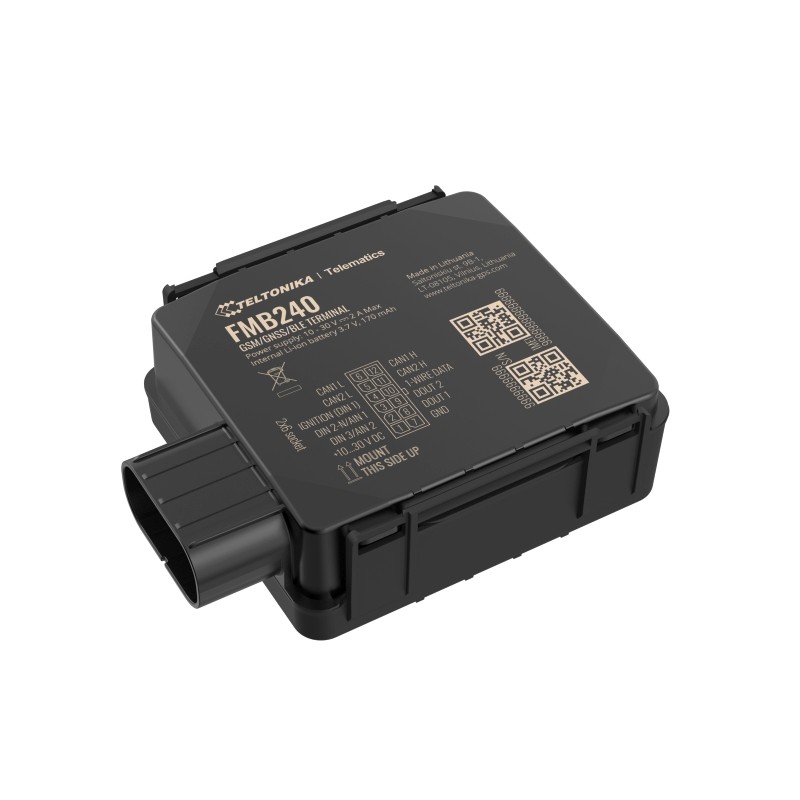

FMB240 is a water and dust resistant GSM/GNSS/Bluetooth tracker with integrated CAN data processor. It is a compact 2-in-1 solution: GPS tracker and CAN adapter inside! The device allows reading CAN data from a wide range of different vehicles, including light and electric vehicles, trucks, buses and special machinery. Two options are available to meet all business needs:

LV-CAN200 option – standard software version with LV-CAN200 parameters including fuel level, consumption, odometer, CAN speed, pedal position, Supported vehicle types: light vehicles, trucks, buses.

ALL-CAN300 Option* – extended software version allows reading more parameters than the standard version. Available additional parameters include AdBlue level, engine life and airbag. Supported vehicle types: Agriculture, construction, forestry, utility and special machinery, light vehicles, trucks, buses + electric vehicles.

FMB240 is developed on the existing Teltonika platform and therefore retains all the functionalities of FMB140 with additional IP67 resistance to dust and water.

This tracker is dustproof and protected from the effects of temporary immersion in water. It can be mounted inside and outside a vehicle without fear of high pressure water, mud or dusty environment affecting its operation or performance quality. This is especially relevant for the industries that face harsh conditions such as agriculture, construction and mining and more.

The FMB240 supports the Bluetooth 4.0 LE protocol, which allows you to connect various external devices and Bluetooth Low Energy sensors. The new device is a major improvement for telematics with easier installation and flexibility in choosing the right features without changing the hardware.

Characteristics

• IP67 - Classifies the degree of protection against solid objects and water
• CAN data reading from light vehicles, buses, coaches and trucks
• Actual fuel consumption and level, full mileage, engine temperature and more
• CAN data reading from agricultural and special transports
• Bluetooth for external devices and low energy sensors
• Configurable DIN/AIN/NIN flexible remote monitoring and control.

scope of delivery

• 1 x Teltonika FMB240 GPS Tracker
• 1 x Manual

For technical data see data sheet!

fmb240-datasheet.pdf (teltonika-gps.com)
