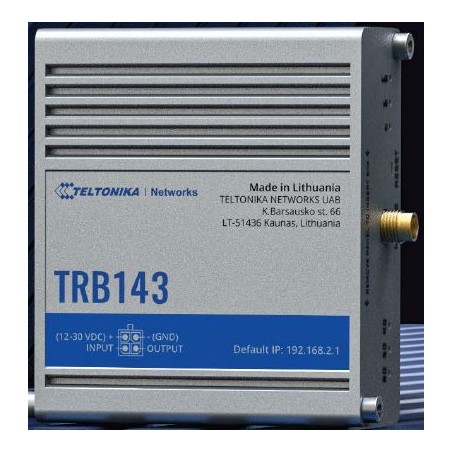

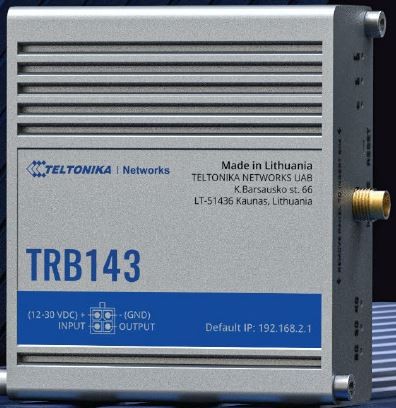

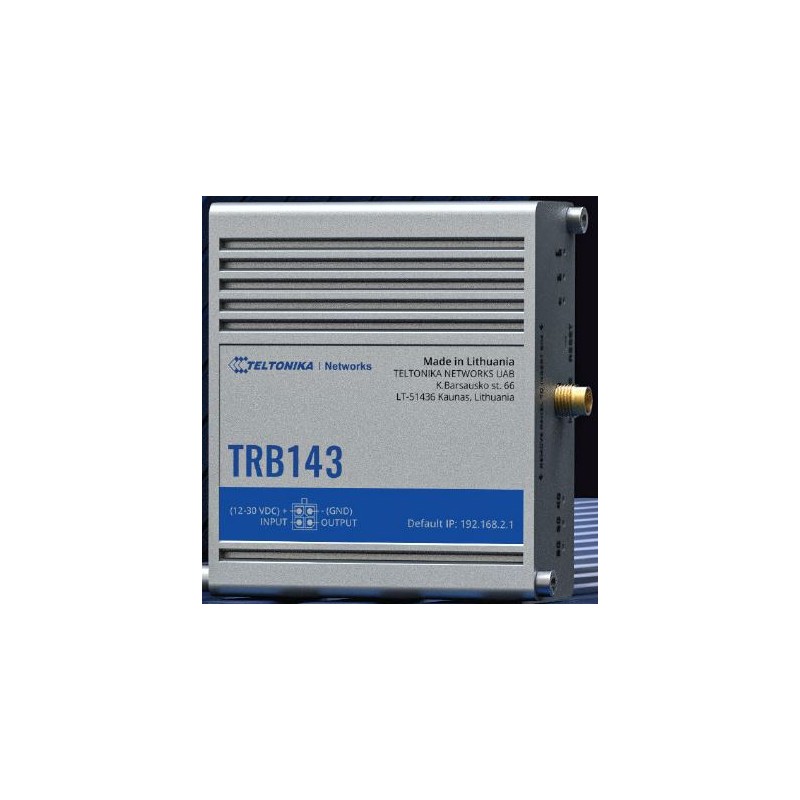

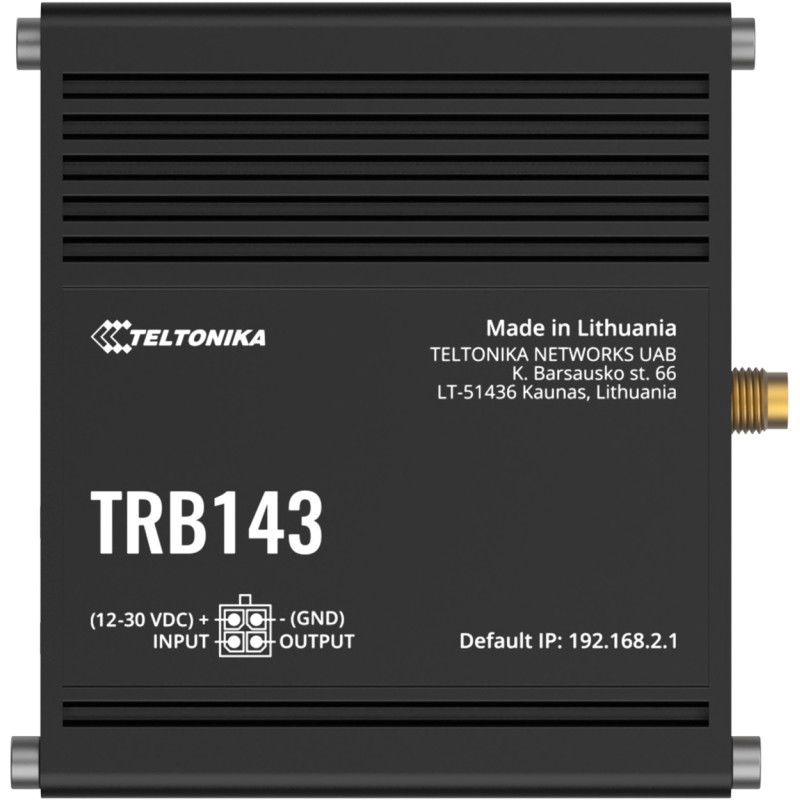

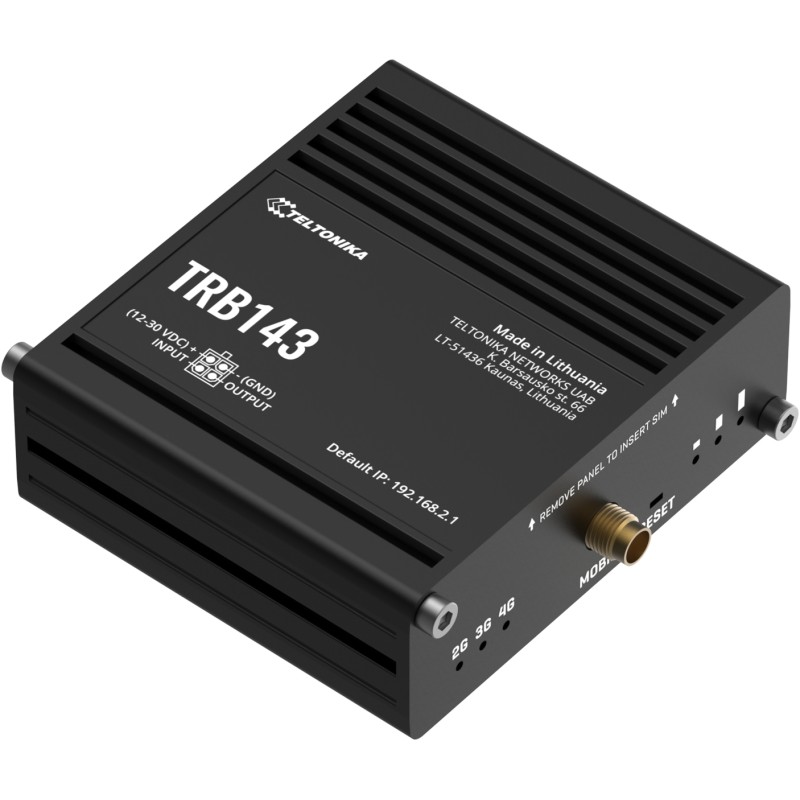

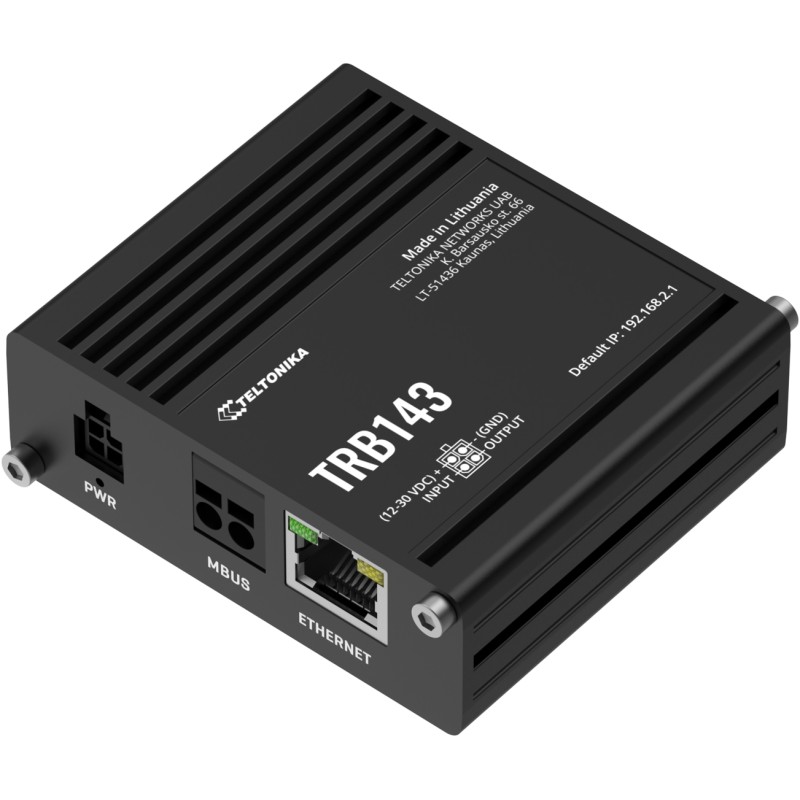

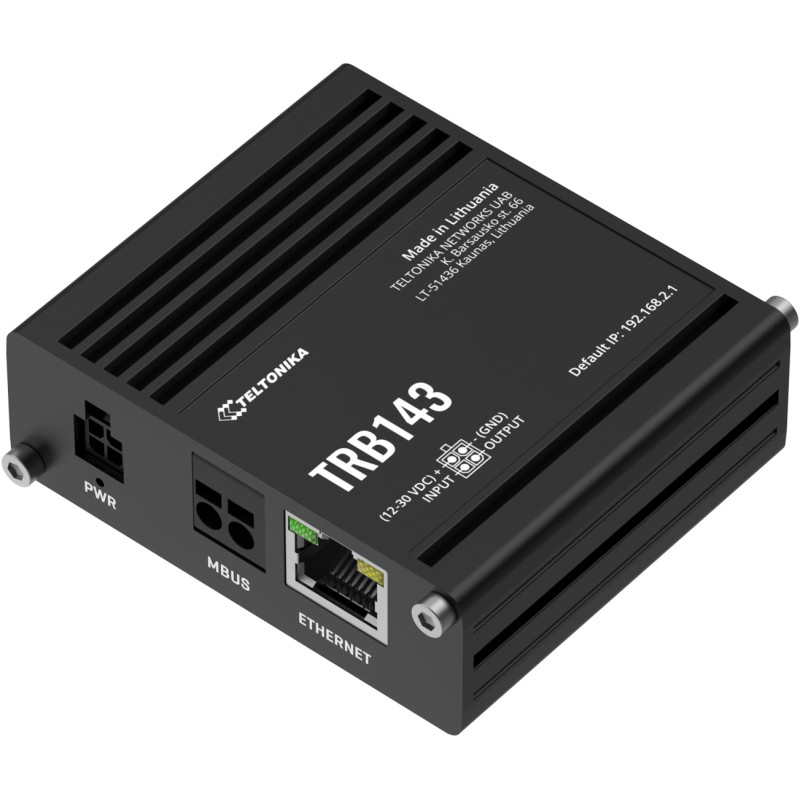

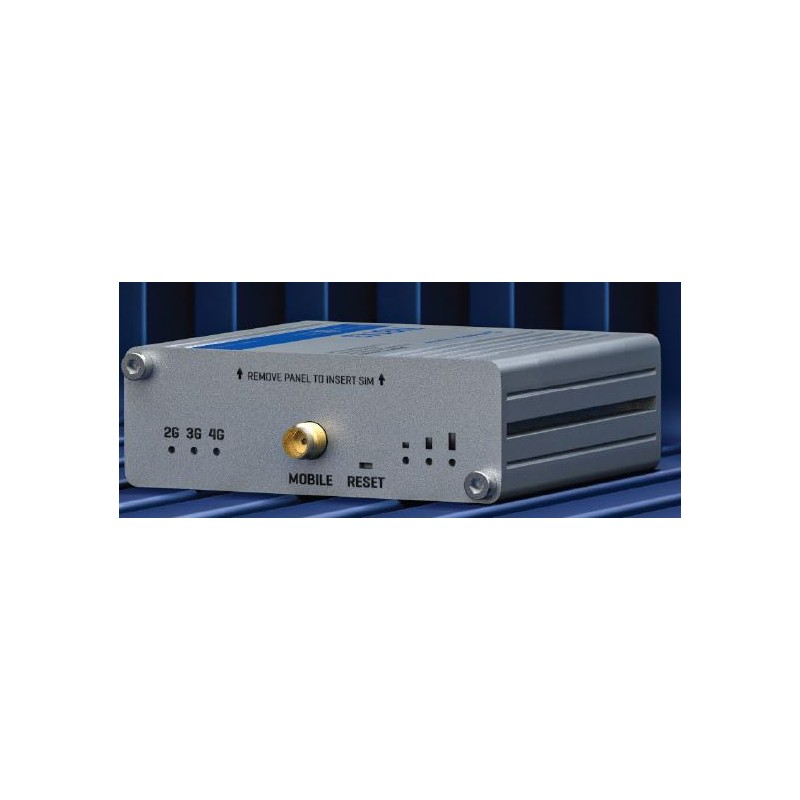

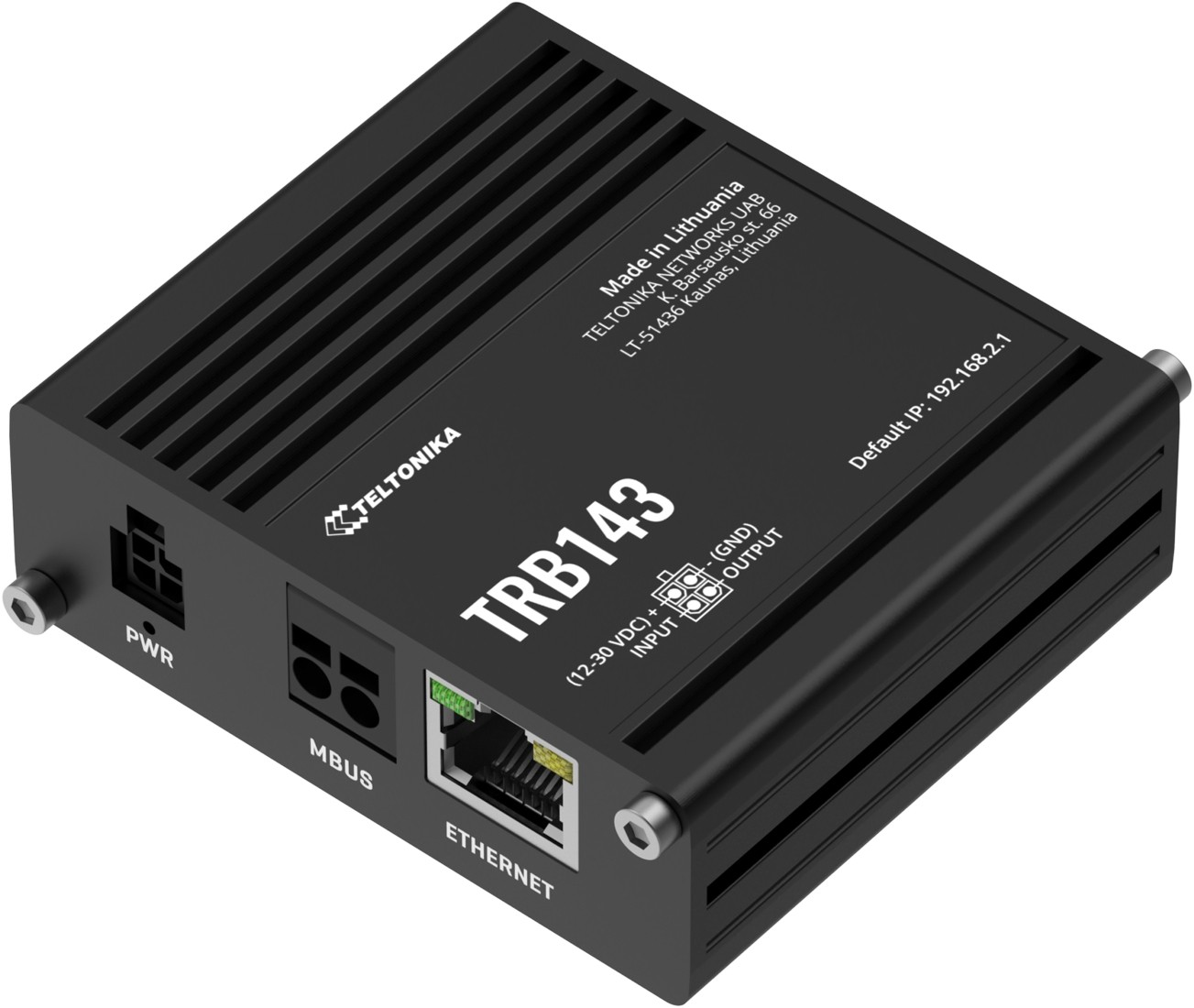

Teltonika · Gateway · TRB143 · LTE CAT4 M-BUS

With integrated M-Bus interface, the TRB143 industrial gateway is explicitly designed for telemetry and utility monitoring applications. Cellular and wired connectivity enhance the telemetry process by ensuring data transmission of meter readings. This device features a Gigabit Ethernet port and a pair of digital inputs/outputs, making it easily applicable to a wide range of environmental parameter monitoring scenarios. Remote monitoring and configuration is made easy and secure thanks to software security features such as a pre-configured firewall and Open VPN, as well as compatibility with FOTA, SMS control and Teltonika Networks' own remote management system.

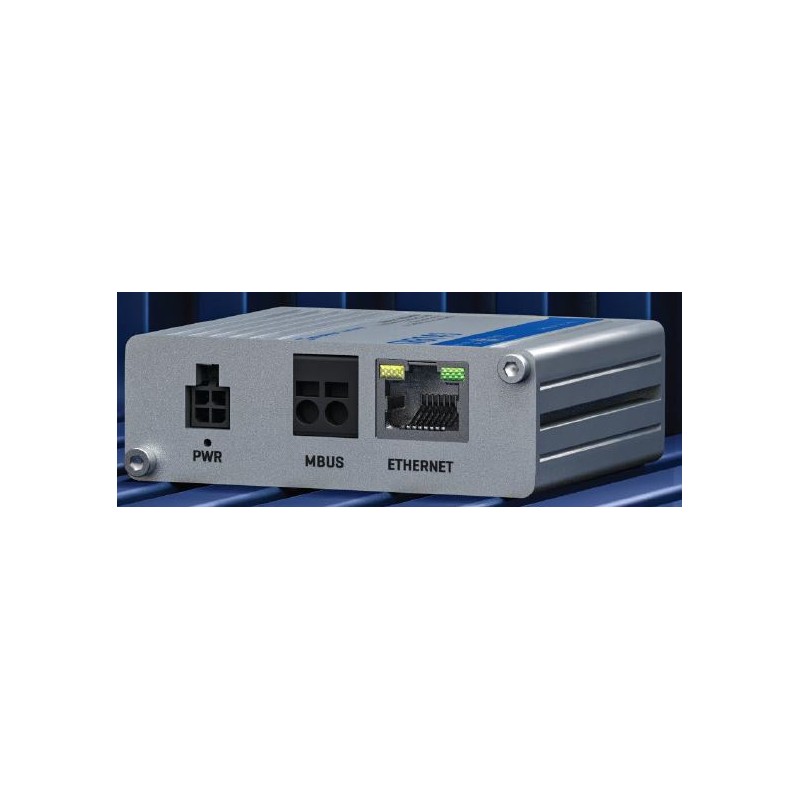

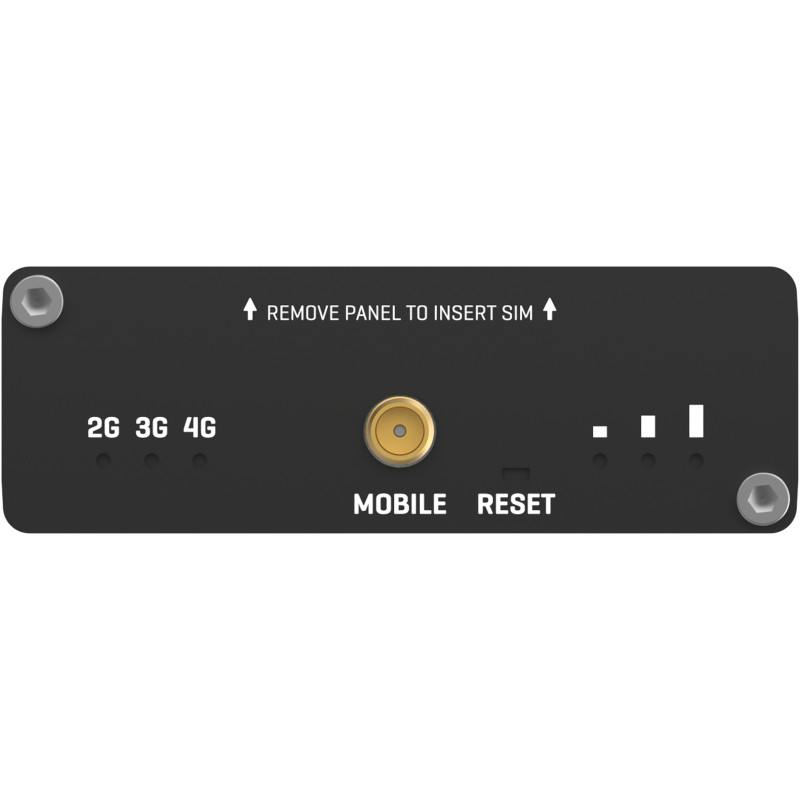

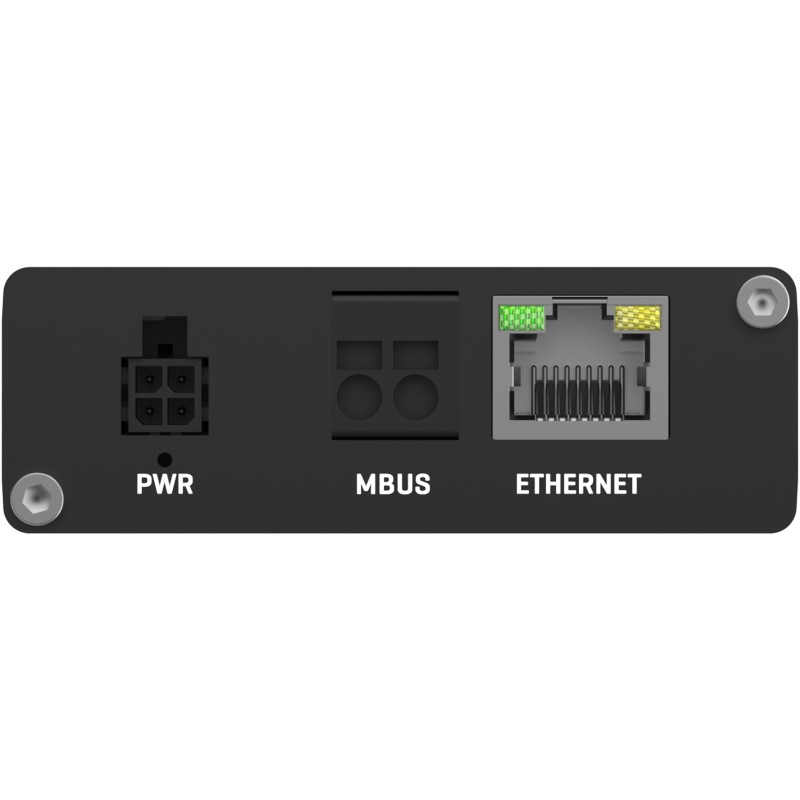

Mobile 4G (LTE) Cat 4 up to 150 Mbps, 3G Up to 42 Mbps, 2G Up to 236.8 kbps CPU ARM Cortex-A7 1.3 GHz CPU RAM 256 MB (160 MB available for userspace) Flash storage 512 MB (200 MB available for userspace) Powering options 4-pin power socket, 12 30 VDC SIM 1 x SIM slot (Mini SIM 2FF), 1.8 V/3 V Status LEDs 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED Inputs/Outputs 2 x Configurable I/O pins on 4-pin power connector M-Bus 1 x M-Bus Interface M-Bus interface The M-Bus interface can support up to 250 slave devices and can power up to 6 slave devices Ethernet 1 x RJ45 port, 10/100/1000 Mbps Ingress protection rating IP30 Operating temperature -40 °C to 75 °C Housing Aluminum housing Dimensions 74.5 x 25 x 64.4 mm Weight 145 g Installation DIN rail, wall mounting (additional kits needed), flat surface placement Operating system RutOS (OpenWrt based Linux OS) Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL) Network features Routing, Connection monitoring, Firewall, DHCP, QoS / Smart Queue Management (SQM), DDNS, SSHFS VPN and tunneling OpenVPN, GRE, IPsec, PPTP, L2TP, SSTP, Stunnel, DMVPN, WireGuard, ZeroTier Monitoring and Management WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, Modbus, RMS Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Cloud solutions RMS, Clouds of things, ThingWorx, Cumulocity, Azure IoT Hub

STANDARD PACKAGE CONTAINS: TRB143 18 W PSU 1 x LTE antenna (magnetic mount, SMA male, 3 m cable) 1 x hex key 1 x LAN cable QSG (Quick Start Guide) Packaging box
