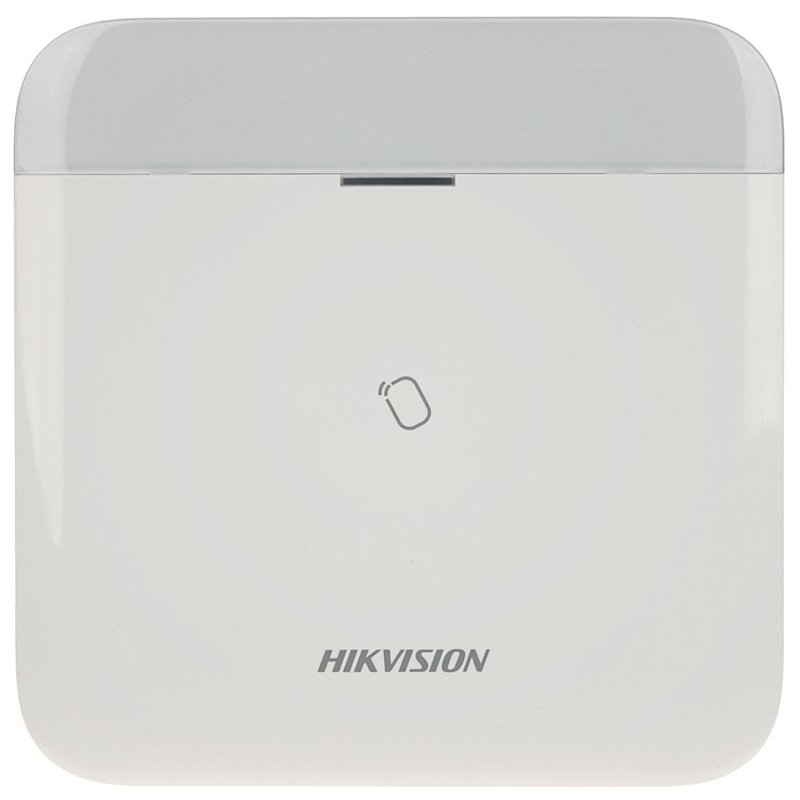

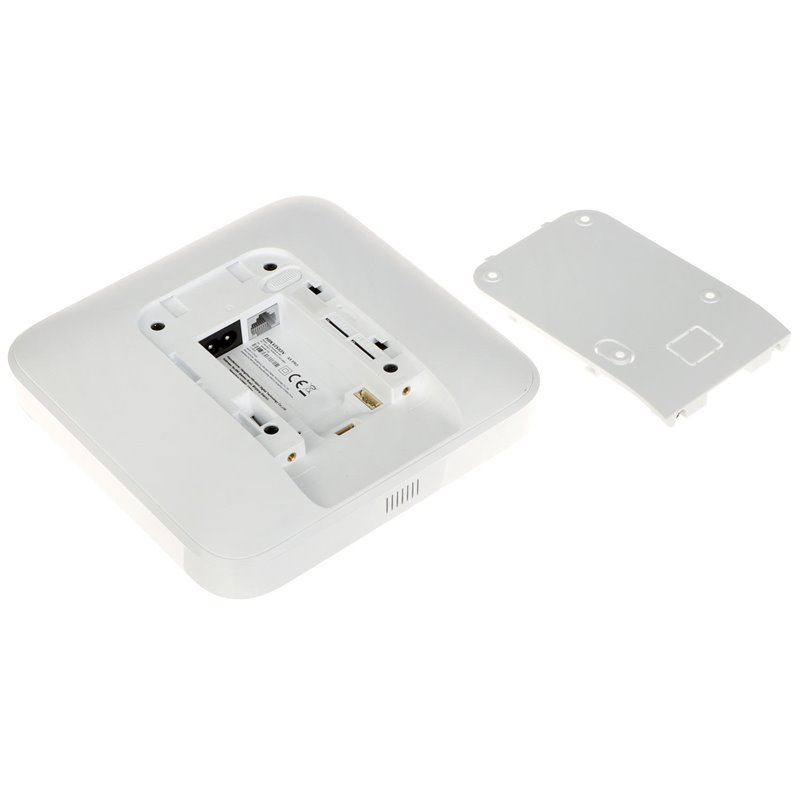

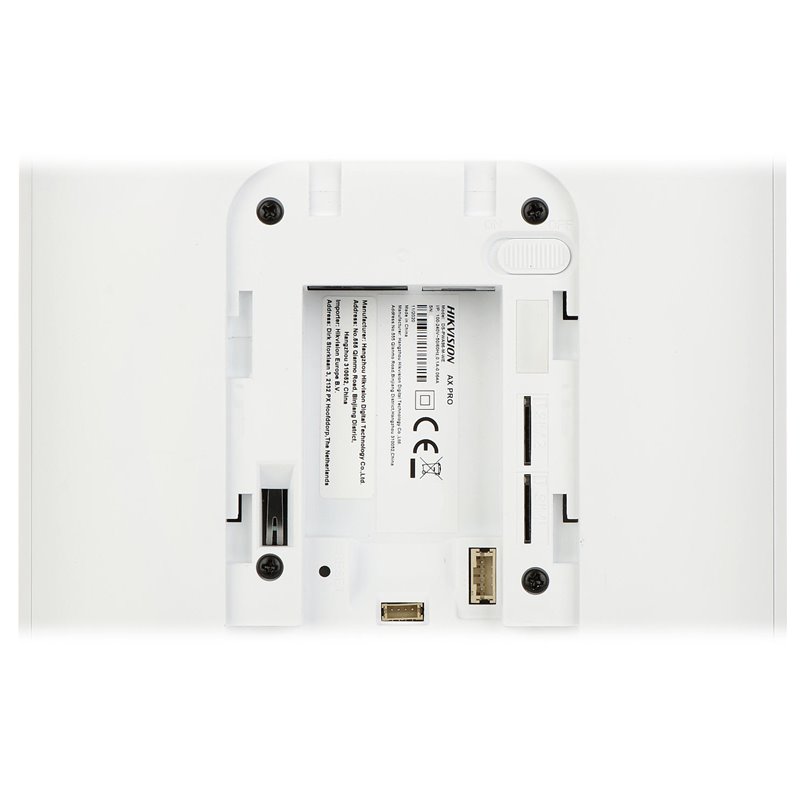

HikVision - AX PRO wireless alarm control panel (868MHz)
- Supports TCP/IP, Wi-Fi and GPRS/3G/4G network
- Tri-X: Latest generation wireless protocol
- Long radio range
- Two-way communication with AES 128-bit encryption
- Connects up to 96 wireless zones/outputs, 48 wireless key fobs, 4 repeaters, 6 sirens, 8 RFID readers & keypads and PIRCAMs.
HikVision - AX PRO wireless alarm control panel (868MHz)
Simple, effective security - quick installation
- HikVision's wireless magnetic contact with universal wire entry (MC2-WE) features two reed switches to give you installation flexibility.
Transmission range up to 300 meters
- The high-sensitivity receiver enables a wireless signal range of up to 300 m in open space, eliminating the need for repeaters and reducing installation costs.
Simplest installation
- Easily connect the MC2-WE to the security system using the One-Push-To-Learn button to work quickly and efficiently.
Two-way radio technology
Enforcer's two-way wireless technology is designed to provide high levels of security protection for users, as well as easy and efficient installation and maintenance for installers, using award-winning features such as Enforcer's Signal Strength Indicator (SSI) and Radio Interference Detection.
The 128-bit encryption provides effective protection of the signals transmitted by the system and prevents code retrieval. This provides a very high level of protection to the wireless BUS, providing peace of mind for users and installers alike.
Product features
- 2 reed switch detection points (side and bottom)
- External tamper input
- Powerful magnet
- Signal strength display in the device
- Learning button for easy programming at the control center
- Pyronix high security radio protocol with 128bit AES encryption
- 868MHz Transceiver FM Technology
- Available in white or brown
Technical data:
Technical characteristics of the sensor
Detector type | Opening detector / magnetic contact |
Sabotage contact | Front and back |
LED sensor test | RSSI, Battery Status and Alarm |
Connection (NO/NC) for additional detectors | Yes |
Connection for external tamper switch | Yes |
Detection points | Side / Bottom |
Enforcer 2-way radio technology
Signal strength indicators (SSI) | Yes |
Pyronix high security two-way wireless data encryption protocol (TDE) | Yes |
Pyronix jamming detection on the radio bus | Yes |
Programmable wireless monitoring time | Yes |
868MHz transceiver FM technology | Yes |
Learning button for teaching | Yes |
Transmission type | Encrypted rolling code procedure |
Radio range | 300m² in open space |
Vicinity
Storage temperature: | -20C to 50C |
Operating temperatur: | -10C to 40C |
Dimensions: (H x W x D) | 115x35x30mm | Magnet: 56 x 12.7mm |
Power supply
Battery type: | 3.0V CR2 |
Battery life | up to 2 years |
Certifications and warranty
Security level: | EN Grade 2 |
Environmental class: | II |
EN Certificate: | EN50131-2-6:2008 | EN50131-5-3:2005+A1:2008 |
Certification: | IMQ |
Certificate No. | CA12.01326 |
Electrical compliance: | CE |
Guarantee: | 2 years |
Scope of delivery:
- 1x HikVision - wireless remote control
