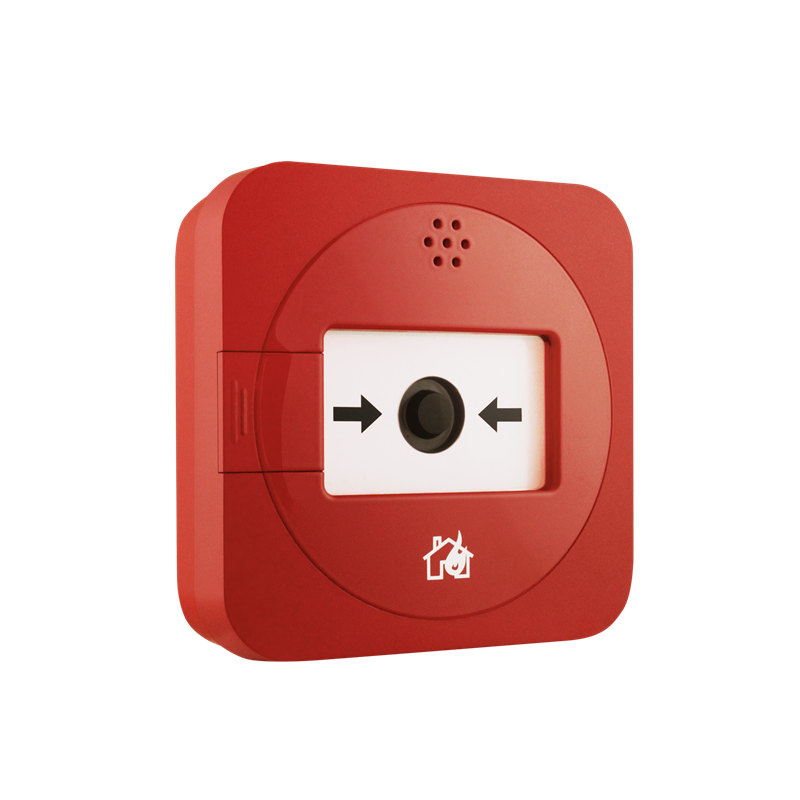

LUPUS NB-IoT - Mobile Alarm Button

Secure your building with maximum precision and cost efficiency using the Mobile Alarm Button from LUPUS-Electronics and the LUPUS Cloud fire alarm system. Developed in accordance with the strict requirements of DIN VDE V 0826-2, DIN EN54-11 and DIN EN54-25, this alarm button with integrated siren provides an indispensable element for your fire protection strategy. With seamless integration into LUPUS' innovative cloud-based system and the reliability of Deutsche Telekom's Narrowband IoT network, this alarm button is the ideal choice for protecting lives and property.

No need to buy a SIM card or subscription. Everything is included for 10 years. The device works in Switzerland, Germany Austria, Italy etc.

Main features:

1. High security connection: The manual fire alarm button uses Deutsche Telekom's Narrowband IoT network for outstanding connectivity. This network not only provides data roaming, but also a wealth of sub-channels that ensure exceptionally high connection security.

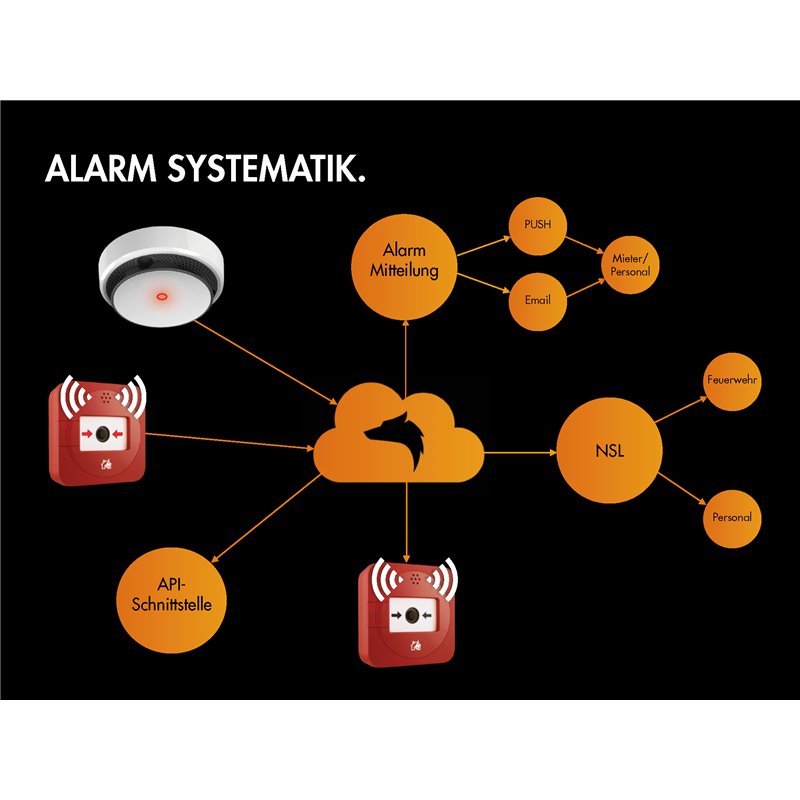

2. Intelligent cloud-based fire alarm control panel: Thanks to the patented LUPUS cloud fire alarm control panel, you have control over your fire protection system from anywhere. Receive real-time notifications, monitor alarms and react immediately to potentially dangerous situations.
3. Fast response time: In the event of an alarm, the manual fire alarm button responds immediately. By simply smashing the integrated glass and pressing the button, the alarm is triggered and the integrated siren with over 85 dB sound pressure warns everyone present of the danger.
4. Versatile triggering options: The alarm can also be triggered by other hazard detectors in the building. This seamless integration increases the effectiveness of the system and ensures comprehensive coverage.

Advantages:

• Reliable protection: compliance with VDE V 0826-2 guarantees that the manual fire alarm button meets the highest standards in terms of quality and performance.
• Fast alerting: The combination of instant alarm activation and the powerful siren ensures that potential hazards can be recognised and responded to immediately.
• Remote monitoring: Monitor the status of your fire protection system from anywhere to ensure your building is protected at all times.
• Easy integration: The manual fire alarm button can be seamlessly integrated into existing LUPUS Cloud systems via "click and scan", providing an uncomplicated way to expand your fire protection system.

Rely on the technological innovation of LUPUS and the robust connectivity of the German Telekom Narrowband IoT network to effectively protect your building from fires. Invest in the manual fire alarm button of the LUPUS Cloud fire alarm system and ensure the best possible protection for life and property.

Product features:

• Manual fire alarm button in accordance with DIN EN54-11 with integrated siren
• Status monitoring in the LUPUS cloud-based fire alarm control panel
• Key module for building-wide siren alarm in accordance with VDE V 0826
• Wireless networking via Telekom's Narrowband IoT network with the LUPUS Cloud in accordance with DIN EN54-25
• Real-time transmission of alarms, events and the current device status
• Designed and developed in Germany, Assembled in Taiwan

Technical data:

• Siren volume: 95dBA @ 1 metre
• Dimensions: 135 x 135 x 37mm (HxWxD)
• Weight: 0.250kg
• Power supply: 12V DC, 60mA (power supply unit not included)
• Emergency power supply: max. 40 hours, 7.2V, 20mA
• SIM card: eSIM MMF2
• NB-IoT module: Quectel BG77
• Radio frequency: LTE Cat. M1 / LTE Cat. NB2 / LTE Cat. NB1
• NB-IoT data connection for: 10 years
• Encryption: LTE end-to-end + TLS
• Status transmissions to the cloud: every 24 hours / every 300 seconds (adjustable)
• Mounting location: Wall, indoor area
• Mounting options: Screwed, glued
• Operating temperatures: -20°C to +60°C
• Humidity: Maximum 95% (without condensation)
• Protection class: IP52
• Directive-compliant: CE, FCC, RoHs, DIN EN54-11, DIN EN54-25
• Compatible with: Lupus Cloud

Scope of delivery:

• 1x LUPUS 14003 Mobile Alarm Button Red
• 1x key
• 1x manual
