LUPUS NB-IoT - 10 inch PoE fire brigade display panel

The intelligent fire brigade panel for LUPUS fire alarm systems™ according to DIN 14662
The LUPUS 10-inch PoE fire alarm display panel is an important component of the LUPUS Fire Alarm System™ (FAS) according to DIN 14662. Based on the proven LUPUS Cloud APP and our 10-inch PoE tablet, this robust and powerful Android 12 tablet offers an intuitive and reliable display of all relevant fire alarm information.

Thanks to Power over Ethernet (PoE), the tablet is always reliably supplied with power and connected via the network without the need for a separate power supply. After switching on, the device automatically starts the LUPUS Cloud App, which has also been specially configured for use as a fire alarm display panel. This visualises fire alarms, fault messages and other safety-relevant information in real time, so that emergency services are immediately informed about the status of the LUPUS fire alarm system™.

Special product features:

• DIN 14662-compliant display: Display of alarm and system messages in accordance with the specifications for fire brigade display panels.
• Automatic start of the LUPUS Cloud App: No manual operation required - the device is ready for use immediately after switching on.

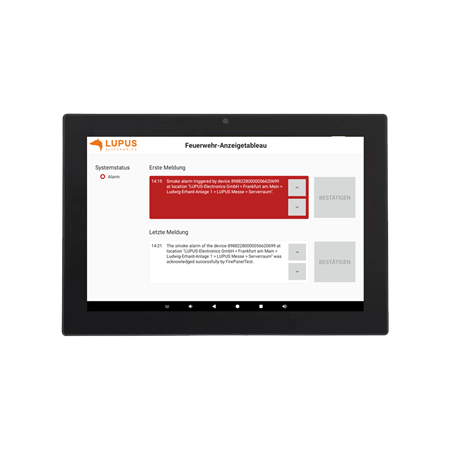

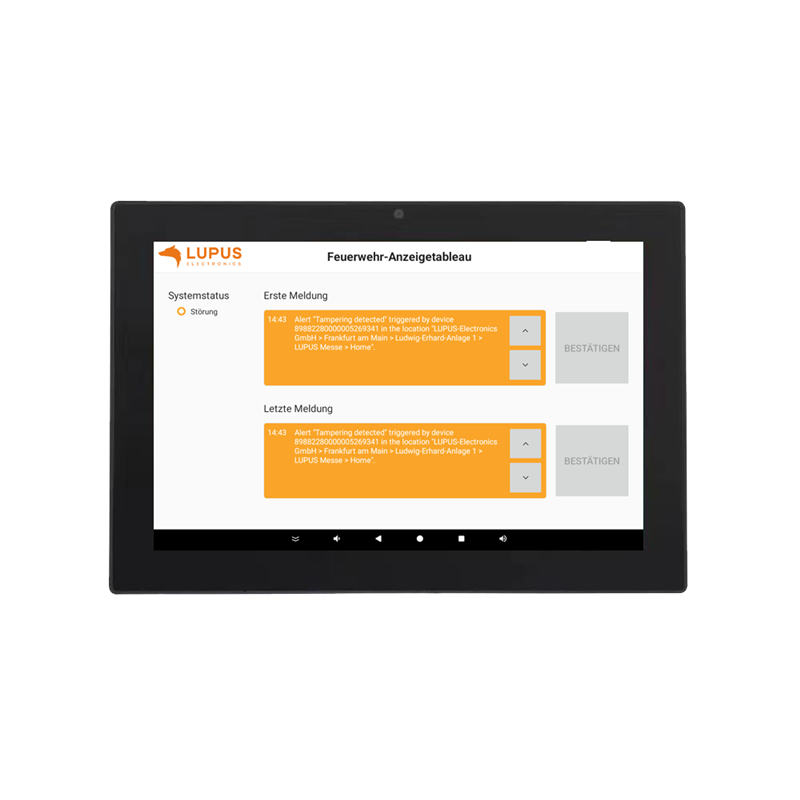

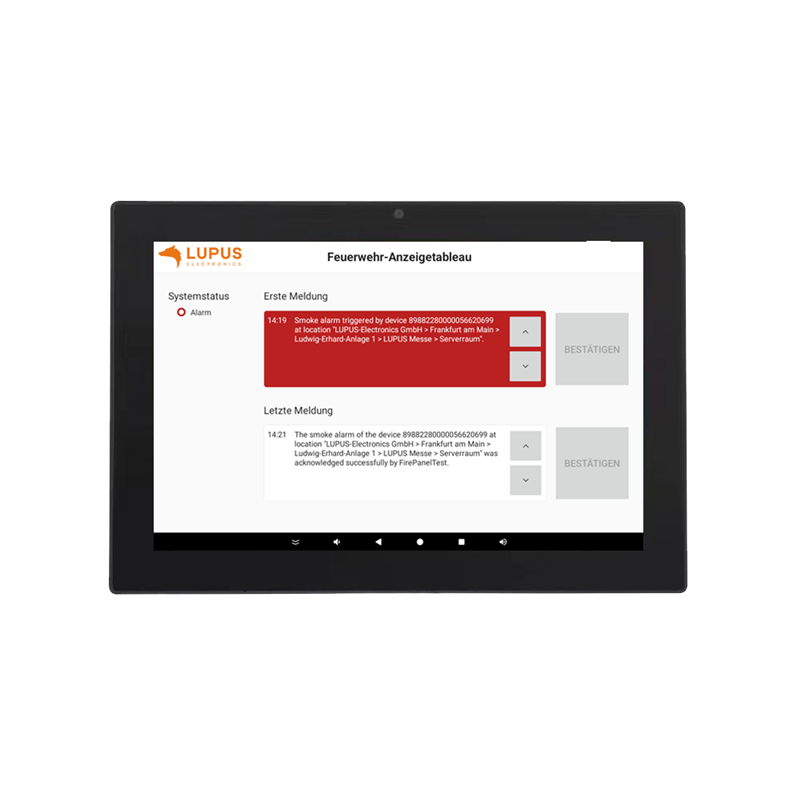

• Real-time alarm display: Immediate display of fire and fault messages with clear visualisation.
• PoE connection: Secure and uninterrupted power supply via the network.
• High-resolution 10-inch display: Clear and easy-to-read display of all relevant information.
• Android 12 operating system: Stability, security and compatibility with future software updates.
• Robust design: Optimised for long-term use in security-critical environments.

The LUPUS 10-inch PoE fire alarm panel provides fire brigades, operators and security services with a reliable and user-friendly system for the rapid detection and assessment of fire alarms - for maximum safety in an emergency.

Technical data:

• Dimensions: 258.1 x 175.8 x 26.7 mm (WxHxD)
• Weight: 0.350 kg
• Power supply: Power over Ethernet (PoE) or 12V power supply unit (included)
• Display resolution: 1280x800 pixels
• Brightness value: 500nits
• Operating system: Android 13 embedded
• Third-party apps: Yes - via Google Play Store (compatibility not guaranteed)
• Memory: 8GB RAM, 64GB ROM
• CPU model: Rockchip 3588 ARM CPU, 8 cores, 2GHz, LPDDR4X
• Architecture: ARM Cortex-A55
• GPU: Mali-G52
• Supplied power supply unit: 12V DC 1.5A
• Power consumption normal operation/ operating mode: approx. 3.6W / 7.5W

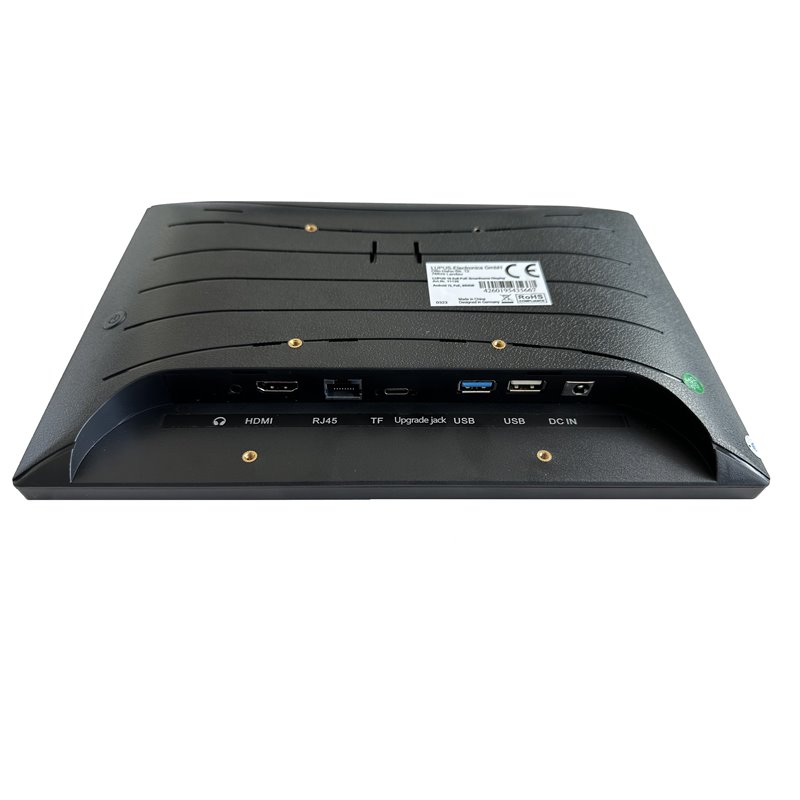

• Network connection: LAN (PoE) or WLAN (Wifi6)

Scope of delivery:

• 1x LUPUS 11121 Fire brigade display panel 10 inch PoE
• incl. 12V / 1.5A power supply unit

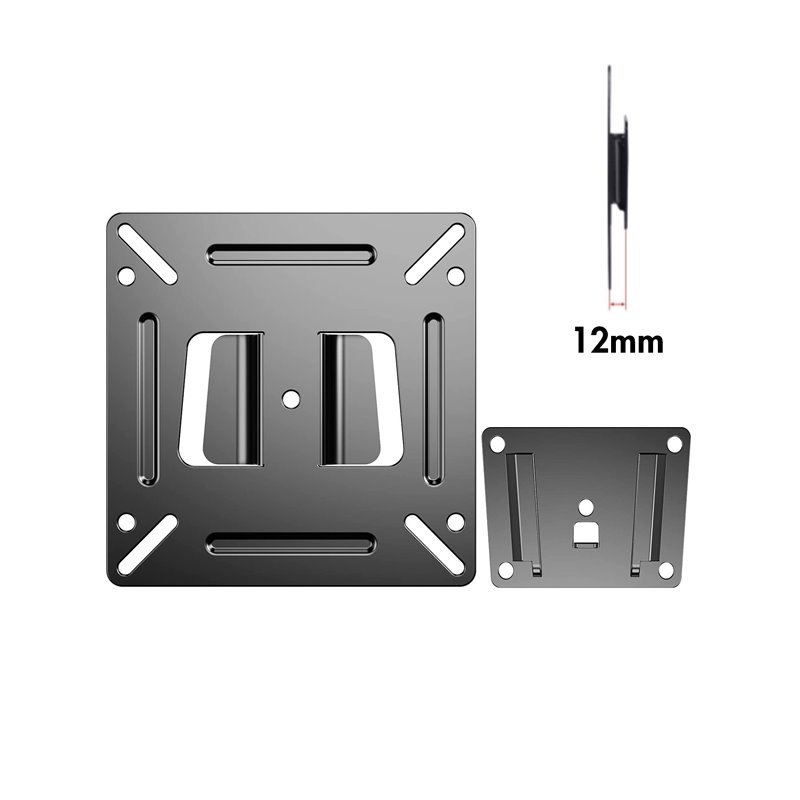

• VESA wall mount
• stand
