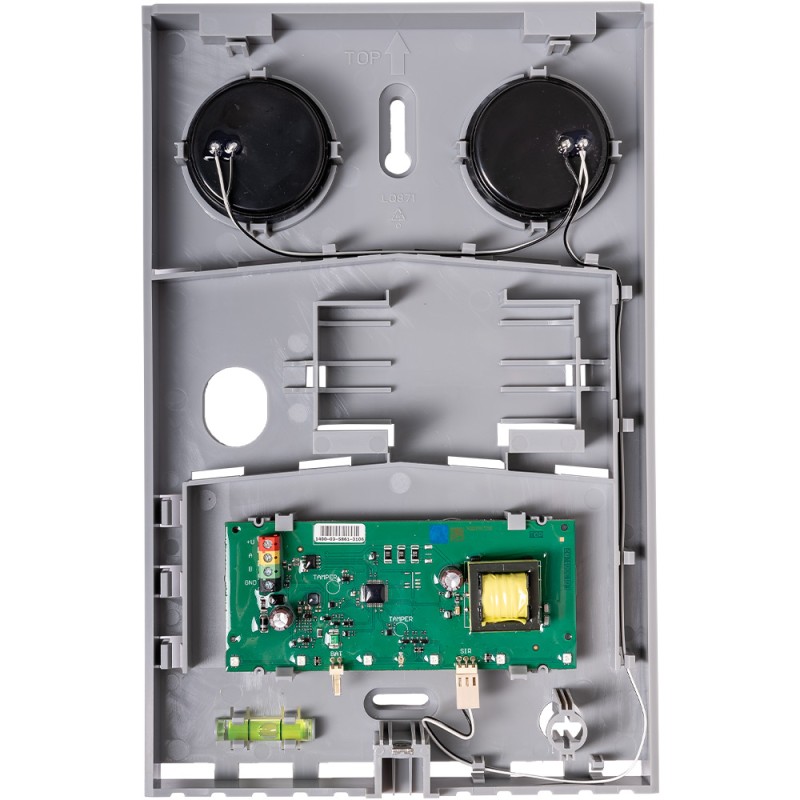

BUS outdoor siren base plate, incl. electronics

BUS outdoor siren with visual and audible alarm signalling

The JA-113A RB is a high-quality BUS outdoor siren of the JABLOTRON-100 system and is used for clear alarm signalling outside protected buildings. It signals intrusion alarms visually and acoustically and also detects attempts to tamper with the housing. The optional battery backup ensures that the alarm is signalled even if the BUS cable is disconnected.

Product features:

• BUS-based alarm siren: Connection directly via Jablotron BUS ( JA-101K, JA-102K, JA-103K, JA-106K, JA-107K control panels), simple installation.
• Reliable alerting: Powerful piezo sounder (100 dB/m) and modern SMD LED flashing light for clear visual signalling.
• Optional rechargeable battery for increased security: Supports NiMH or NiCd rechargeable batteries (to be ordered separately) as an emergency power supply - alerting even in the event of cable sabotage.
• Flexible design: JA-113A-BASE-RB base can be combined with separately available covers in various colours.
• Robust construction: Weatherproof design (environmental class IV) for demanding outdoor applications with integrated tamper monitoring.

Technical features:

• Supply voltage: 12V DC (8 - 15 V) via BUS
• Backup battery (optional): NiMH (BAT-4V8-LH1800) or NiCd (BAT-4V8), 4.8 V/1800 mA
• Current consumption: 2.5 mA (idle), max. 450 mA (alarm)
• Buffer battery consumption: 3.6 mA (idle), max. 800 mA (alarm)
• Sound pressure: Piezo siren, approx. 100 dB at 1 m
• Temperature range: -25 to 60 °C
• Protection class: Safety level 2, environmental class IV (EN 50131-1)
• Certifications: EN 50130-4, EN 55032, EN IEC 62368-1, EN IEC 63000, EN 50131-1, EN 50131-4

A powerful and flexible outdoor siren with reliable BUS communication - ideal for professional alarm signalling in outdoor areas.
