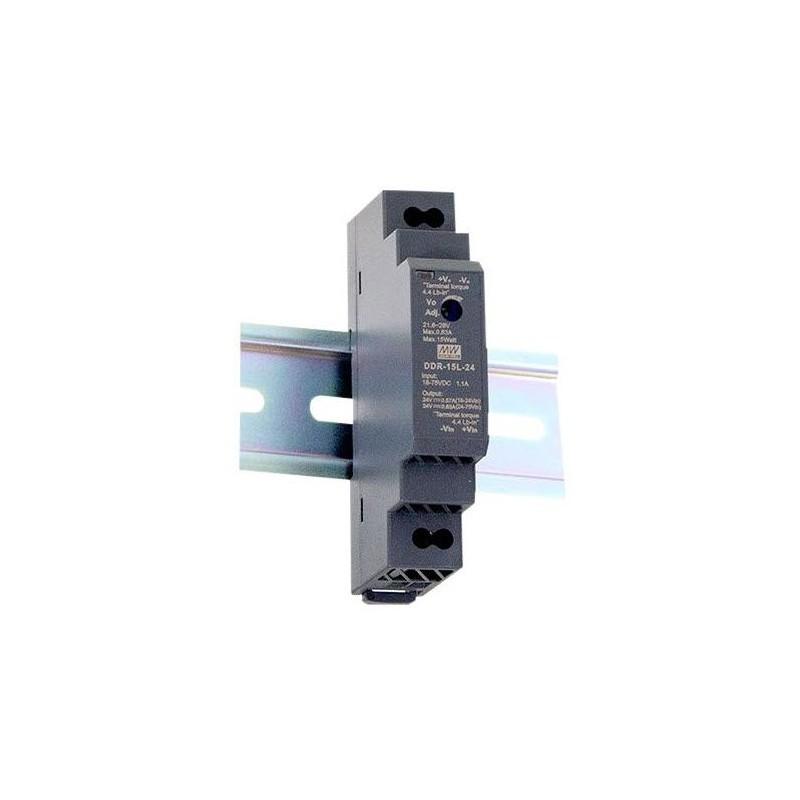

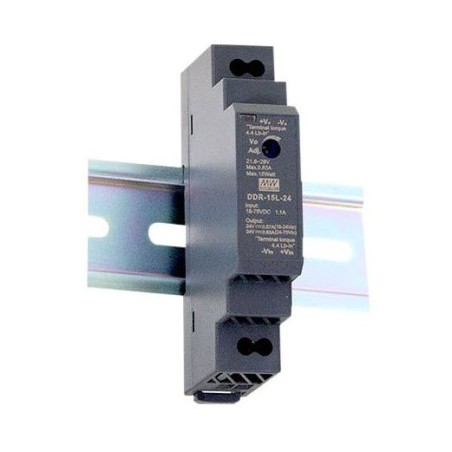

ALLNET replacement power supply/voltage converter 24V/0.63A IN: 18~75VDC - OUT: 24V DC/DC converter Mean Well DIN rail
ALLNET replacement power supply/voltage converter 24V/0.63A IN: 18~75VDC -> OUT: 24V DC/DC converter Mean Well DIN rail
ALLNET replacement power supply/voltage converter 24V/0.63A IN: 18~75VDC - OUT: 24V DC/DC converter Mean Well DIN rail
product details
- width of only 17.5 mm (1SU)
- Extra large 4:1 input area
- Wide operating temperature range from –40 to +85 °C
- No minimum load required
- DC output adjustable (+/- 10 %)
- cooling through free air convection
- Can be installed on DIN rail TS-35/7.5 or 15, reverse polarity/overvoltage protection on input
- 4 kV DC I/O isolation (reinforced insulation)
- 3-year warranty
- Application
- industrial control system
- factory automation
- electromechanical
- wireless network
- telecommunications or data communication system
- DC/DC ultra-slim industrial DIN rail converter, input 18-75 V DC, single output 5 V DC at 3 A
Technical data
| Characteristic | Value |
| input voltage | 18 - 75V dc |
| output voltage | 24V dc |
| output current | 0.63A |
| rated power | 15W |
| number of outputs | 1 |
| Height | 90mm |
| Width | 17.5mm |
| load balancing | ±1% |
| temperature max. | +85°C |
| mounting type | DIN rail mounting |
| depth | 54.5mm |
| temperature min. | -40°C |
| hum and interference voltage | 50mV ss |
| series | DDR-15 |
| output voltage adjustment range | 4.5 - 5.5V |
| operating time | 907kh |
Details about ALLNET replacement power supply/voltage converter 24V/0.63A IN: 18~75VDC - OUT: 24V DC/DC converter Mean Well DIN rail
Manufacurer:
DDR-15L-24
Weight:
DDR-15L-24
