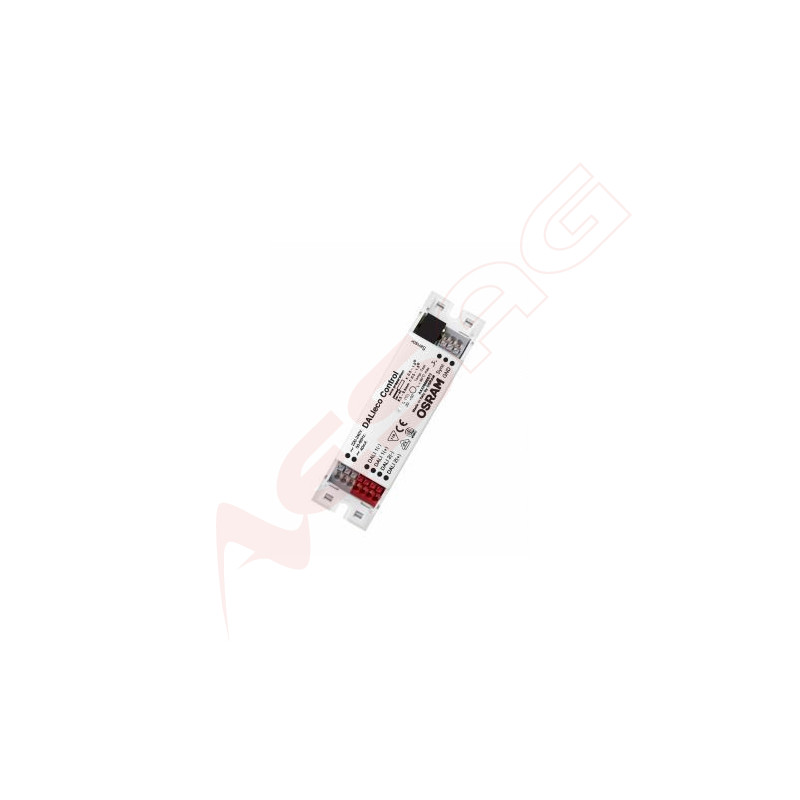

Device name: DALIeco Control
Mains connection: L, N
Operating voltage: 220-240 V AC, 50-60 Hz
Power consumption: 0.2 W - 3.0 W (depending on number of ECGs/sensors)
DALI connections: DA1 +/- & DA2 +/- according to IEC 62386
Control currents: Max. 64 mA (total over both channels / asymmetrical
load permitted)
Max. cable length: 100m (per channel)
Button input: Potential-free normally open contact, max. cable length: 50m
Sensor connection: Up to 4 DALIeco LS/PD LI sensors can be connected
Max. cable length: 25m (total of all sensors)
Ambient temperature: -20 °C ?+ 50°C (operation)
Protection class: IP 20
Protection class: II, protective insulation
CE conformity: EMC according to EN 61547 and EN 55015
Safety according to EN 61347-2-11 and EN 60598
For further technical details please refer to the data sheet.
The connection of electrical components and systems may only be carried out by
qualified specialist personnel!
