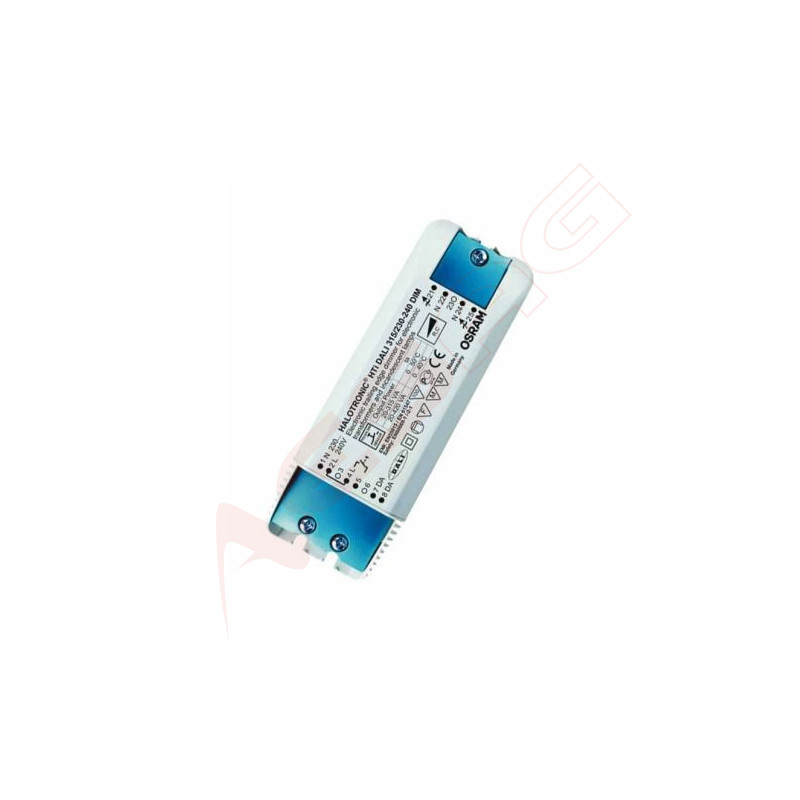

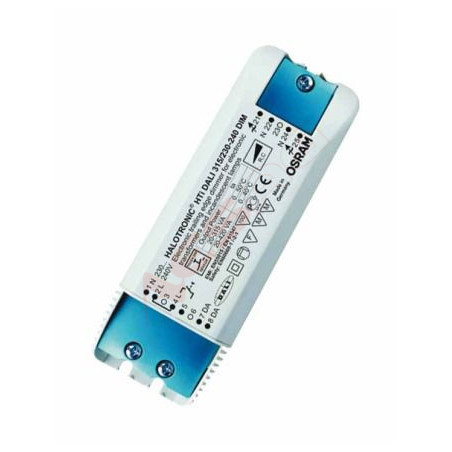

Osram - DIMMER DALI trailing edge phase dimmer

Product features

• DALI trailing edge dimmer
• Dimming of high-voltage halogen and incandescent lamps
• Dimming of many commercially available dimmable LED lamps for mains voltage
• Dimming of electronic transformers
• Standby power consumption: < 0.5 W
• DALI/Touch DIM control signal
• Short circuit protection, overload protection, overtemperature protection: electronically reversible
• Radio interference suppression: according to EN 55015 (A1: 2007)
• Mains current harmonics according to EN 61000-3-2
• Safety: according to EN 61347
• Immunity, interference resistance according to EN 61547
• Device also suitable for special applications that require dimming levels below 1%

Technical Equipment

• Suitable for all OSRAM HALOTRONIC and ET-PARROT ballasts
• Suitable for all dimmable Synergy21 / OSRAM LED lamps for mains voltage
• Lamp power: 20 ~ 315W
• Rated voltage: 220 ~ 240V
• Mains frequency: 50 Hz
• System power: 315W
• Size: 153*54*36mm

For further technical details please refer to the data sheet.

The connection of electrical components and systems may only be carried out by
qualified specialist personnel!
