Synergy 21 LED light panel with power supply connection
Synergy 21 LED light panel with power supply…
1.70

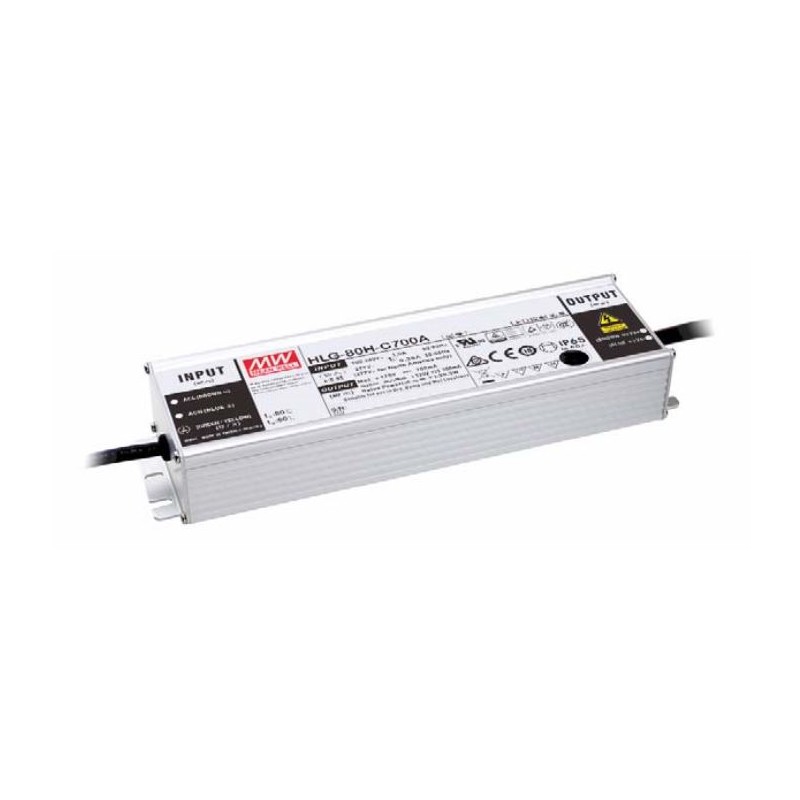

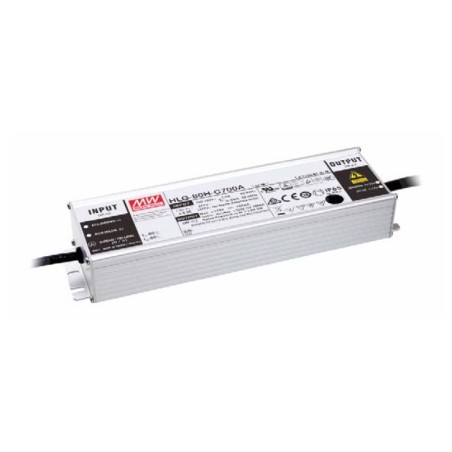

Mean Well power supply - CC Driver 700mA ~129V 0-10V dimm
Mean Well power supply - CC Driver 700mA ~129V 0-10V dimm
Mean Well power supply - CC Driver 700mA ~129V 0-10V dimm
HLG-80H-C700B
Attention: Constant current with 700mA
dimmable (1-10 Volt, PWM dimmer), IP65
Input: 90~305VAC, 127~431VDC
Output: 700mA, 84~129V , 90.3 Watt
Operating temperature: -40°C to +80°C
LxWxH 195.6x61.5x38.8mm
Protection marking: See meanwell.com
Open cable ends
Please read the data sheet carefully.
Calculation example for 700mA LED panels (700mA, ~42V and 30W)
| Number of panels | mA | volt | watt |
|---|---|---|---|
| 1 | 700 | 42 | 30 |
| 2 | 700 | 84 | 60 |
| 3 | 700 | 126 | 90 |
| 4 | 700 | 168 | 120 |
| 5 | 700 | 210 | 150 |
