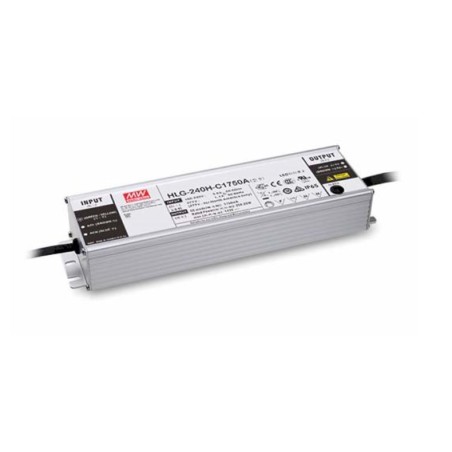

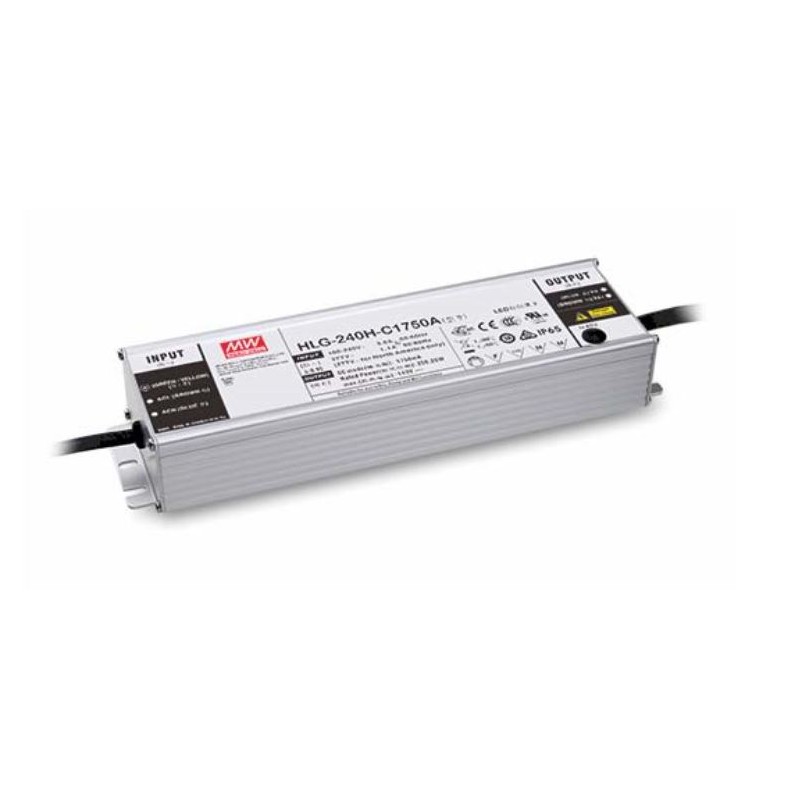

Mean Well power supply - CC Driver 700mA ~357V 0-10V dimm
Mean Well power supply - CC Driver 700mA ~357V 0-10V dimm
Mean Well power supply - CC Driver 700mA ~357V 0-10V dimm
HLG-240H-C700B
Attention: Constant current with 700mA
dimmable (1-10 Volt, PWM dimmer), IP65
Input: 90~305VAC, 127~431VDC
Output: 700mA, 178~257V , 249.9 Watt
Operating temperature: -40°C to +80°C
LxWxH 244.2*68*38.8mm
Protection marking: See meanwell.com
Open cable ends
Please read the data sheet carefully.
Calculation example for 700mA LED panels (700mA, ~42V and 30W)
| Number of panels | mA | volt | watt |
|---|---|---|---|
| 1 | 700 | 42 | 30 |
| 2 | 700 | 84 | 60 |
| 3 | 700 | 126 | 90 |
| 4 | 700 | 168 | 120 |
| 5 | 700 | 210 | 150 |
Details about Mean Well power supply - CC Driver 700mA ~357V 0-10V dimm
Manufacurer:
HLG-240H-C700B
Weight:
HLG-240H-C700B
