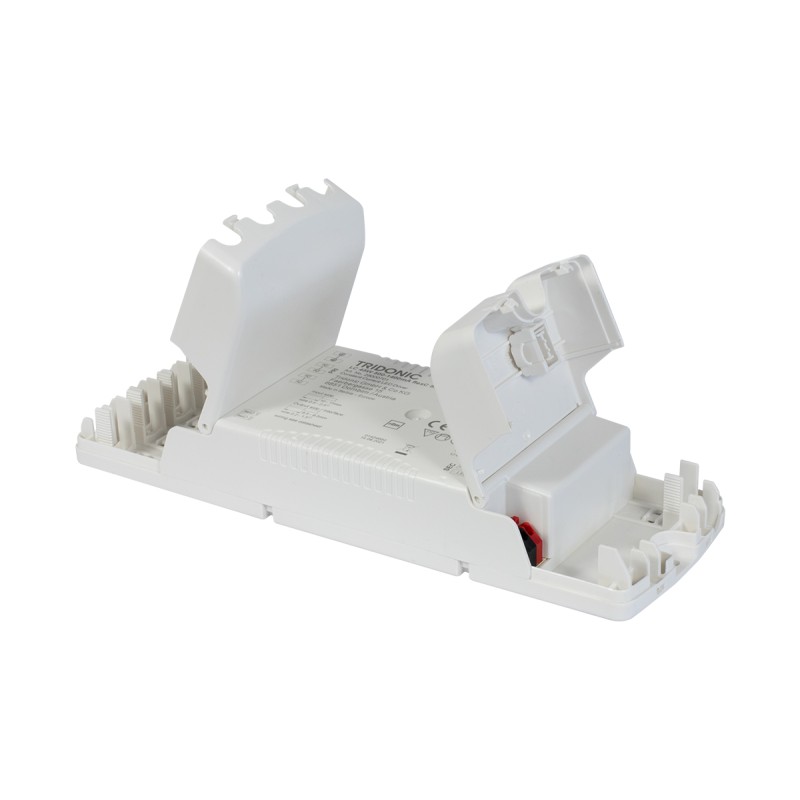

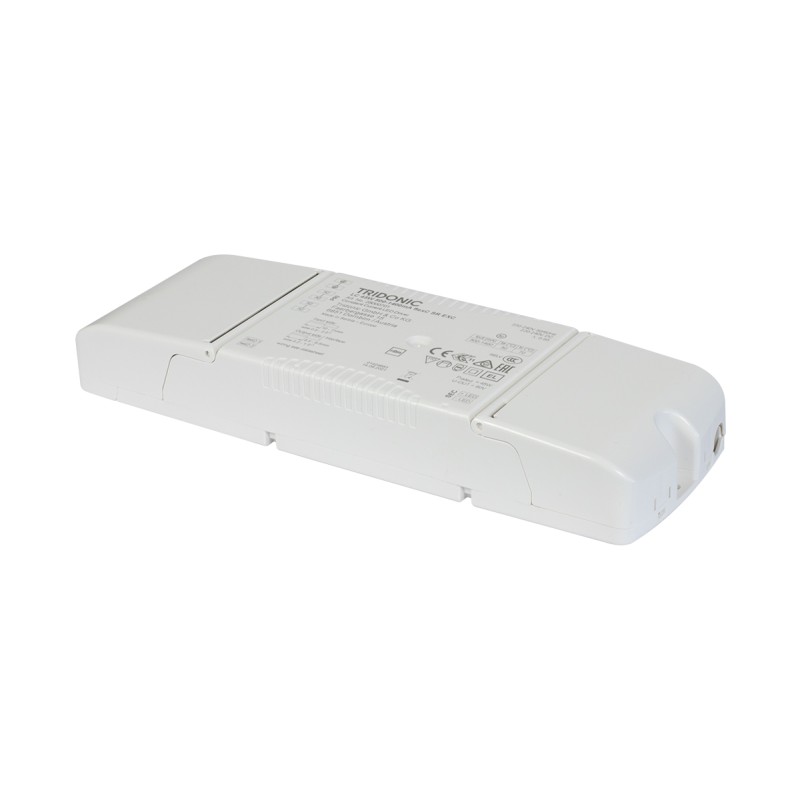

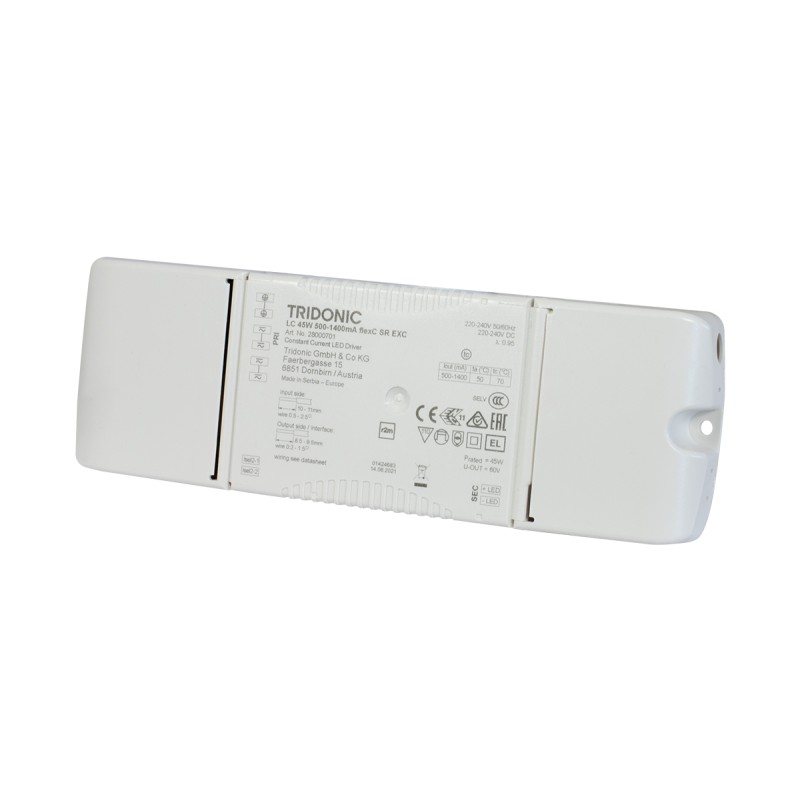

Synergy 21 Tridonic power supply LC 45W 500-1400mA flexC SR EXC

Independent constant current LED driver
Output current adjustable between 500 – 1,400 mA with ready2mains programmer or I-SELECT 2 plugs
Max. output power 45 W
Up to 88% efficiency
Nominal service life up to 100,000 hours

Interfaces
ready2mains (configuration via network)

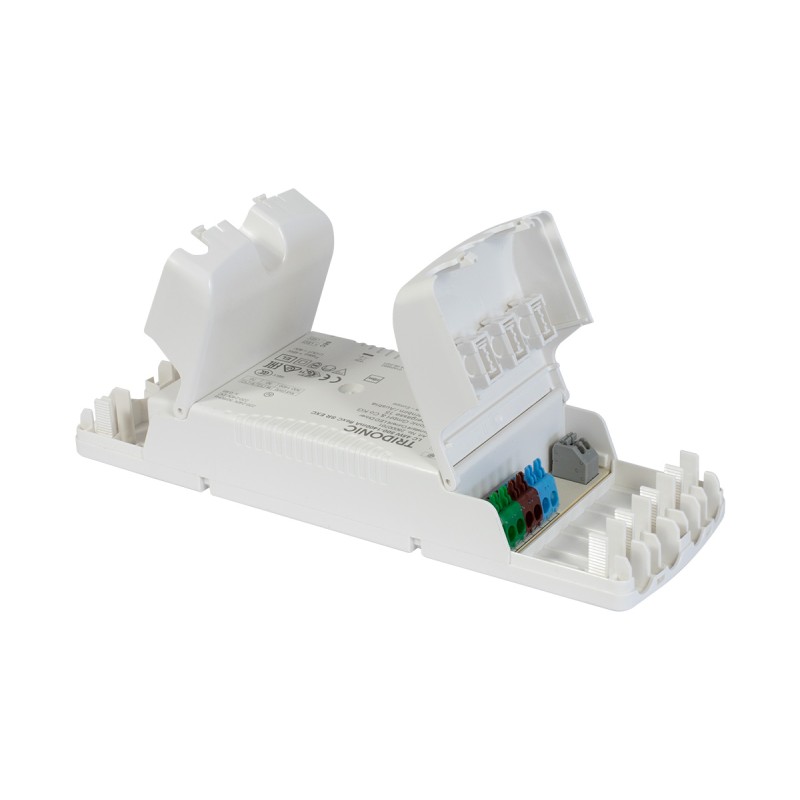

Terminals: 0° / 45° plug-in terminals (input / output)

Features
Adjustable output current in 1 mA steps (ready2mains, I-SELECT 2)
Protection functions (overtemperature, short circuit, overload, open circuit, input voltage range)
Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
Suitable for emergency lighting systems according to EN 50172
For wire diameters up to 2.5 mm²

For further technical details please refer to the data sheet.

The connection of electrical components and systems may only be carried out by
qualified personnel!
