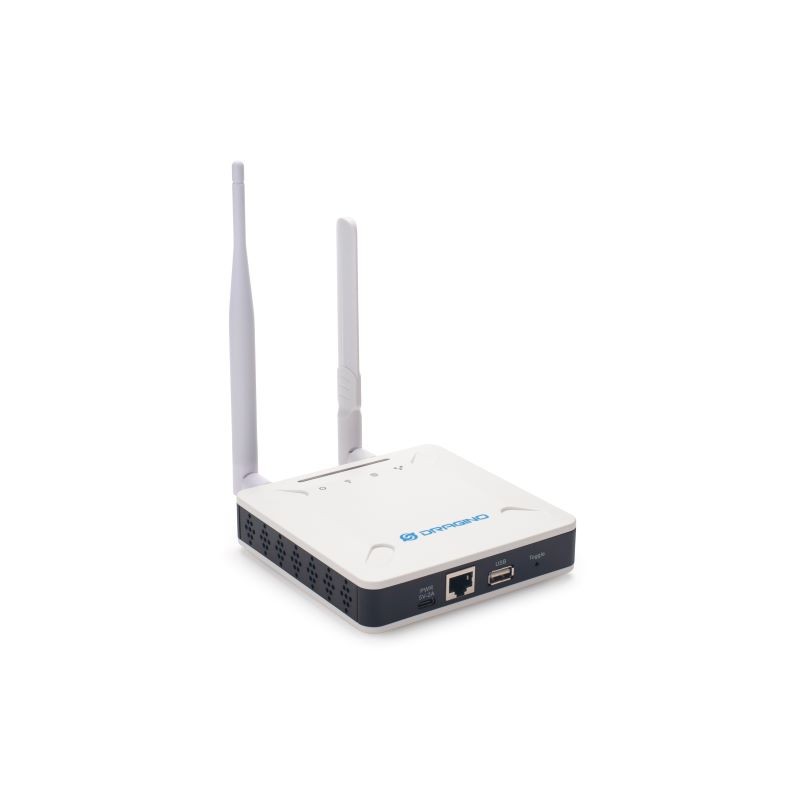

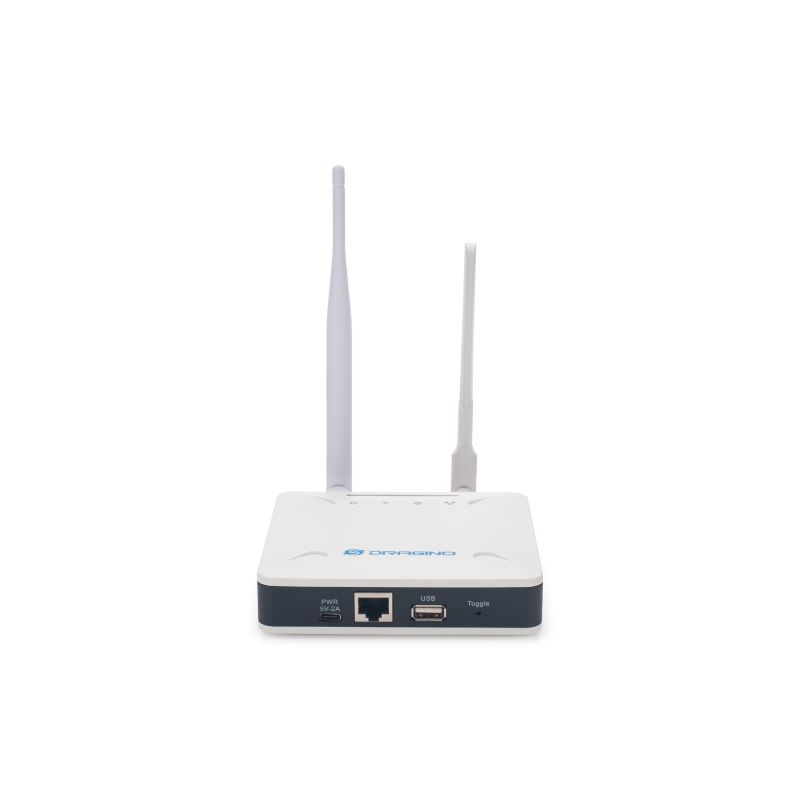

DRAGINIO LG01v2 Single Channel Indoor Gateway

overview

The LG01v2 is an open-source single-channel LoRa gateway. It allows a LoRa wireless network to be connected to an IP network via WiFi, Ethernet or a cellular network (via an optional 4G module). LoRa wireless allows the user to send data and achieve extremely long ranges at low data rates.

The LG01v2 is specifically designed for the peer-to-peer LoRa protocol instead of the LoRaWAN protocol. The LG01v2 uses a single-channel LoRa module to minimize the deployment cost for a private p2p LoRa radio network.

LG01v2 uses an open source Linux system. The user can modify the Linux part and develop their own software based on it. It has a 1.2Ghz quad-core CPU, 4GB eMMC storage and 512MB RAM for most applications.

LG01v2 supports remote management. System integrators can easily monitor and maintain the gateway remotely.

Hardware

• CPU: Quad Core Cortex-A7 1.2Ghz

• RAM: 512MB

• eMMC: 4GB

• Operating temperature: -20 ~ 65°C

• Storage temperature: -20 ~ 65°C

• Power supply: 5V, 2A, DC

interface

• 10M/100M RJ45 connector
• WiFi 802.11 b/g/n

scope of delivery

• 1 x Dragino LG01v2 with LTE
