RAK Wireless WisBlock GNSS Location Module

overview

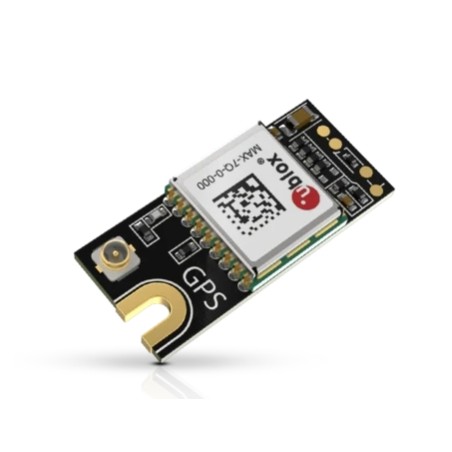

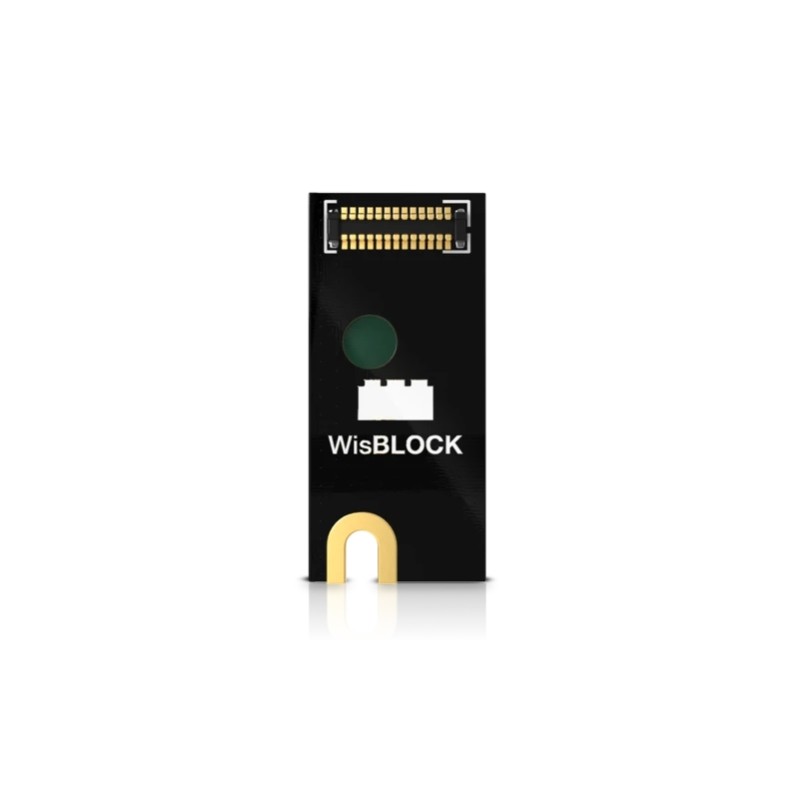

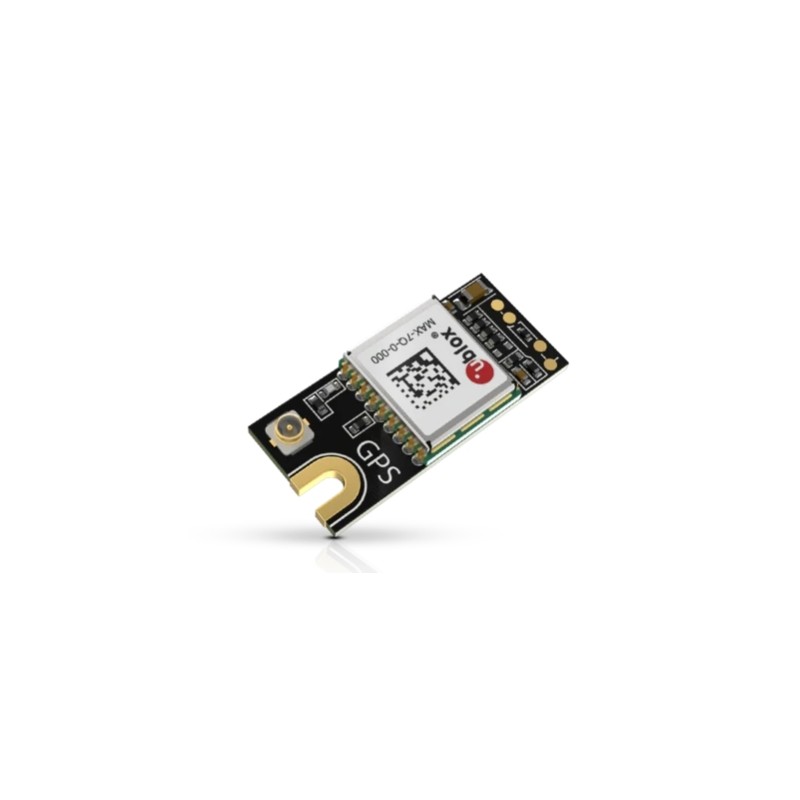

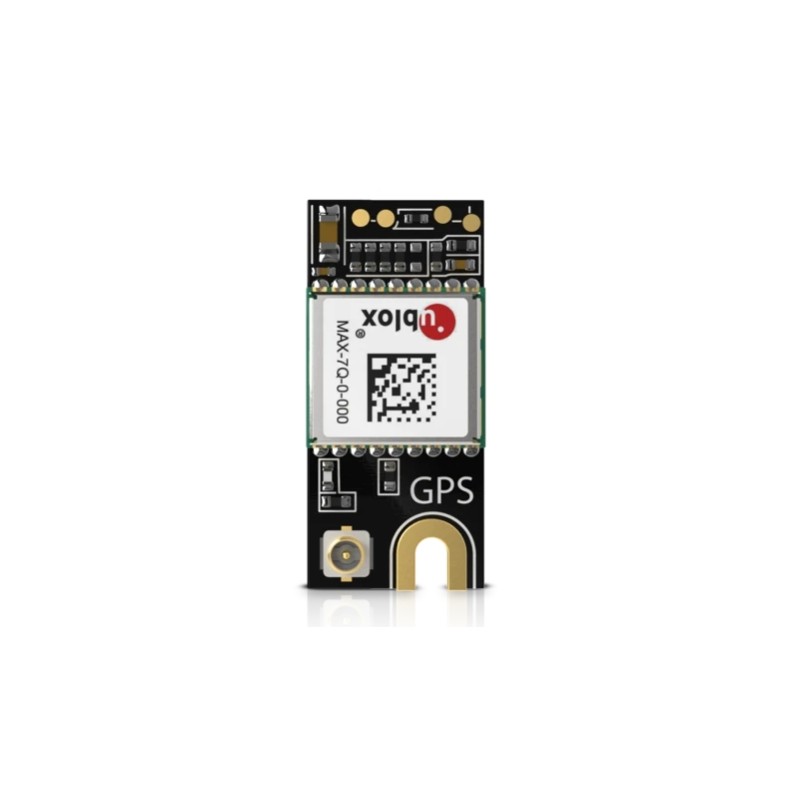

The RAK1910 is a WisBlock sensor that adds GPS location capabilities to the WisBlock system. A ready-to-use SW library and tutorial make it easy to create a GPS-based location tracker. The RAK1910 supports both GPS and GLONASS satellites for location determination. It can determine the location within 1 second and has a high accuracy of 2.5 m in outdoor use. The RAK1910 combined with the RAK4631 WisBlock Core is a ready-to-use system for a GPS-based location tracker that can send location information via LoRaWan® communication, LoRa® point-to-point connections and BLUETOOTH® Low Energy.

The RAK1910 is ideal for battery-powered applications due to its low power consumption. In addition, the WisBlock system allows the module to be switched off completely to further reduce the system's power consumption. The RAK1910 location sensor can be combined with other WisBlock sensors such as an accelerometer or an environmental sensor to collect the following data

Characteristics

• Using the U-Blox MAX-7Q GPS module
• GNSS support for GPS/QZSS and GLONASS
• Low power consumption
• Small form factor
• Quick location determination.

1. 29 s from cold start to first fix.
2. 1 s from warm start

• High accuracy of 2.5 m
• 10Hz refresh rate
• 1 m/s speed accuracy
• 5 degree heading accuracy

scope of delivery

• 1 piece RAK1910
• 1x Active GPS antenna

Link to data sheet

RAK1910 WisBlock GNSS Location Module Datasheet | RAKwireless Documentation Center
