Arduino® MKR Gateway Pro for LoRa

A LoRa gateway with 8 channels!
The Arduino Gateway Pro LoRa® Connectivity is the gateway to the LoRa® world. Discover the endless possibilities of the gateway and the Arduino Create Platform.

Arduino® MKR Gateway Pro for LoRa
The Arduino Pro Gateway Kit provides LoRa® (Long Range) connectivity with ultra-long range and high interference immunity on the 868 MHz radio bands. The gateway offers up to 8 LoRa® channels in the 868 MHz range, allowing it to receive up to 8 LoRa® packets simultaneously, making it the ideal device for use in LoRa WAN gateway applications. It is designed around Semtech's SX1301, which enables a robust connection between the gateway and a huge number of wireless endpoints over a very large distance range. It features the "Listen Before Talk" feature. When enabled, the device continuously monitors the channels and only transmits when the channel is free. It is the perfect companion to the Arduino MKR WAN 1300. Installation, deployment and remote management of the gateway are made incredibly easy by the Arduino Create platform.

This gateway enables developers to leverage LoRa® connectivity in many use cases:

• Automated meter reading
• Environmental monitor
• Smart Cities
• Home and building automation
• Wireless alarm and security system
• Industrial monitoring and control
• Long distance irrigation system
• Agricultural monitoring

The gateway radios are operated by Embit and the Arduino hardware design team.
The network server and packet forwarding running on the Arduino Create platform are supported by A2A.

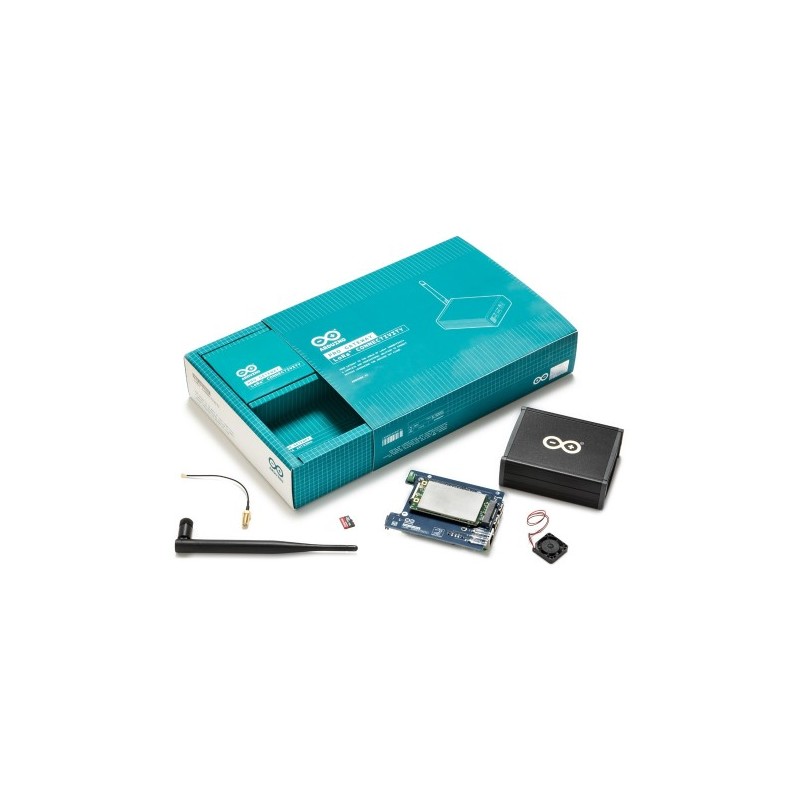

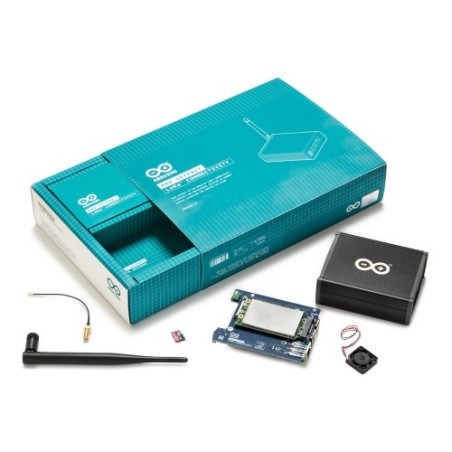

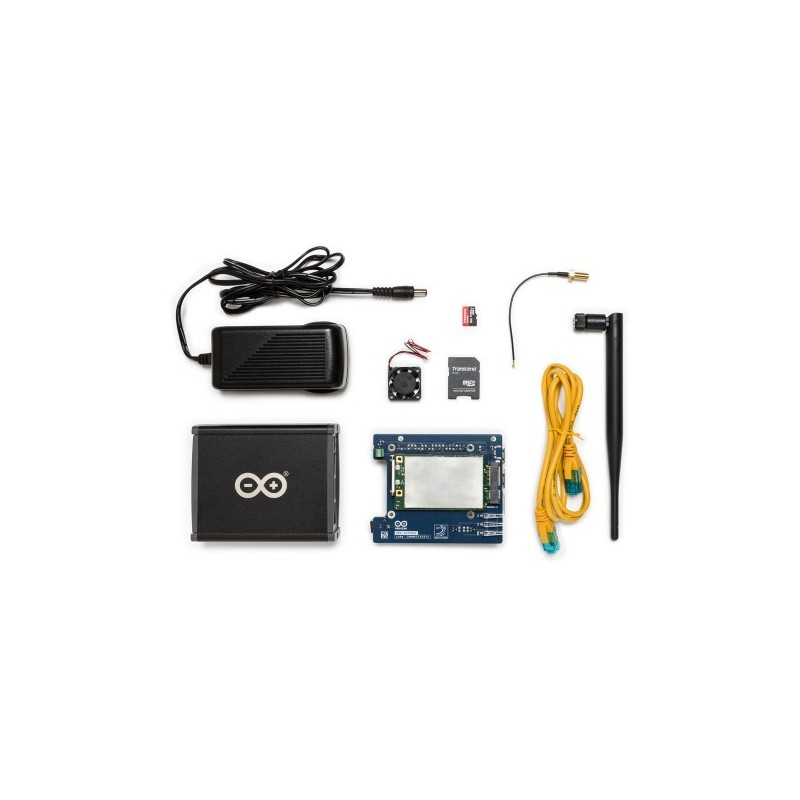

Contents of the kit

• Gateway with LoRa® connectivity, SX1301 baseband chipset
• Adapters for Raspberry Pi
• aluminum casing
• Raspberry Pi 3 Model B+
• 5V power supply
• Ethernet cable
• External antenna
