MultiTech · MultiConnect Conduit 4G & AEP (GNSS version)

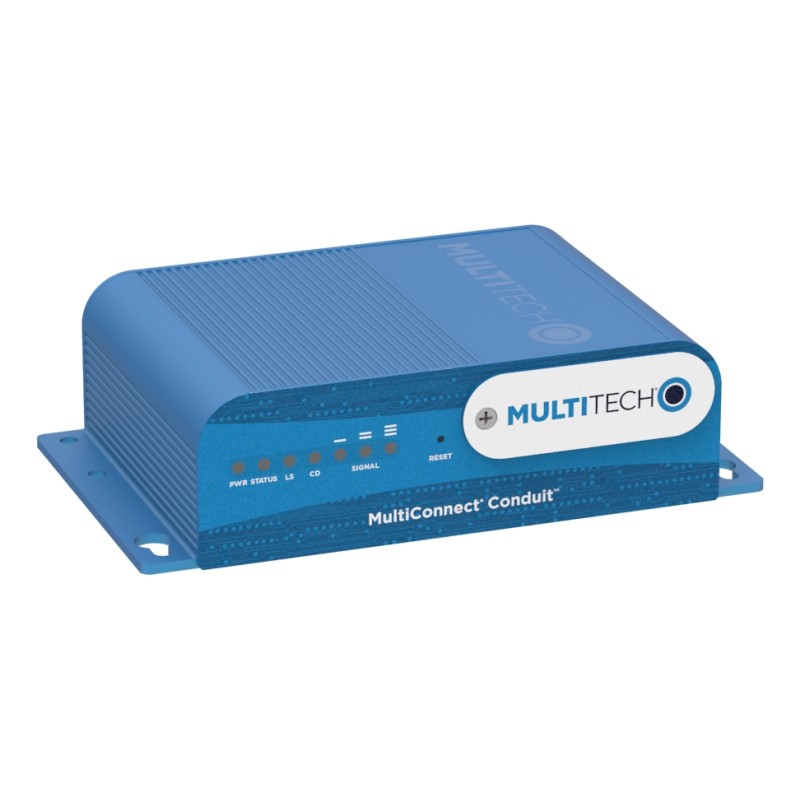

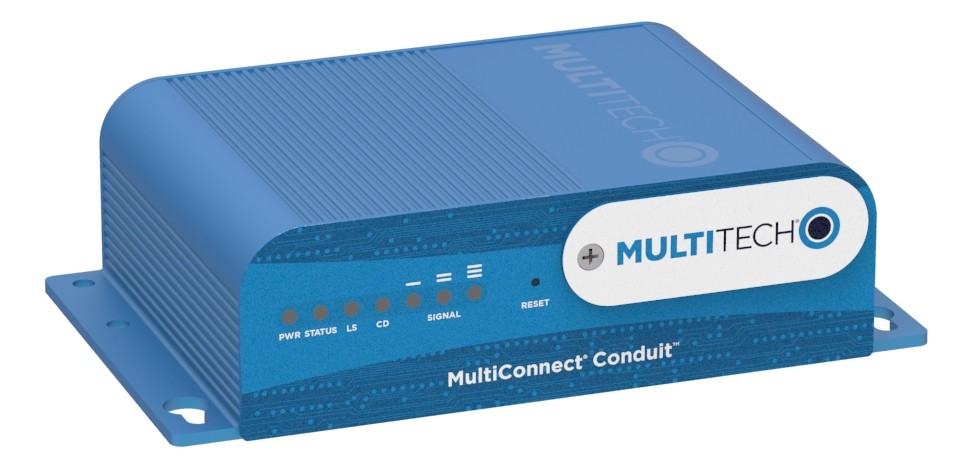

MultiTech MultiConnect Conduit 4G & AEP (GNSS Version)

MTCDT-L4E1-246A-EU-GB

overview

MultiTech Conduit® is the most configurable, manageable, and scalable cellular gateway for industrial IoT applications. Network engineers can configure their Conduit
Powered by DeviceHQ® the world's first IoT application store and device management platform. The Conduit features Wi-Fi/Bluetooth / Bluetooth Low Energy (BT/BLE), GNSS and two accessory card slots that allow users to insert MultiTech mCard™ accessory cards supporting their preferred wired or wireless interface to connect a variety of assets locally to the gateway. Available options include a LoRaWAN® mCard that can support thousands of MultiTech mDot™ and xDot® long range RF modules connected to remote sensors or devices. Quick to deploy and easily customizable and managed, the Conduit communications gateway realizes your IoT application.

Programmable embedded software provides improved security and enables tasks to be executed at the edge of the network for latency and cost optimization.

mPower™ Edge Intelligence embedded software provides programmability, network flexibility, enhanced security and manageability for scalable Industrial Internet of Things (IIoT) solutions. mPower simplifies integration with a variety of popular upstream IoT platforms to optimize data management and analytics while
the programmability and processing capability to perform critical tasks at the edge of the network to reduce latency, control network costs for network and cloud services and
To ensure core functionality - even when network connectivity is not available.

LENS® Embedded Network Server & Key Management Toolset for LoRaWAN® Networks

LENS is a hybrid LoRaWAN® network management platform that enables the deployment and management of LoRaWAN networks at scale. Designed for private and enterprise networks, LENS provides a location-based user account and central management for LoRa® end devices as well as the configuration and control of Conduit®
Gateways. LENS offers the possibility to grant access rights to individual users, add gateways and LoRa end nodes in bulk or create separate organizations
and network segmentation to support different IoT use cases or applications.

Cloud-based application storage and IoT device management

MultiTech DeviceHQ® is a cloud-based toolset for managing the latest generation of MultiTech devices. It includes all the functionality of MultiTech Device Manager, which is already used by many M2M and IoT applications for remote monitoring, upgrades and configuration of entire device populations - whether one device or 1 million. DeviceHQ takes remote device management and maintenance to a new level by providing an application marketplace that allows users to browse applications or create their own and then easily push them to remote devices.

Characteristics

• Wi-Fi communication supports 802.11 a/b//
• g/n 2.4 GHz and 5GHz with WPA2 personal
• Transmission security. Wi-Fi
• Access point and client modes are
• supported at the same time.
• BT Classic and BLE 4.1 communication
• supports local connectivity with automatic
• Pairing with target devices using 128 bit
• Link key length security.
• GNSS module for LoRaWAN packets
• Timestamp and geolocation function
• Ethernet RJ-45 10/100 BaseT for IP backhaul
• Optional 4G-LTE or 3G HSPA+ IP backhaul

LoRa Features

• Certified for Europe 868 Mhz ISM bands
• 14 dBm support for the European region
• ISM band scan for optimal
• LoRa® performance
• Listen Before Talk LoRa Operation Protocol

For technical data see data sheet!!
