overview

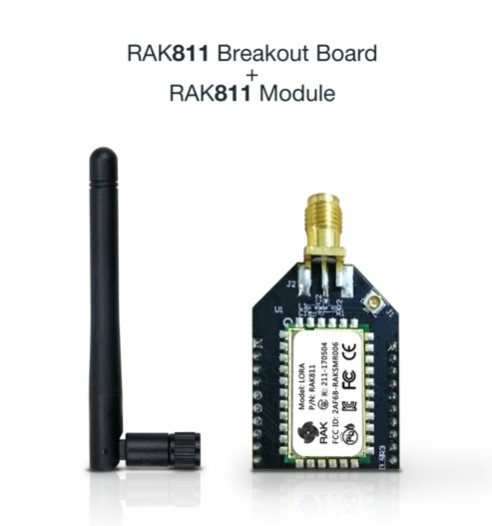

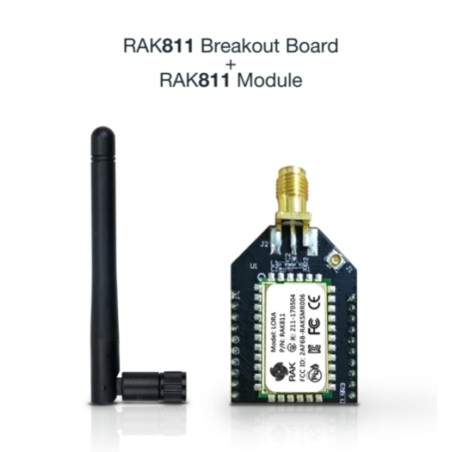

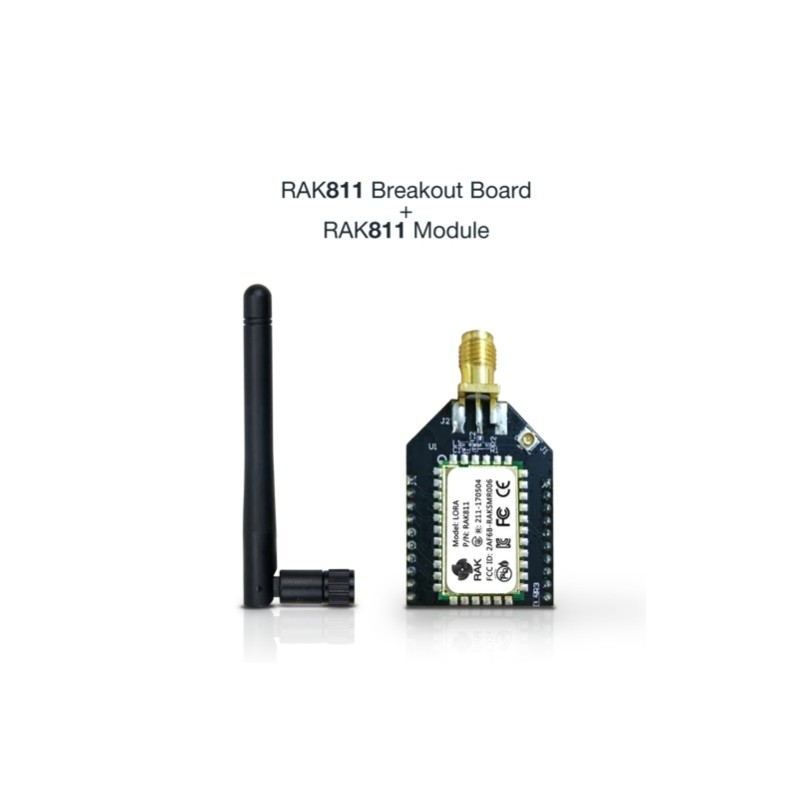

The RAK811 LPWAN breakout module is a combination of the RAK811 chipset and the RAK811 breakout board. It is a barebone LoRa® node solution that strikes a balance between small size and access to GPIOs via a header.

With the Semtech SX1276 at its heart, the RAK811 LPWAN Breakout Module takes advantage of all the benefits of LoRa®. It is characterized by long range and low power consumption.
Its setup is simple and straightforward. The firmware fully supports the LoRaWAN® 1.0.2 stack. The node can operate in a number of modes with different data rates and read data from the connected sensors. This is all configurable via AT commands.

RAK Wireless RAK811 Breakout Board small and open source development board, 868/915MHz, fast testing of LoRa modules, 3.3V, SMA + IPX

Characteristics

• Based on Semtech SX1276
• Full support of the LoRaWAN® 1.0.2 stack
• Supported bands: (EU433, CN470, IN865, EU868, AU915, US915, KR920, AS920 and AS923)
• Output power: 5ï¼20dBm adjustable
• Maximum sensitivity: -130dBm@0.3kps
• Open source firmware with integrated AT command functionality for easy setup
• Theoretical maximum range of 2 km in cities and 15 km in open areas
• Integrates both SMA and iPEX antenna connectors
• Operating temperature: -40°C ~ 85°C (industrial grade)
• Storage temperature: -40°C ~ 85°C (non-condensing)

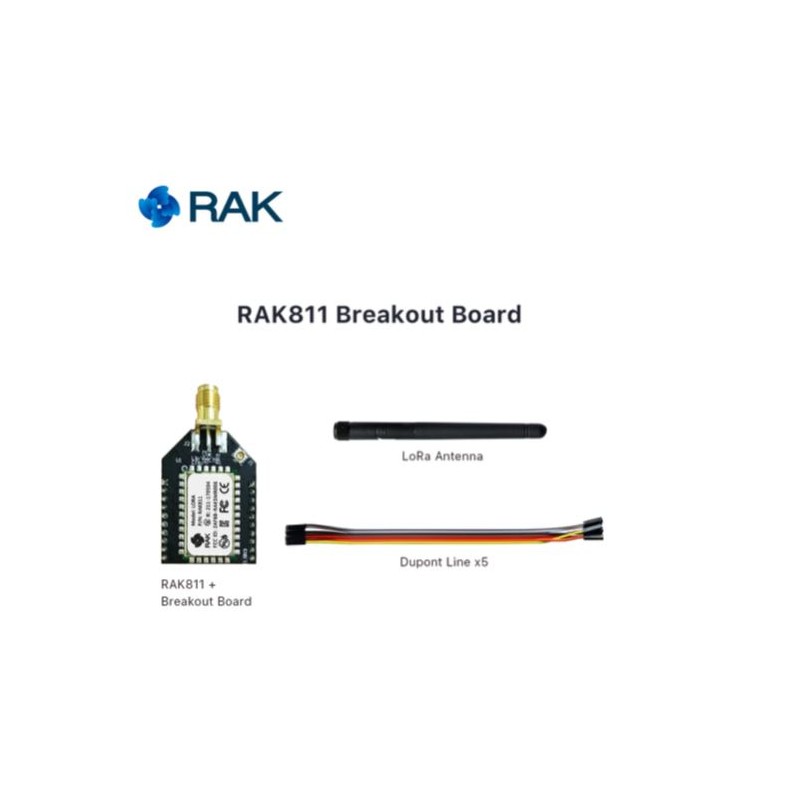

scope of delivery

• 1 x RAK811 Breakout Board
• 1 x LoRa antenna

Link to data sheet

RAK811 Breakout Board Datasheet | RAKwireless Documentation Center
