RAK Wireless WisGate Developer RAK7246

LoRaWAN® Developer Gateway 868 MHz without GPS

overview

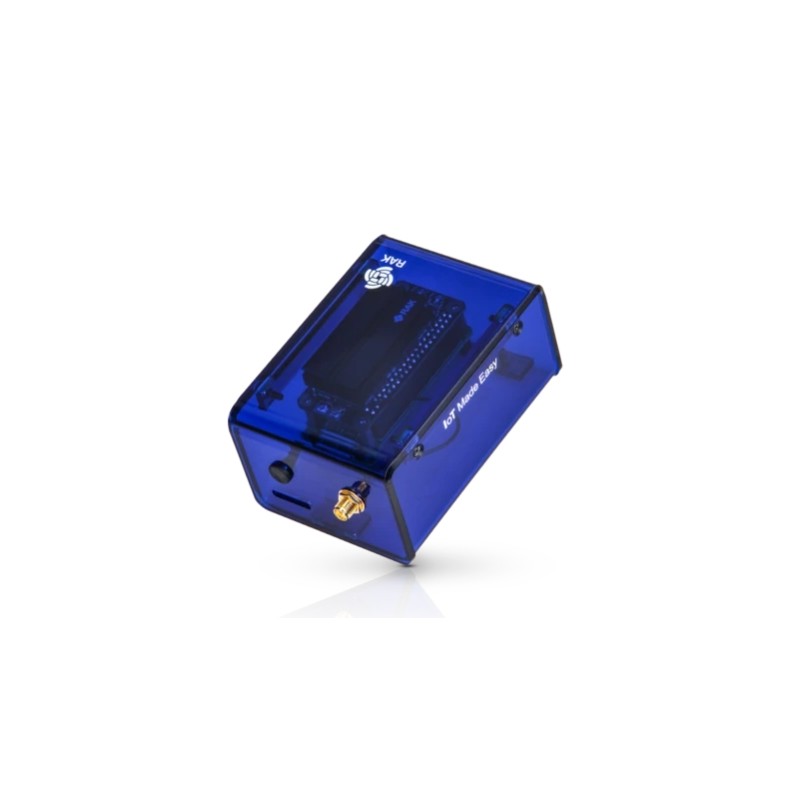

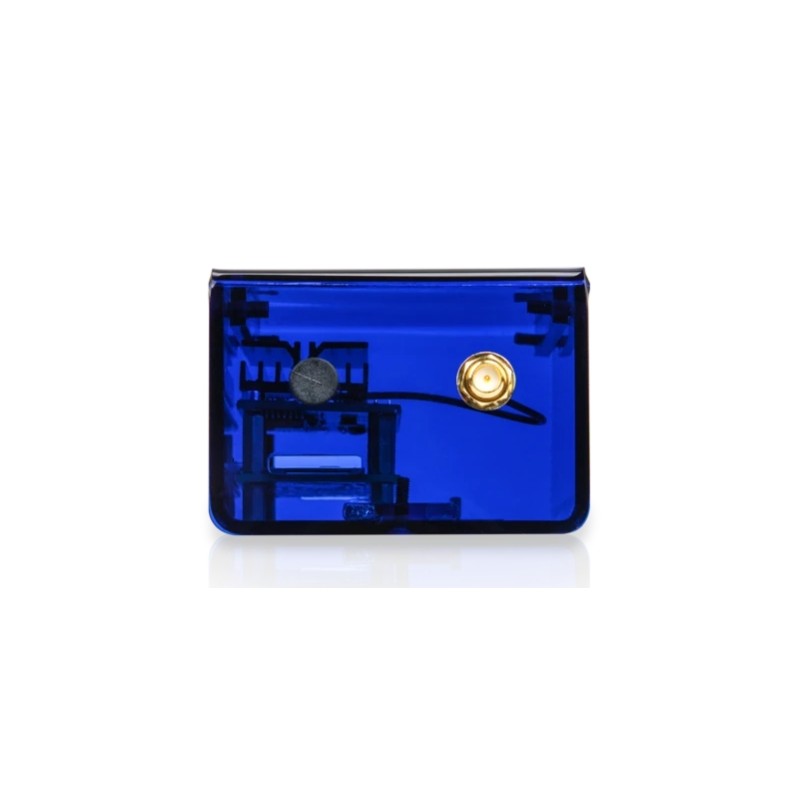

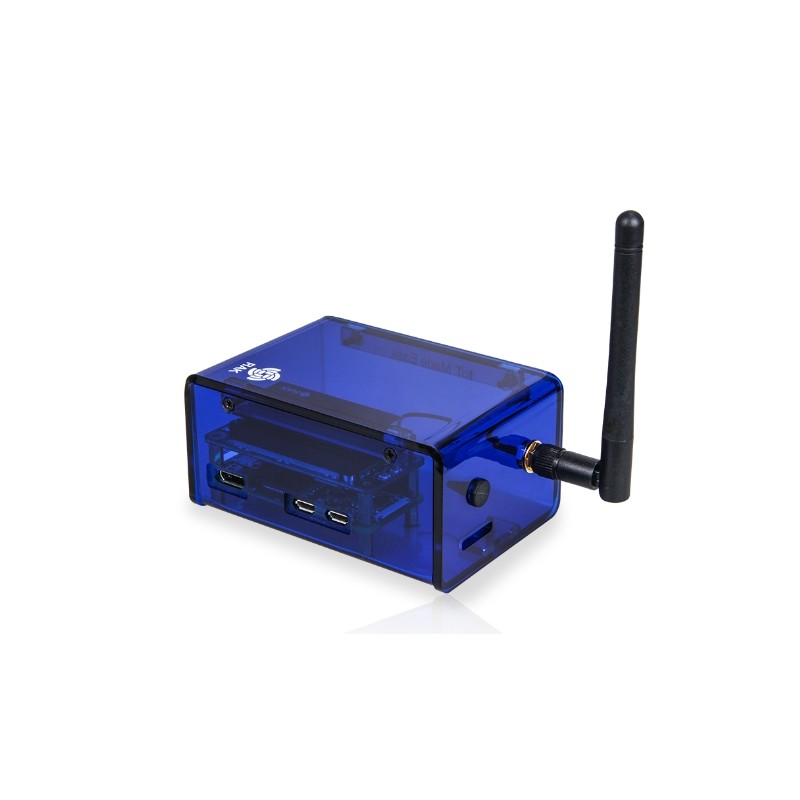

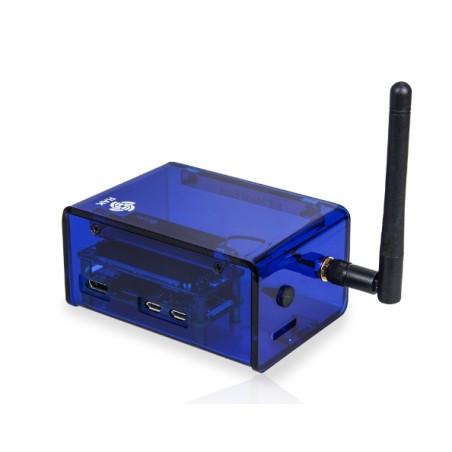

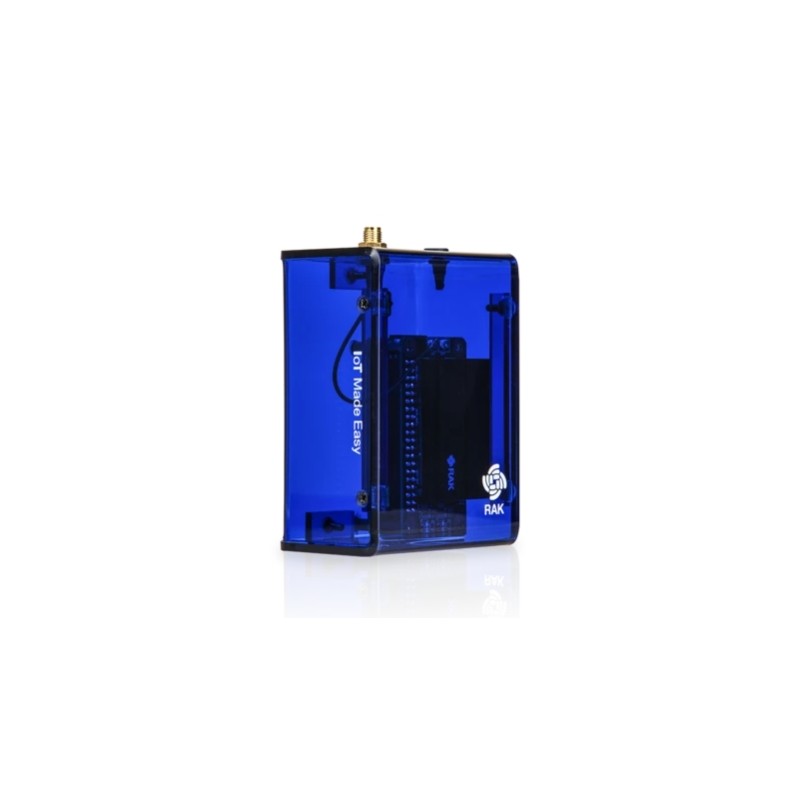

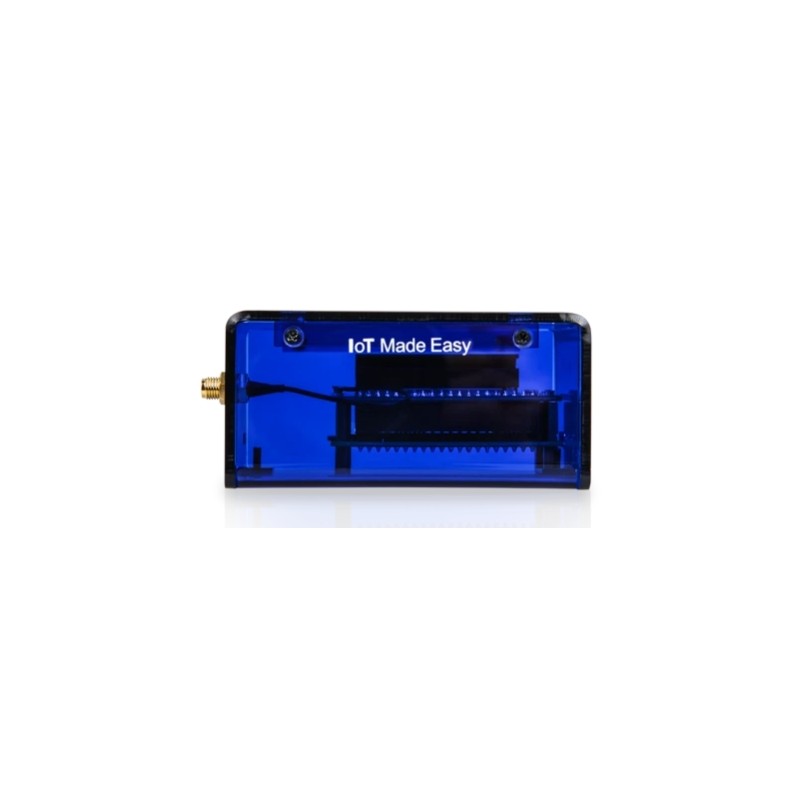

The RAK7246 is a LoRaWAN® developer gateway is the model without GPS function. It is a device consisting of a RAK2246 Pi HAT LoRaWAN® Concentrator module and a Raspberry Pi Zero W.868 MHz version without GPSThe RAK2246 Pi HAT is based on a Semtech SX1308 chip that enables simultaneous reception over 8 LoRa channels covering the entire international high frequency LoRaWAN® space.The RAK7246 is an ideal choice for prototype design, concept verification and demonstration, development evaluation and other scenarios. It is developer-friendly due to its minimalist design that reduces costs and allows easy access to the internals. It is easy to set up, making it a good choice for both experienced and inexperienced LoRa specialists.with SX1308 baseband processor, full 8 uplink channels and 1 downlink channel LoRaWAN® GatewayThe pre-installed cooler guarantees stable thermal performance

Characteristics

• With SX1308 baseband processor, full 8 uplink channels and 1 downlink channel LoRaWAN® Gateway

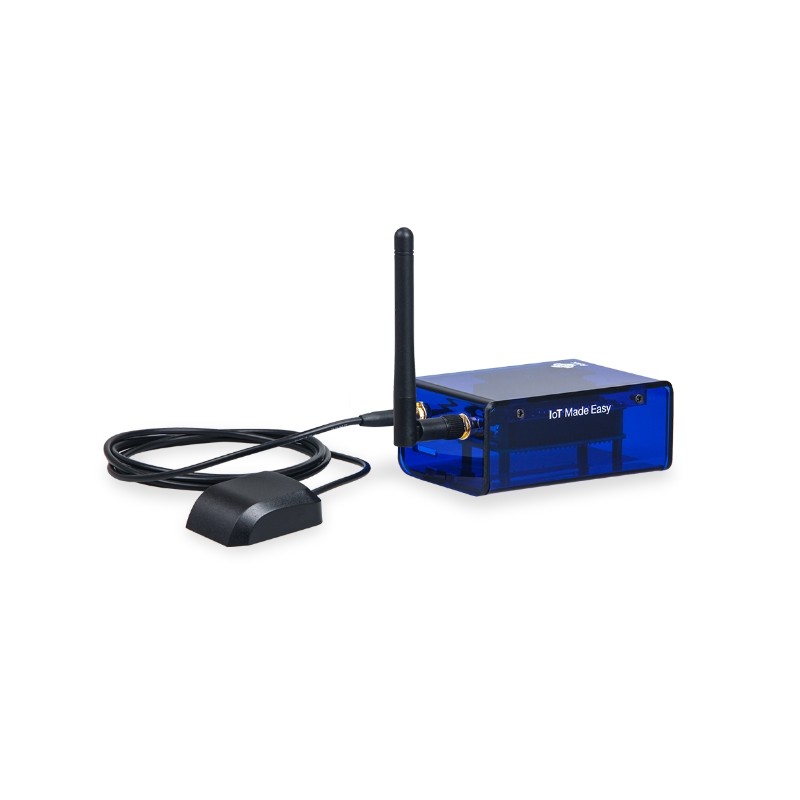

• Built-in Ublox MAX-7Q GPS module
• The pre-installed radiator guarantees stable thermal performance
• Tx max 20dbm, Rx min -139dbm @ SF12 at 125kHz
• Covers the entire LoRa high frequency band range: RU864, IN865, EU868, US915, AU915, KR920, AS923
• Power supply 5V / 2.5A (power adapter sold separately).

scope of delivery

• 1x RAK7246 LoRaWAN® Developer Gateway
• 1x LoRa antenna
• 1x 16GB TF card with pre-installed firmware
• 1x USB cable
