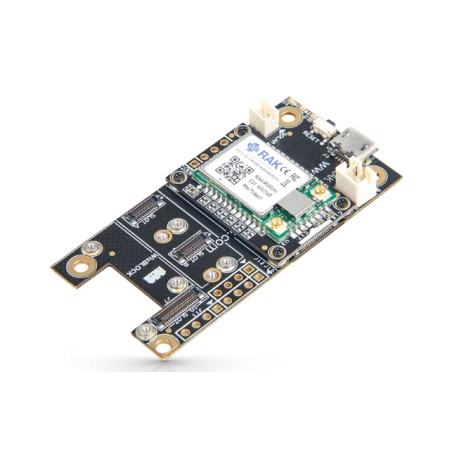

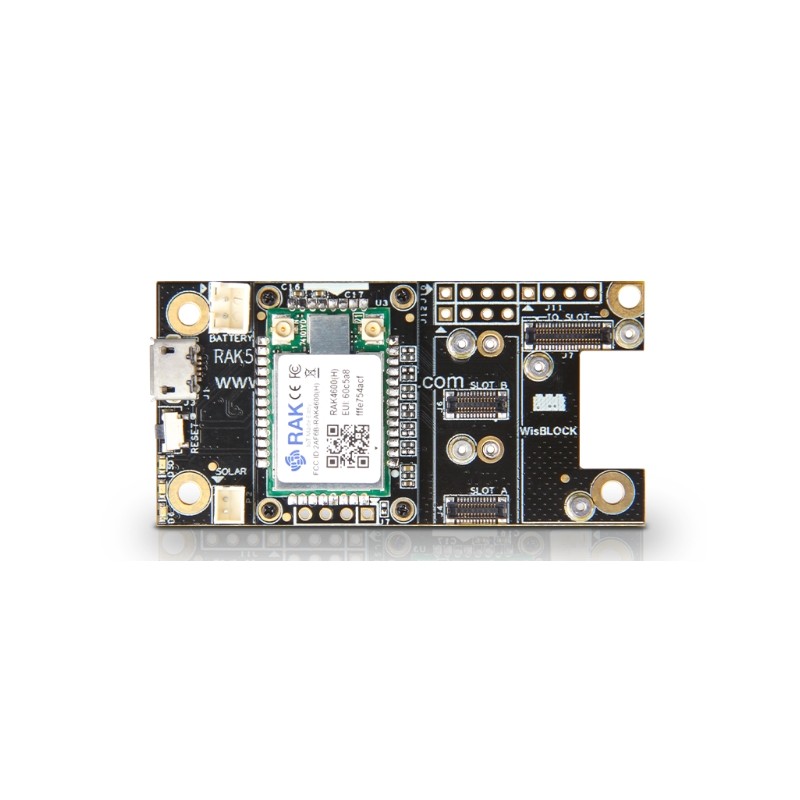

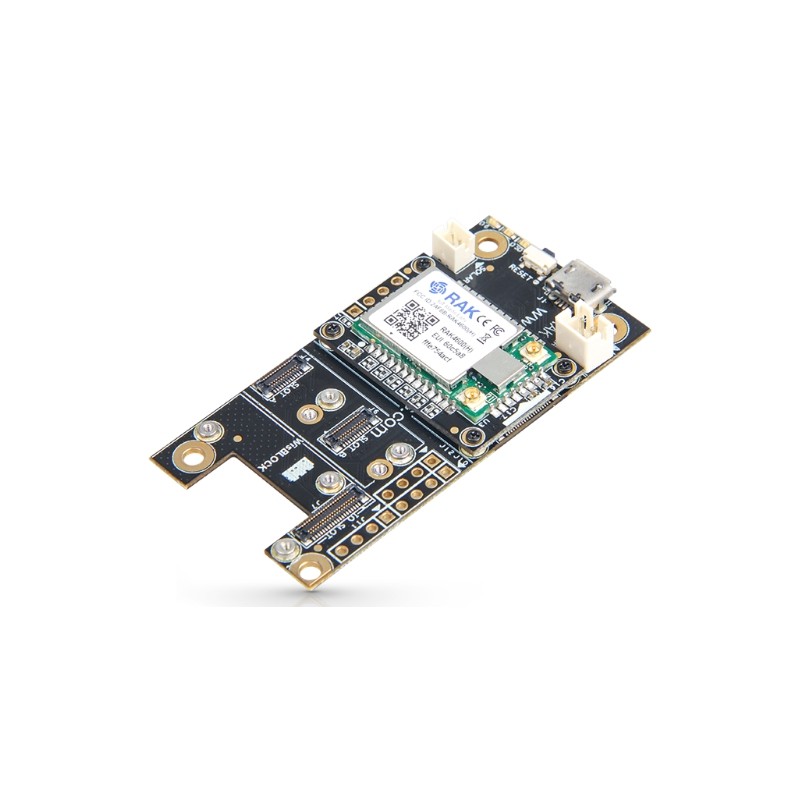

RAK Wireless Wis Duo RAK4600 Evaluation Board

overview

The RAK4600 LPWAN Evaluation Board is a WisDuo product that consists of the RAK4600 LPWAN module and the RAK5005 WisBlock Base. This development board provides access to all serial and GPIO ports for easy configuration. The RAK4600 core module contains an nRF52832 MCU and a SX1276 LoRa® chip, allowing you to quickly and easily develop/test your firmware.

To use this product correctly, make sure you purchase a compatible emulator kit. We recommend that you purchase directly from the SEGGER Microcontroller website to ensure you receive a genuine product.

The RAK Wireless RAK4600 Evaluation Board is a WisBlock product that consists of the RAK4261 (RAK4260 LoRa module + breakout board) and the RAK5005 WisBase. 868MHz version

Characteristics

• LoRa® module for Smart City, Smart Agriculture, Smart Industry
• I/O ports: UART/I2C/GPIO (optional NFC interface)
• Frequency range: 863 to 923 MHz (entire LoRa® high band spectrum)
• Low-power wireless systems with 7.8kHz to 500KHz bandwidth
• LoRa® Tx power up to 20dBm
• BLE5.0 (Tx power -20 to +4 dBm in 4 dB steps)
• Serial Wire Debug (SWD) interface
• Ultra-low power consumption 2.0µA in sleep mode
• 512 KB Flash, 64 KB RAM
• Supply voltage: 2.0 ~ 3.6V
• Temperature range: -40°C to +85°C

scope of delivery

• 1 x RAK4600 EVB
• 1 x Micro USB cable
• 1 x SubG IPEX antenna
• 1 x 2.4G IPEX antenna
• 2 x 4-pin headers
• 9 x Dupont Lines
