RAK Wireless WisDuo Evaluation Board

RAK4260-H-EVB8

overview

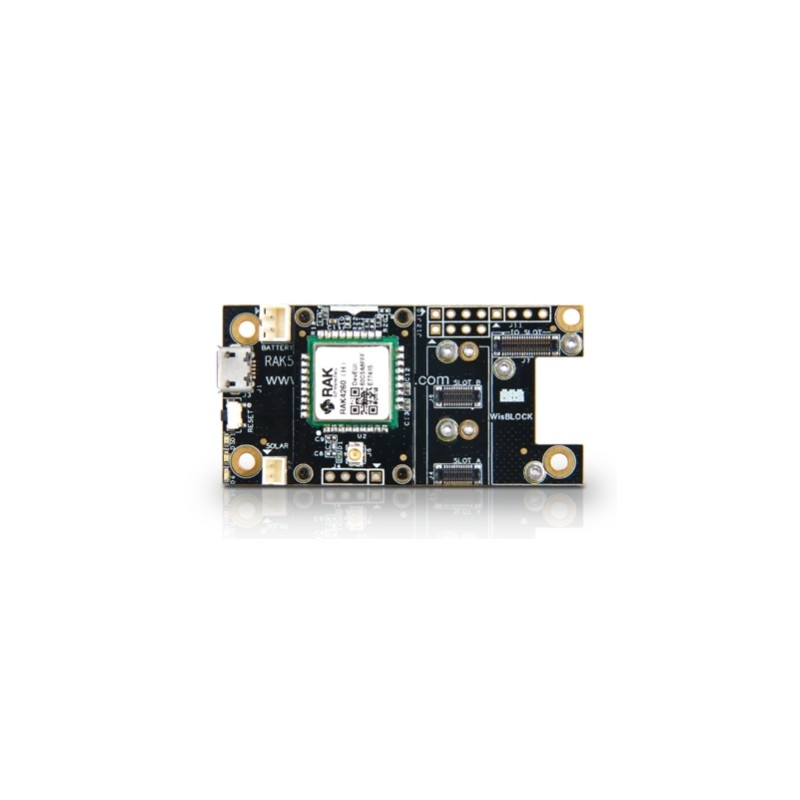

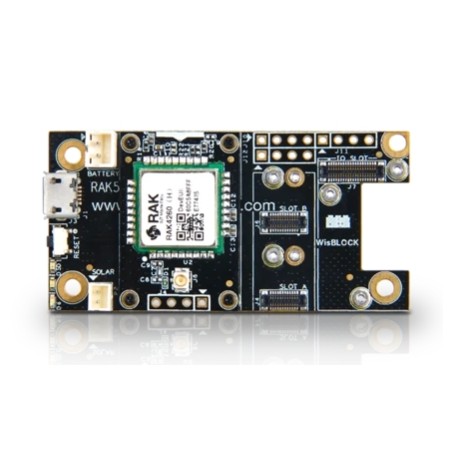

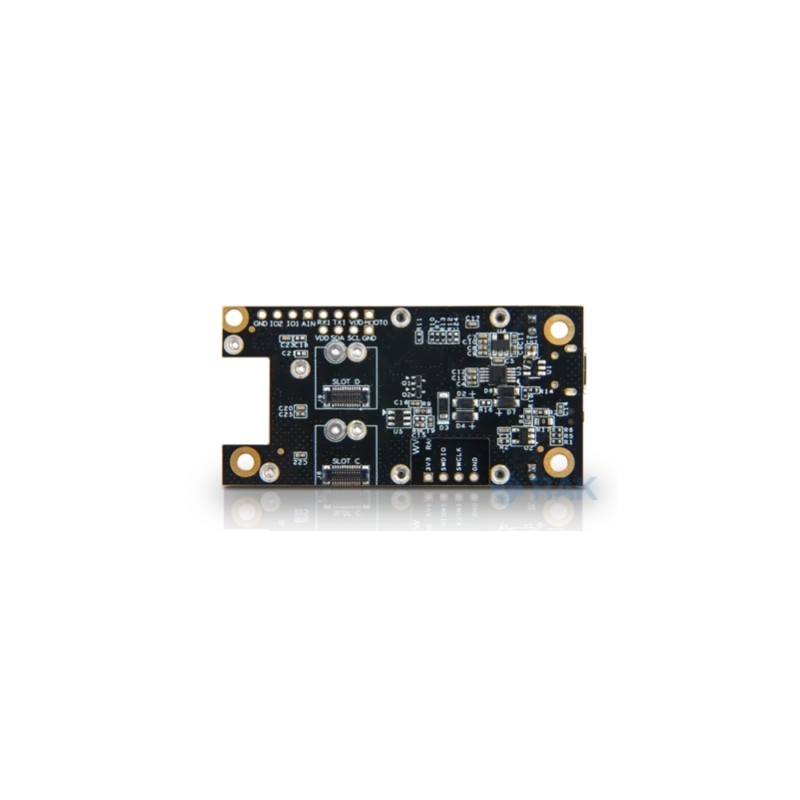

The RAK4260 LPWAN Evaluation Board is a WisDuo product that consists of the RAK4261 (RAK4260 LPWAN Module + Breakout Board) and the RAK5005 WisBlock Base. This development board provides access to all serial and GPIO ports for easy configuration. The RAK4260 core module includes the RAK Unified Interface (RUI) that allows you to develop and test your firmware quickly and easily.

Complete documentation for this product can be found on our website under Documentation.

To use this product properly you will need to purchase a compatible emulator kit. We recommend that you purchase directly from the SEGGER Microcontroller website to ensure you receive a genuine product.

Characteristics

• High-quality, low-power LoRa® device (Microchip ATSAMR34J18 SiP)
• Fully supported frequency coverage from 862 to 1020 MHz (all LoRaWAN® bands)
• High degree of accuracy and stability (32MHz TXCO)
• Maximum transmit power: 20dBm maximum sensitivity: -136dBm transmit current: 17mA (typical)
• A wide range of interfaces: I2C, SPI, ADC, UART, GPIOs

scope of delivery

• 1 x RAK4260 EVB (RAK4261 + RAK5005)
• 1 x Micro USB cable
• 1 x SubG antenna (iPEX)
• 2 x 4-pin headphones
• 9 x Dupont cables
