MultiTech · LoRa · Conduit LoRa Gateway · LTE · IP67 200 Series Base Station · MTCDTIP2-L4E1-B11EKP-L1M

MultiTech Conduit® LoRa LTE Gateway IP67 200 Series

IP67 Conduit for Outdoor LoRa® Deployments (MTCDTIP2 Series)

overview

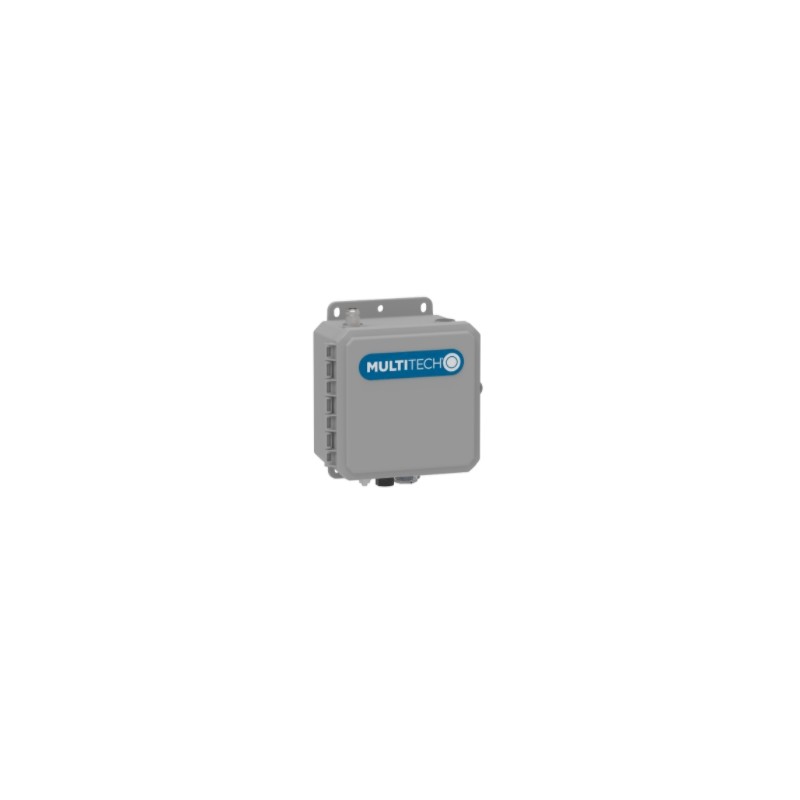

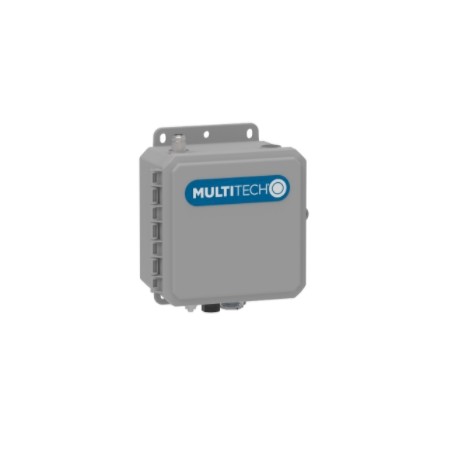

The MultiTech Conduit® IP67 200 Series Base Station is a rugged IoT gateway solution specifically designed for outdoor public or private LoRa® networks. Capable of withstanding the harshest environmental factors such as humidity, dust, wind, rain, snow and extreme heat, this highly scalable and certified IP67 solution supports LoRaWAN® applications in virtually any environment. The enhanced Conduit IP67 solution can support thousands of LoRaWAN certified end nodes, including the MultiTech mDot™ and xDot®. This flexible solution provides persistent, low-power, long-range connectivity to support M2M and IoT applications for both LoRa service providers and individual enterprises looking to extend their LoRa network coverage.

Designed for easy deployment, the solution includes an IP67 enclosure, an external LoRa antenna to improve outdoor range, and Ethernet or optional 4G LTE backhaul. It can be deployed as part of an existing telecom tower, a standalone stand, or a wall mount.

Characteristics

• Significantly extends LoRa network coverage
• External antenna increases LoRa connectivity to remote systems
• Improved design that improves thermal performance and easy external access to SIM and Ethernet ports
• Cloud-based device management platform for over-the-air network diagnostics and configuration
• ISM band scan for optimal LoRa performance
• GNSS for location coordinate information
• Certified for North American 915 MHz and European 868 MHz ISM bands

Technical data
