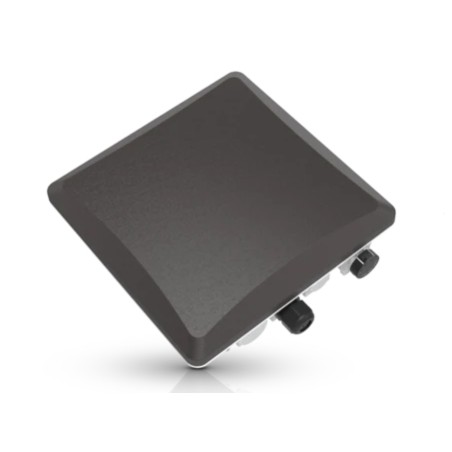

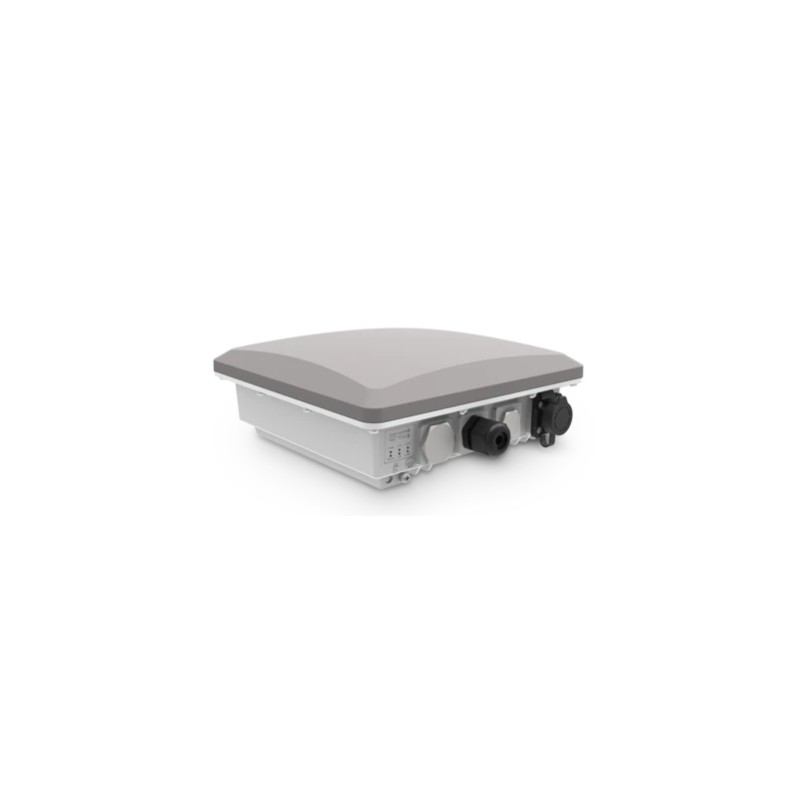

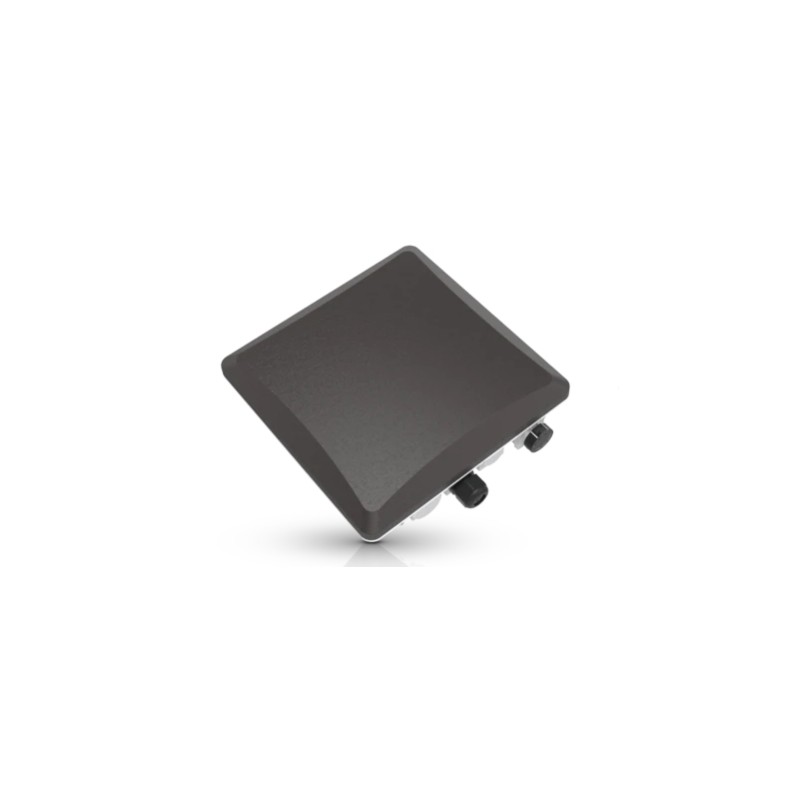

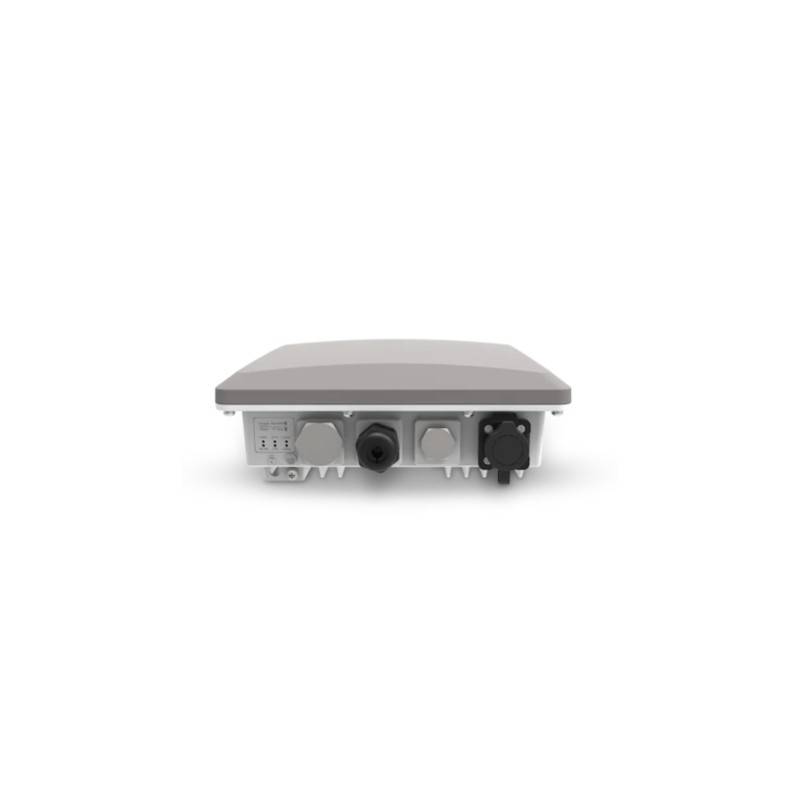

RAK Wireless WisGate Edge Pro Outdoor Gateway

RAK7289 16 Channel, without 4G/LTE

overview

The RAK7289 WisGate Edge Pro is an ideal gateway for commercial IoT use. With its industrial-grade components, it achieves a high standard of reliability.

Supports up to 16 LoRa channels, multi-backhaul with Ethernet, Wi-Fi and cellular connectivity. Optionally there is a dedicated connector for various power options, solar panels and batteries. Thanks to the new housing design the LTE, Wi-Fi and GPS antennas can be housed inside the housing.

The gateway offers a solid out-of-the-box experience for rapid deployment. Since the software and user interface are based on OpenWRT, it is also perfect for developing your own applications (via the open SDK).

This makes the RAK7289 suitable for any application scenario, be it for rapid deployment or customization of the user interface and functionality.

Product Features

Hardware

• Industrial grade IP67/NEMA 6 enclosure with cable glands
• PoE (802.3af) + surge protection
• Two LoRa concentrators with 16 channels
• Backhaul: Wi-Fi and Ethernet
• GPS
• Supports DC 12V or solar power supply with power monitoring (Solar Kit optional)
• Internal antenna for Wi-Fi, GPS, external antenna for LoRa

software

• Built-in network server
• OpenVPN
• Software and user interface based on OpenWRT
• LoRaWAN 1.0.3
• LoRa frame filtering (node whitelisting)
• MQTT v3.1 Bridging with TLS encryption
• Buffering of LoRa frames in packet forwarder mode in case of NS failure (no data loss)
• Full duplex (optional)

scope of delivery

816 channels with and without LTE

• 1 x Gateway
• 1 x Ethernet gable screw connection
• 1 x POE injector
• 1 x Mounting brackets
• 1 x set of screws

!! LoRa antennas not included !!
