RAK Wireless WisBlock Flash Module RAK15001

overview

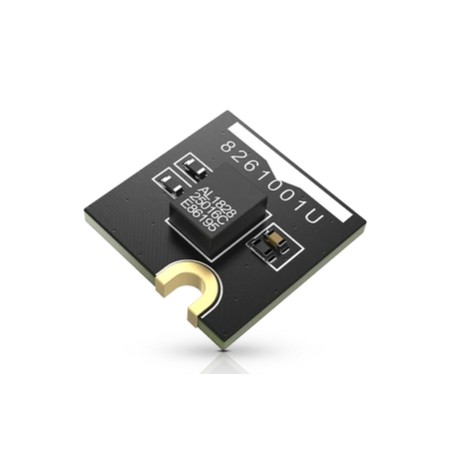

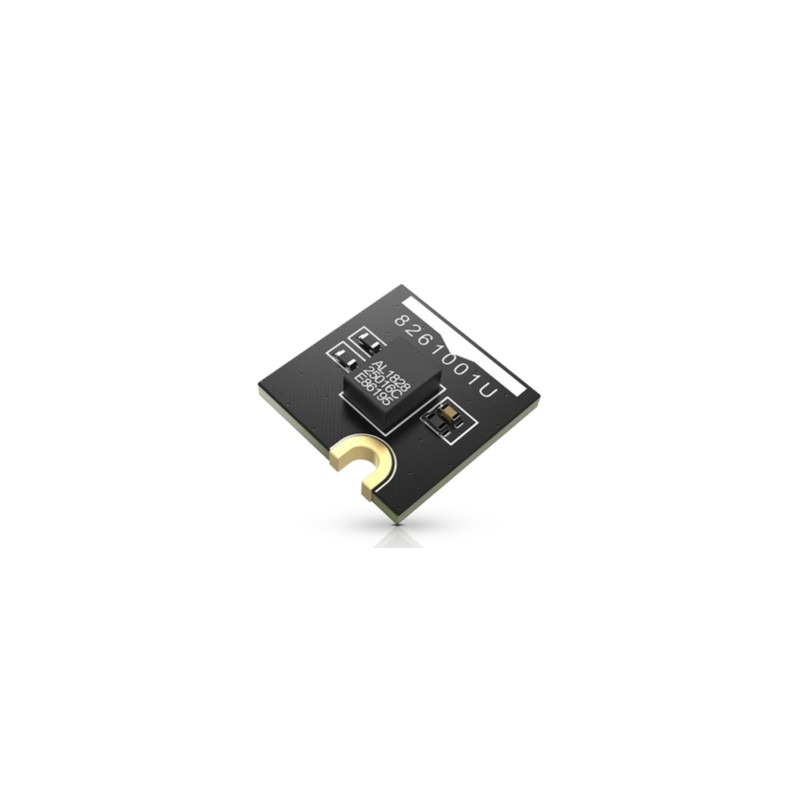

The RAK15001 is a NOR flash module with a 16 Mbit (2 MByte) non-volatile memory. It uses GigaDevice's GD25Q16CNIG (16 Mbit) with a standard SPI interface. This large memory allows you to store large data that your applications need to access frequently, such as conversion tables, lookup tables or images and even sound files. Compared to the EEPROM module, the RAK15001 flash memory module has fewer write/erase cycles, so it is not ideal as a storage for constantly changing data such as sensor values.

Characteristics

• 16 Mbit (2 MByte) capacity
• SPI interface: SCLK, CS#, SI, SO, WP#, HOLD#
• Software/hardware write protection
• GigaDevice GD25Q16 Chip
• Full voltage range: 2.7~3.6 V
• Standby current less than 5 uA
• Temperature range: -40 °C to +85 °C

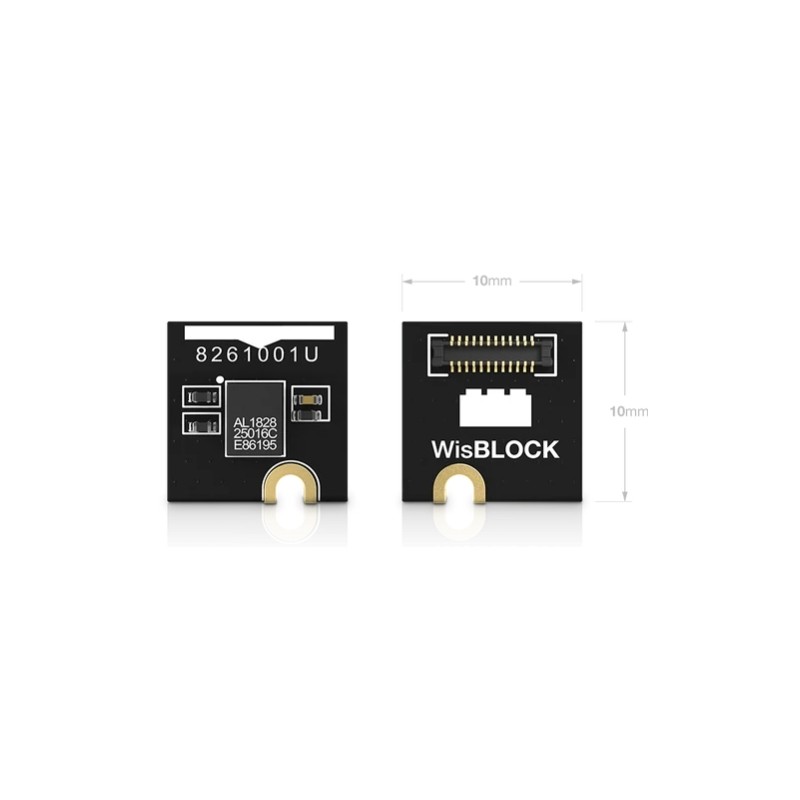

• Module size: 10 x 10mm

Technical data
