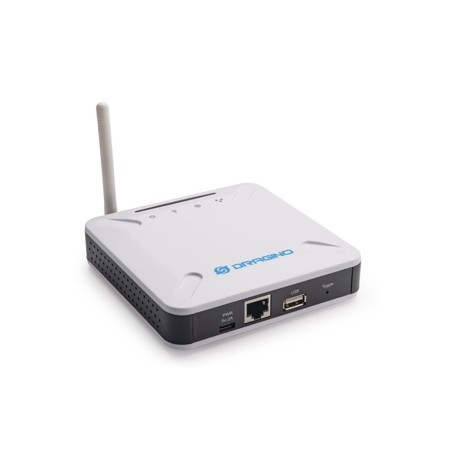

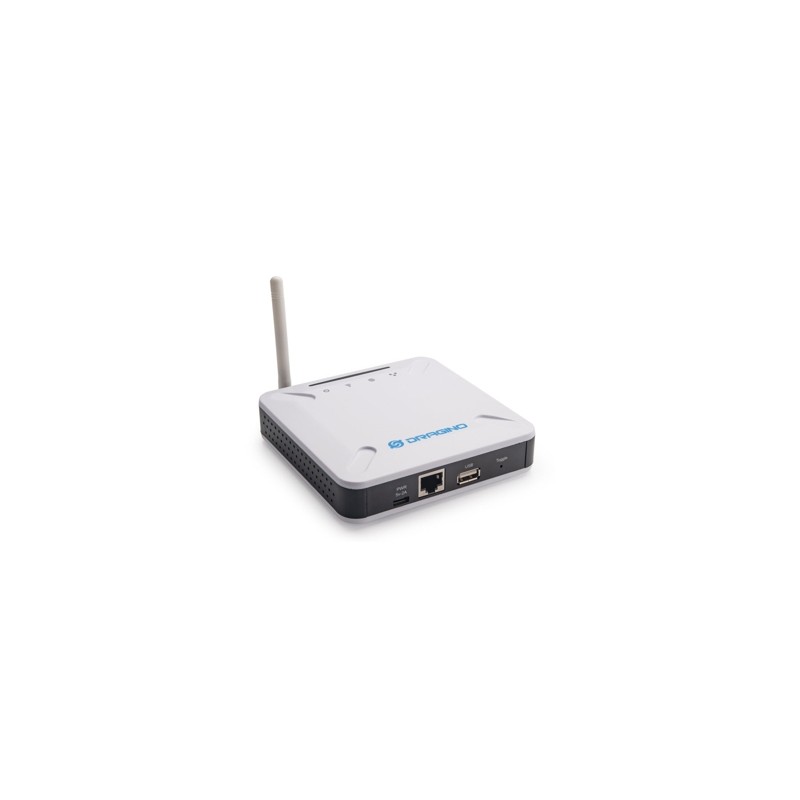

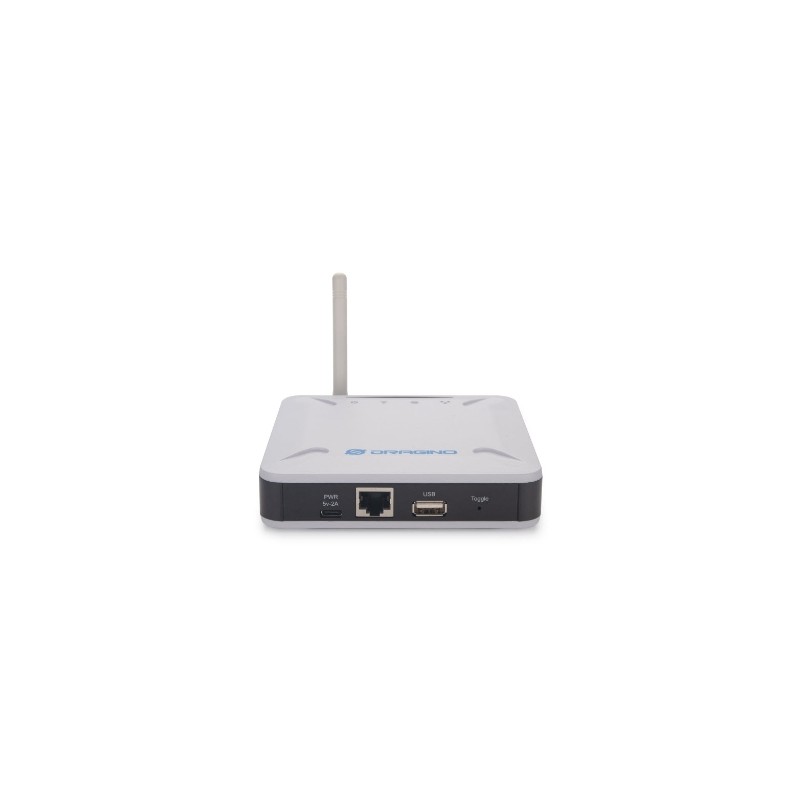

DRAGINO LPS8 Indoor Gateway

overview

The LPS8 is an open source LoRaWAN gateway. It allows you to connect a LoRa wireless network to an IP network via WiFi or Ethernet. LoRa wireless allows users to send data and achieve extremely long ranges at low data rates. The LPS8 uses the Semtech packet forwarder and is fully compatible with the LoRaWAN protocol. It includes a SX1308 LoRa concentrator that provides 10 programmable parallel demodulation paths. The LPS8 has pre-configured LoRaWAN standard frequency bands that can be used for different countries. The user can also customize the frequency bands for use in their own LoRa network.

Characteristics

• Open source OpenWrt system
• Managed via web GUI, SSH over LAN or WiFi
• Emulates 49x LoRa demodulators
• LoRaWAN gateway
• 10 programmable parallel demodulation paths

Applications

• Smart Buildings & Home Automation
• Logistics and Supply Chain Management
• Smart Metering
• Smart Agriculture
• Smart Cities
• Smart Factory

LoRa Spec

• 1 x SX1308 + 2 x 1257 LoRa transceiver

General specifications

• 10M/100M RJ45 Ports x 1
• 1 x 2.4G WiFi (802.11 bgn)
• 1 x USB host port
• Power input via USB Type-C: 5V, 2A

scope of delivery

• 1 x Dragino Indoor Gateway LPS8

Also available as outdoor version DLOS8.
