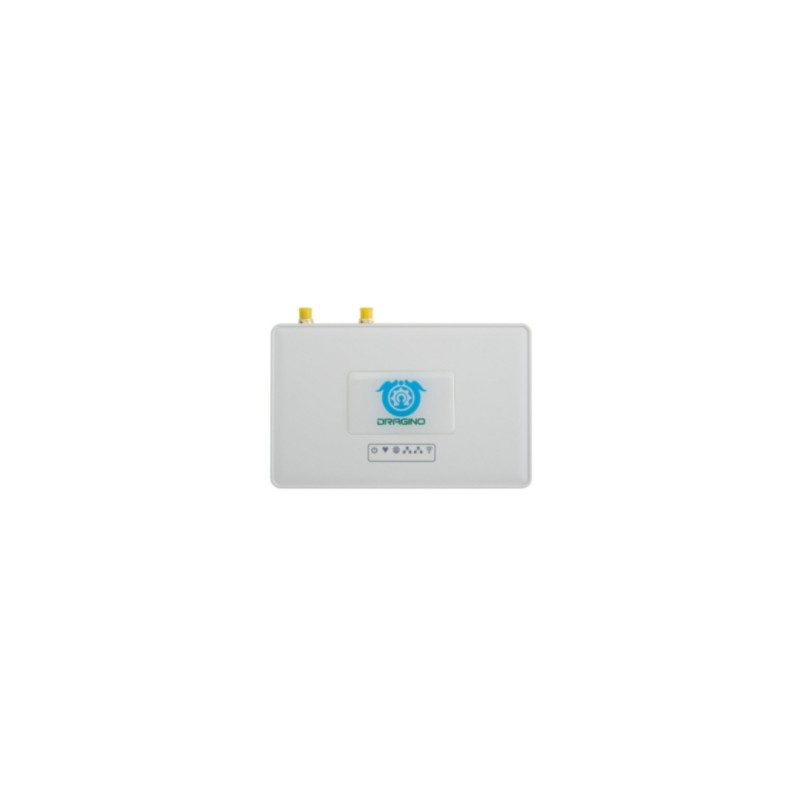

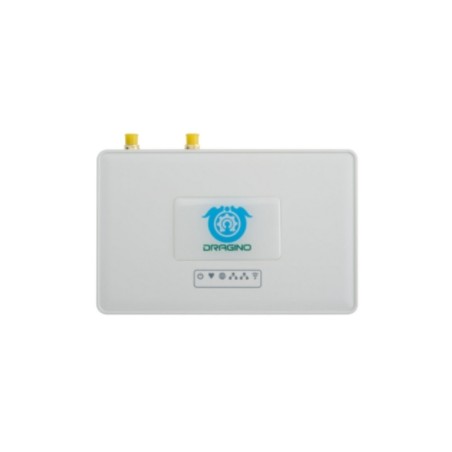

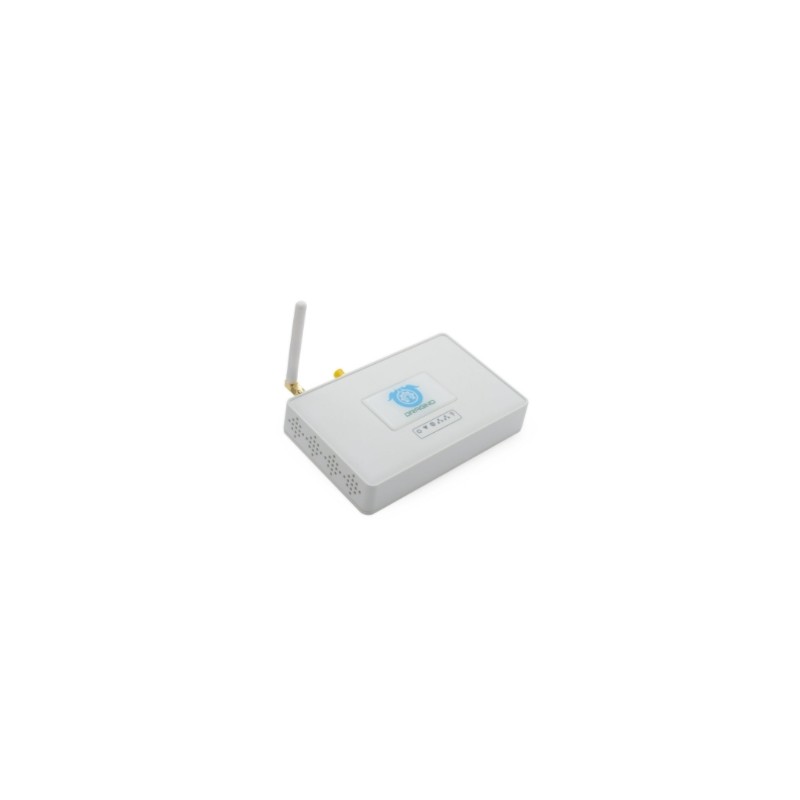

DRAGINO LG308-868 Indoor Gateway

LG308-868 (without 4G/LTE)

overview

The LG308 is an open source LoRaWAN Pico Gateway. It allows LoRa wireless networks to be connected to an IP network via WiFi, Ethernet or 3G/4G cellular via an optional LTE module. LoRa wireless allows users to send data and achieve extremely long ranges at low data rates.

The LG308 uses Semtech Packet Forwarder and is fully compatible with the LoRaWAN protocol. It includes a SX1301 LoRa concentrator and 2 x SX1257, providing 10 programmable parallel demodulation paths.

The LG308 comes with pre-configured standard LoRaWAN frequency bands that can be used for different countries. The user can also customize the frequency bands for use in their own LoRa network.

LG308 has an optional built-in LoRaWAN server. System integrators can use it to integrate into their existing IoT service without setting up their own LoRaWAN server or using a third-party LoRaWAN service.

Characteristics

• Open source system OpenWrt
• Managed via web GUI, SSH over LAN or WiFi
• Internet connection via LAN, WiFi, or 3G/4G via optional LTE module
• Emulates 49x LoRa demodulators
• LoRaWAN gateway
• 10 programmable parallel demodulation paths

scope of application

• Smart buildings and home automation
• Logistics and supply chain management
• Intelligent measurement technology
• Smart Agriculture
• Smart Cities
• Smart Factory

Technical data

LoRa Specification

• 1 x SX1301 + 2 x 1257 LoRa transceiver

General specification

• 10M/100M RJ45 connectors x 2
• 1 x 2.4G WiFi (802.11 bgn)
• 1 x USB host port
• 1 x Mini PCIe interface
• Power input: 12v, 1A

Cellular 4G LTE (optional)

• Quectel EC25 LTE Module (Click the link to find the right model for your region)
• Micro SIM slot

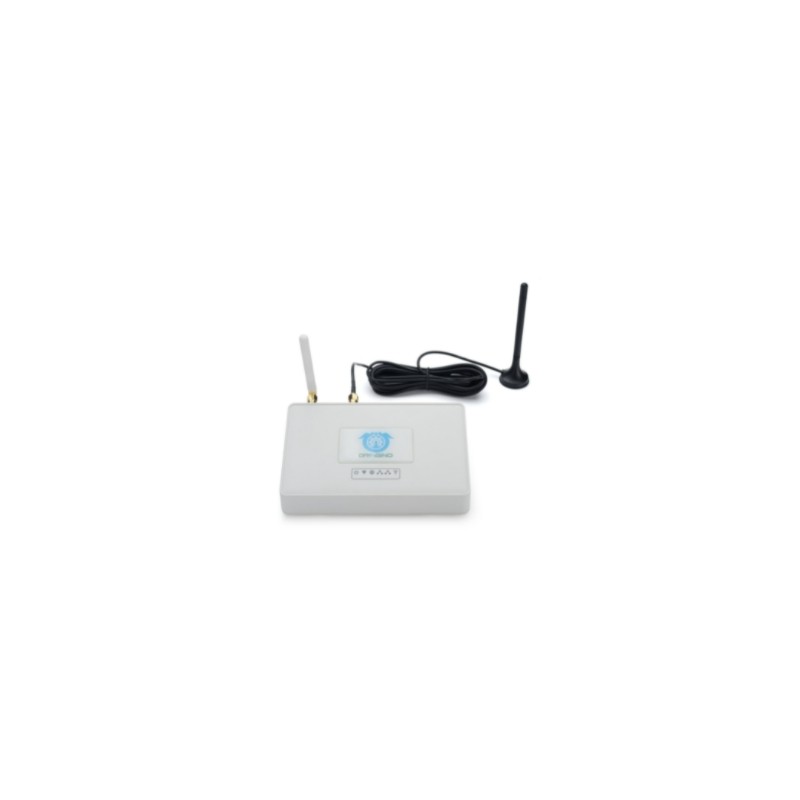

• Internal 4G antenna + external 4G sticker antenna.
• Up to 100Mbps downlink and 50Mbps uplink data rates
• Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
• MIMO technology meets the data rate and connection security requirements in wireless modem communication systems
