LoRa ELSYS LoRAWAN ERS CO2 room sensor for temperature, humidity, light, motion and CO2

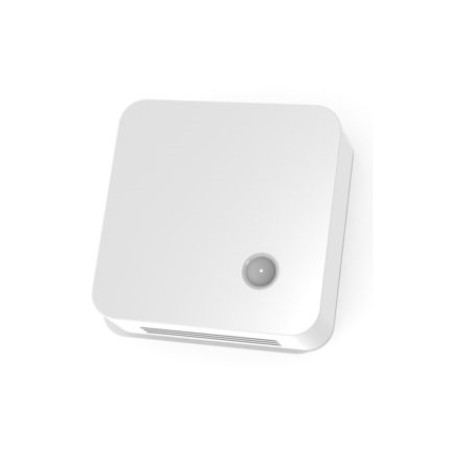

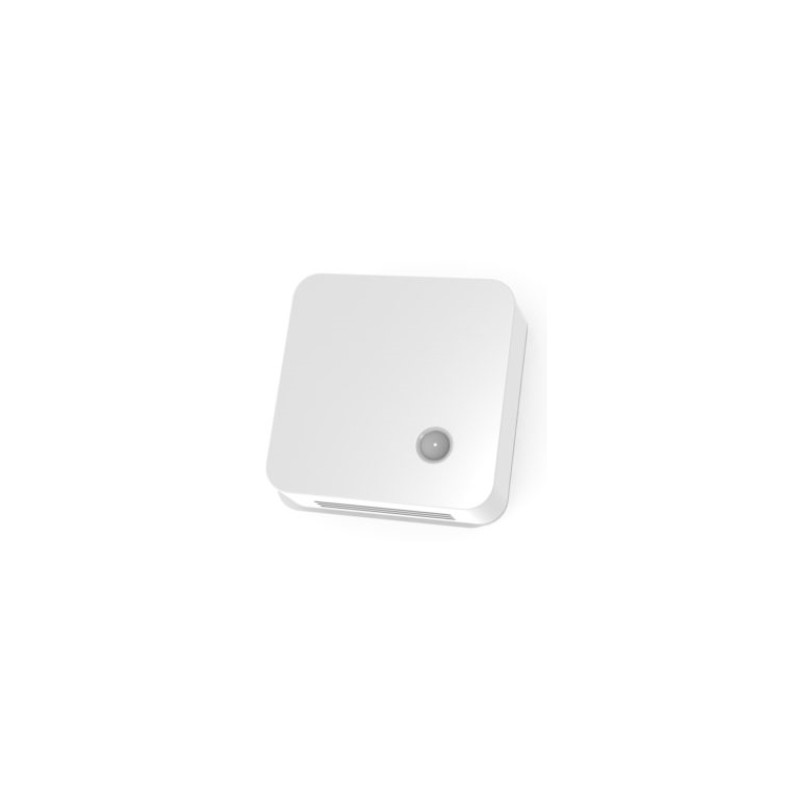

ELSYS ERS CO2

overview

The ERS CO2 is a room sensor for measuring temperature, humidity, light, movement (PIR) and CO2. The two required 3.6V AA lithium batteries are not included in delivery and must be ordered separately.

The ERS sensor from ELSYS measures the room climate and the occupancy of indoor rooms and has various options depending on the version. Available are temperature, humidity, light, acceleration (PIR), volume and table occupancy based on body heat and movement. All sensor versions have NFC (Near Field Communication) for easy communication with an Android smartphone.

Characteristics

• Compatible with LoRaWAN® specification 1.0.3
• Measures the CO2 content of the environment
• Measures the ambient temperature
• Measures ambient humidity
• Measures light intensity
• Detects motion with a passive IR sensor
• Indicates high or low values with an LED light
• easy installation
• Easy configuration
• Can be installed on a wall or any surface
• Battery powered
• Long-range communication
• Configurable via NFC
• Configurable over the air
• Ten years battery life*

Application

• Measuring the indoor environment
• Intelligent buildings
• Management of workplaces
• Room occupancy

Technical data

• Frequency: EU 868 MHz
• Transmission power: 14dBm
• Operating temperature: 0° -+40° C
• Configuration: via download link or NFC
• Battery life: up to 10 years
• Operating humidity: 0% - 85% (non-condensing)
• LoRaWAN: 1.0.3, Class A or C
• Power supply: 2 x 3.6 V AA lithium battery (replaceable) - not included
• Activation: OTAA or ABP
• Measured variables: CO2, temperature, humidity, light intensity and movement
