LoRa ELSYS LoRAWAN ELT Lite outdoor analog or digital sensor (without antenna)

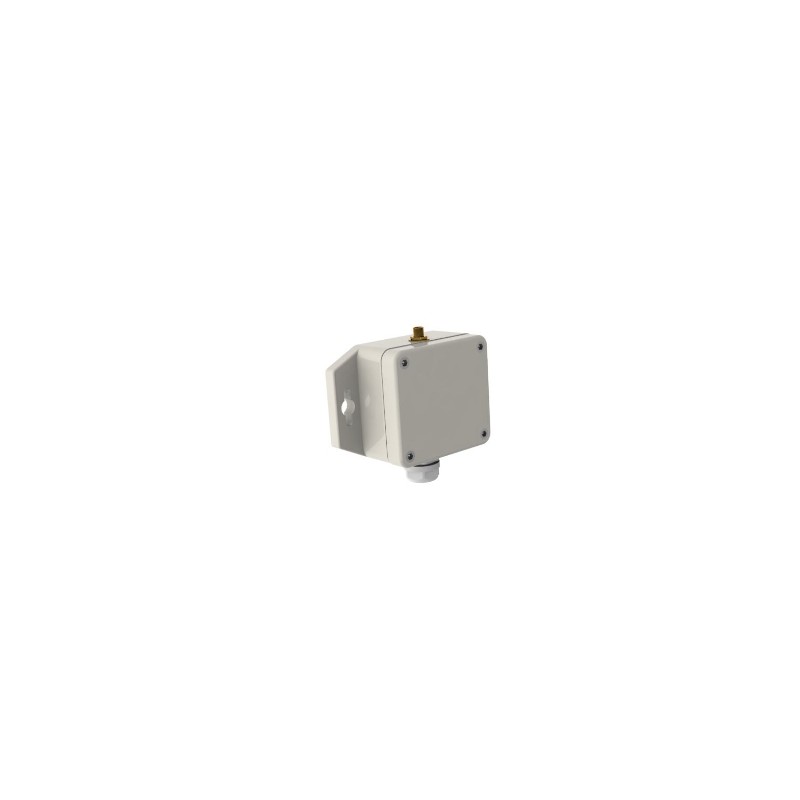

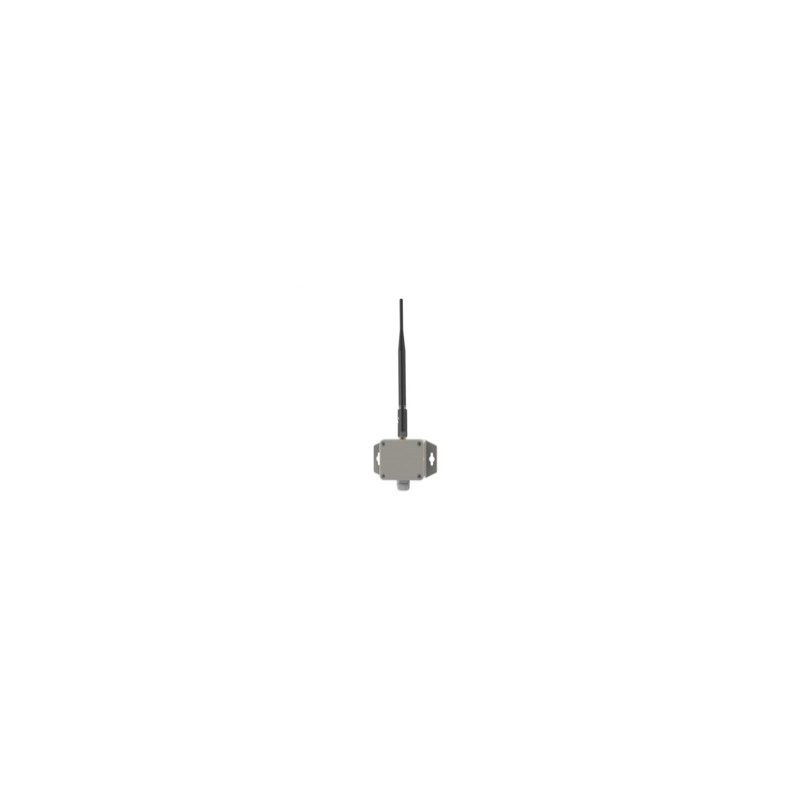

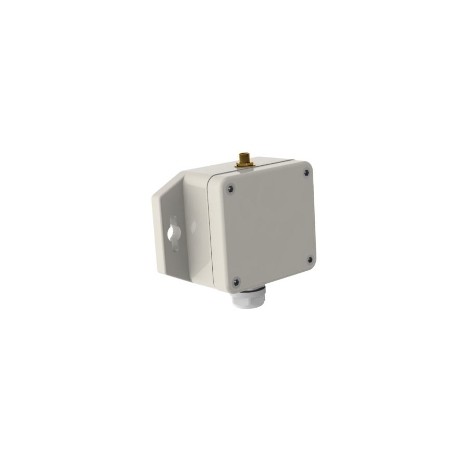

ELSYS ELT Lite analog/digital sensor

overview

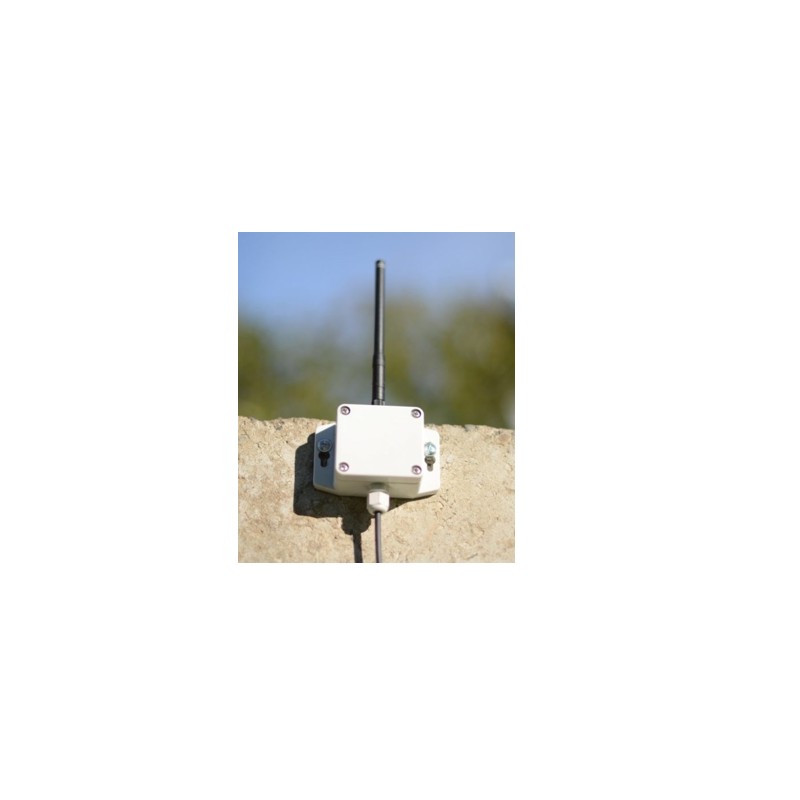

The ELSYS ELT Lite is a wireless transceiver for measuring analog or digital signals and can also supply external sensors with power. With its IP67 housing, the device is ideal for use outdoors in extreme weather conditions. The required 3.6V AA lithium battery is not included in delivery and must be ordered separately.

Characteristics

• LoRaWAN certified CM
• Compatible with LoRaWAN® 1.0.3
• Analog 0 - 10V input
• Digital input
• Pulse counter
• IP67 certified
• Battery operated - not included!
• NFC for configuration - configuration over the air

Application

• Smart Cities
• Agriculture
• Distance measurement
• Extreme weather conditions
• Exposed areas (e.g. containers)

Technical data

• Operating temperature: -40° - +60°C
• Configuration: via download link or NFC
• Communication: LoRaWAN Class A&C
• Protection class: IP67
• Battery life: up to 10 years !!! BATTERY NOT INCLUDED !!!
• Operating humidity: 0 - 100% RH

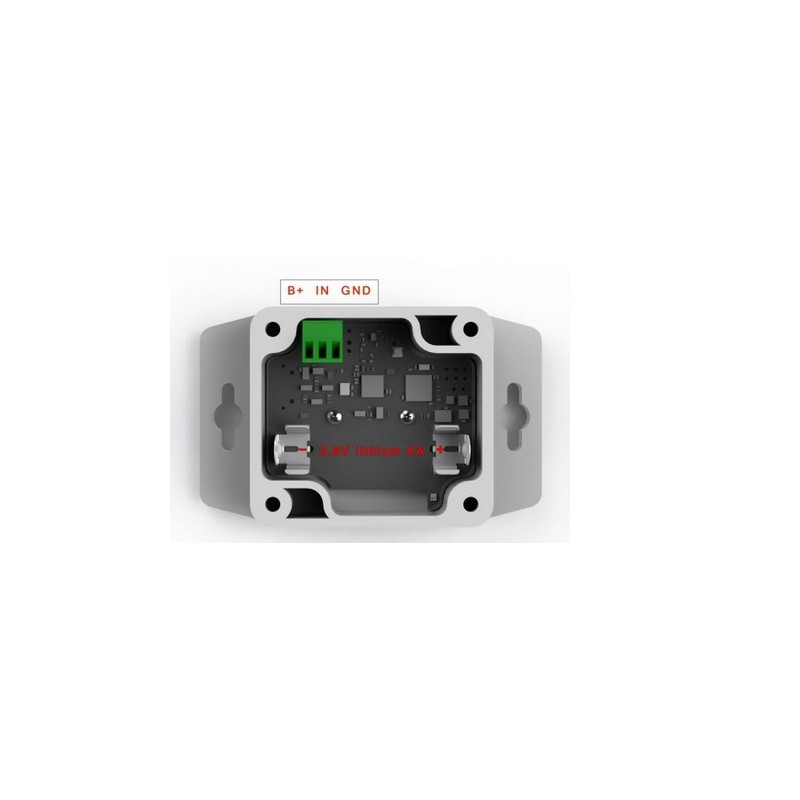

• Power supply: 1 x 3.6V AA lithium battery (replaceable)
• Measured variables: analog, digital and pulse counter
