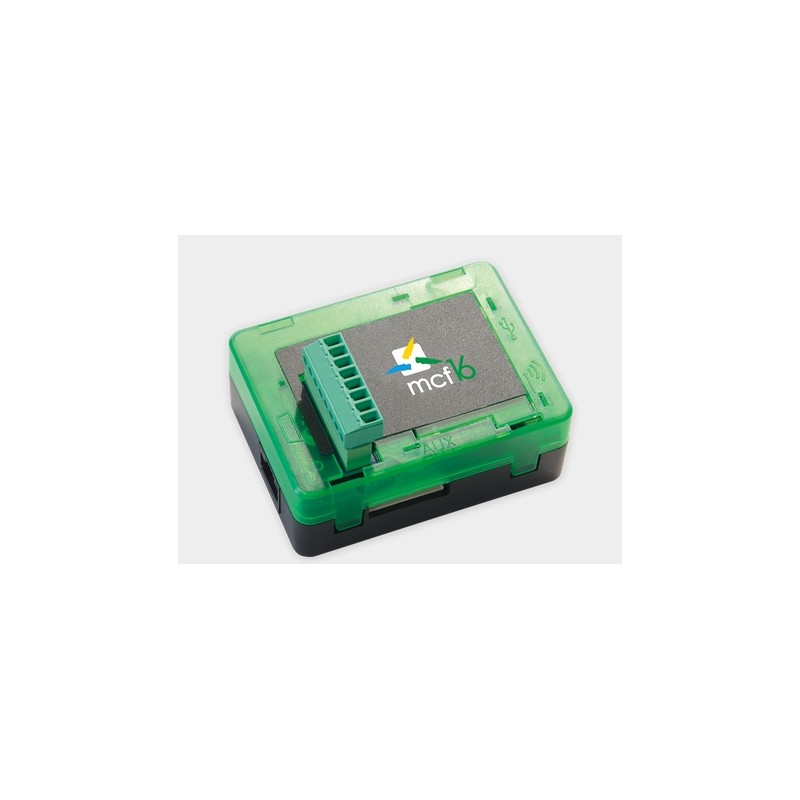

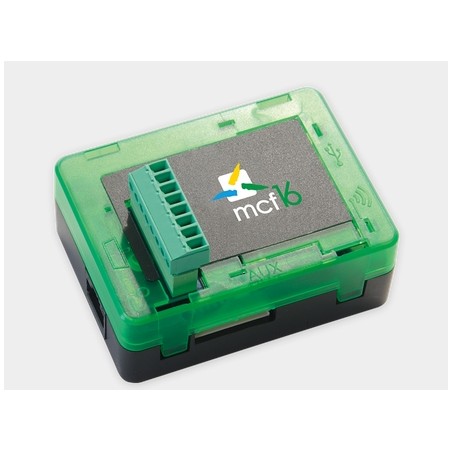

LoRa MCF88 LoRaWAN 4 channels 0-10V to LoRaWAN® interface
LoRa MCF88 LoRaWAN 4 channels 0-10V to LoRaWAN® interface
LoRa MCF88 LoRaWAN 4 channels 0-10V to LoRaWAN® interface
This interface has four 0-10V opto isolated input channels, useful to connect any kind of analog sensor and to forward measurements to the LoRaWAN® platform.
Applications:
Remote industrial interface Remote process supervisor Environment monitor Datalogger
Technical Data:
CPU Cortex M4 RTC EEProm 32KB Flash 1MB Encryption AES 128 bit LiPo rechargeable battery Class C LoRaWAN® stack 1000Vdc isolated analog inputs 4 analog voltage inputs 0-10V 12bits USB On The Go IoT node setup ad firmware upgrade via USB interface Power supply 10-36Vdc Storage temperature range -20 + 80 °C Working temperature range -10 + 70 °C Dimensions L x H X P: 81 x 60 x 50mm
Details about LoRa MCF88 LoRaWAN 4 channels 0-10V to LoRaWAN® interface
Manufacurer:
Weight:
