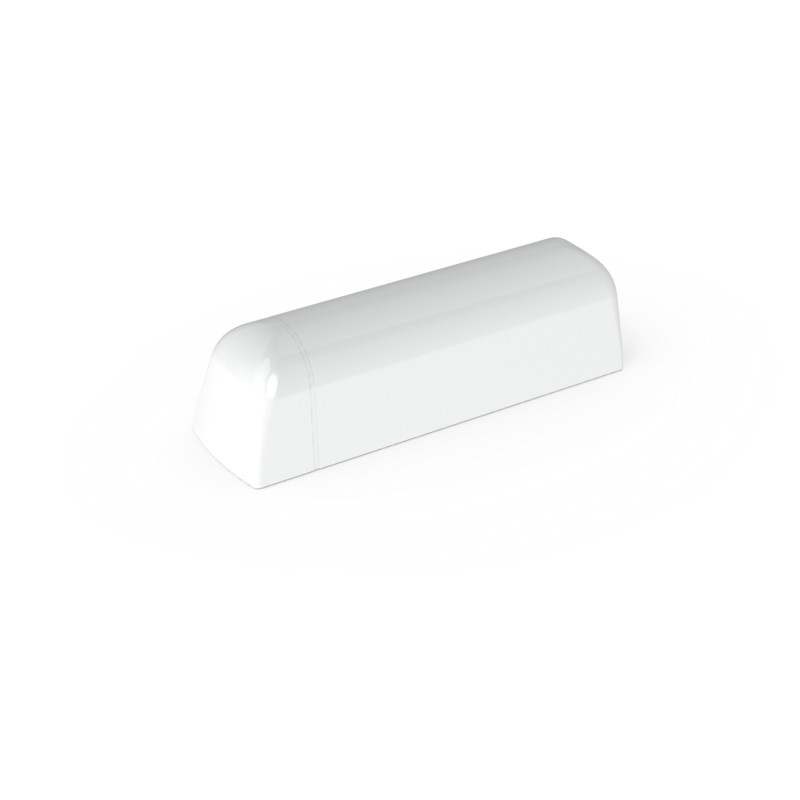

Elsys EMS Room Sensor

overview

The EMS multisensor from ELSYS is only slightly larger than the AA lithium battery inside. This small size and subtle design make it ideal for indoor use. It has a temperature sensor, humidity sensor, accelerometer, water leak detector and registers openings. This number of sensors makes it a very versatile sensor that can be used for a wide range of applications. For example, it can be used on a dishwasher, on door frames and windows, as well as for measuring the room climate and for workplace management. The necessary 3.6V AA lithium battery is not included in the scope of delivery and must be ordered separately.

Characteristics

• LoRaWAN® certification in progress
• Temperature sensor
• Humidity sensor
• Accelerometer
• Water leak detector
• Door switch
• NFC for configuration
• Configuration over the air

Applications

• Measuring the indoor environment
• Intelligent buildings
• Management of workplaces
• Water leak detection

Technical data

• Frequency: EU868 MHz
• Transmission power: 14dBm
• Operating temperature: 0° - +40° C
• Configuration: via download link or NFC
• Battery life: up to 10 years - battery not included!
• Operating humidity: 0% - 85% (non-condensing)
• LoRaWAN: 1.0.3, Class A or C
• Power supply: 1 x 36.6 V AA lithium battery (replaceable)
• Activation: OTAA or ABP
• Measured variables: temperature, humidity, acceleration and door contact
