ELSYS · LoRa · LoRAWAN EMS-Door · Opening and acceleration sensor

Elsys EMS Door Sensor

overview

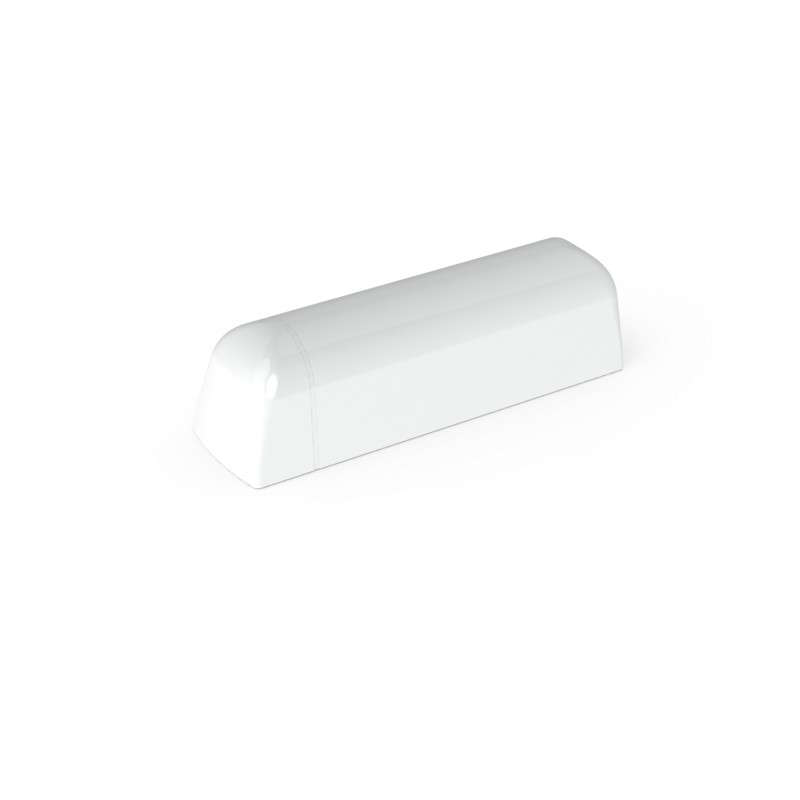

The opening activity sensor from ELSYS is only slightly larger than the AA lithium battery inside. This small size and subtle design make it ideal for indoor use. It can of course be used to detect door openings and closings, but it can also be mounted on windows or cabinets. Because it not only detects the opening but also the acceleration, this sensor is more versatile in use, for example in smart offices or smart buildings. The necessary 3.6V AA lithium battery is not included in the scope of delivery and must be ordered separately.

Characteristics

• LoRaWAN® certification in progress
• Accelerometer
• Door switch
• NFC for configuration
• Configuration over the air

Application

• Intelligent buildings
• Management of workplaces
• Detection of door activities
• Detection of movements

Technical data

• Frequency: EU 868 MHz
• Transmission power: 14 dBm
• Operating temperature: 0° - 40° C
• Configuration: via download link or NFC
• Service life: up to 10 years
• Operating humidity: 0% - 85% (non-condensing)
• LoRaWAN: 1.0.3, Class A or C
• Power supply: 1 x 3.6 V AA lithium battery (replaceable) - battery not included!
• Activation: OTAA or ABP
• Measured variables: door contact and acceleration
