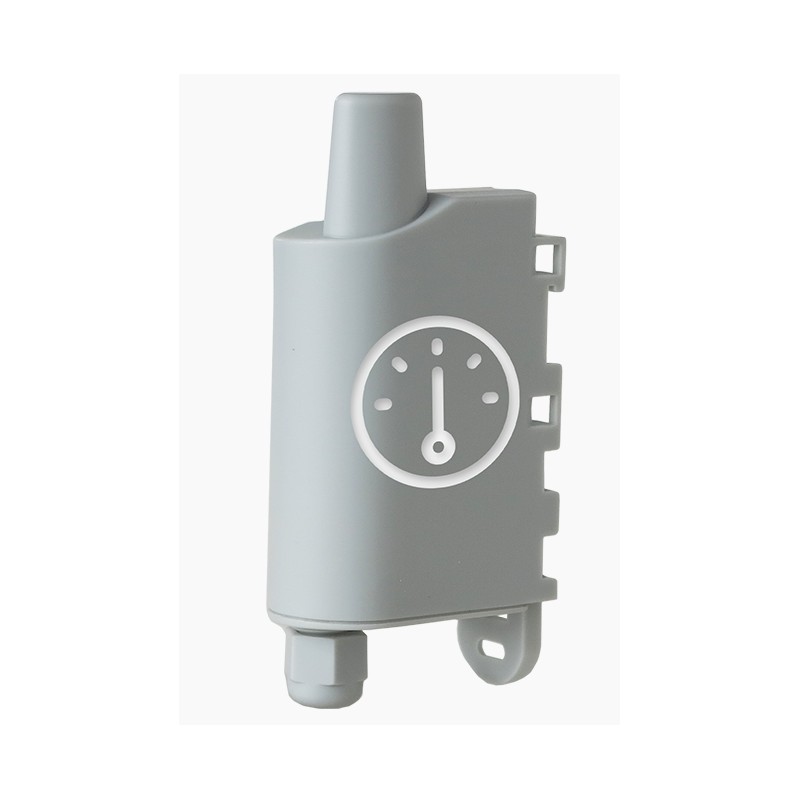

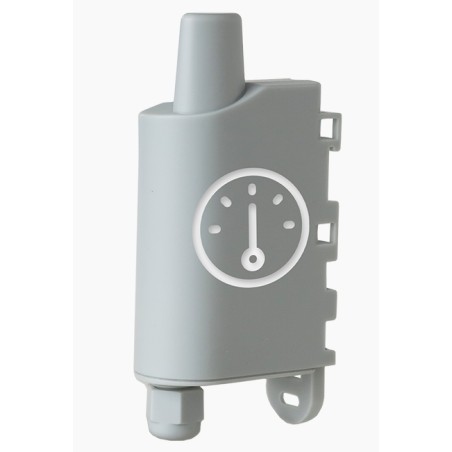

LoRa Adeunis LoRaWAN Pulse v3 ATEX EU863 + Binderatex II 2GD

LoRa Adeunis LoRaWAN Pulse v3 ATEX + Binderatex II 2 GD

PULSE v3 ATEX LoRaWAN™ EU863-870 + BINDERATEX II 2 GD

overview

• ATEX product: Use in potentially explosive atmospheres
  - Gas and steam
• Zone 1 : immediate proximity to the sensitive area
• Group IIC : hydrogen gases and vapours, acetylene ... and dust
• Zone 21 : immediate proximity to the sensitive area
• Up to 2 connectable meters
• Detection of tampering and leaks
• Flow rate monitoring
• Local and remote configuration
• Data collection for optimal autonomy
• Redundancy for better service continuity
• Exist in non-ATEX version
• Compatible with KARE© services

Technical data

• Periodic modes with or without protocol
• Data redundancy

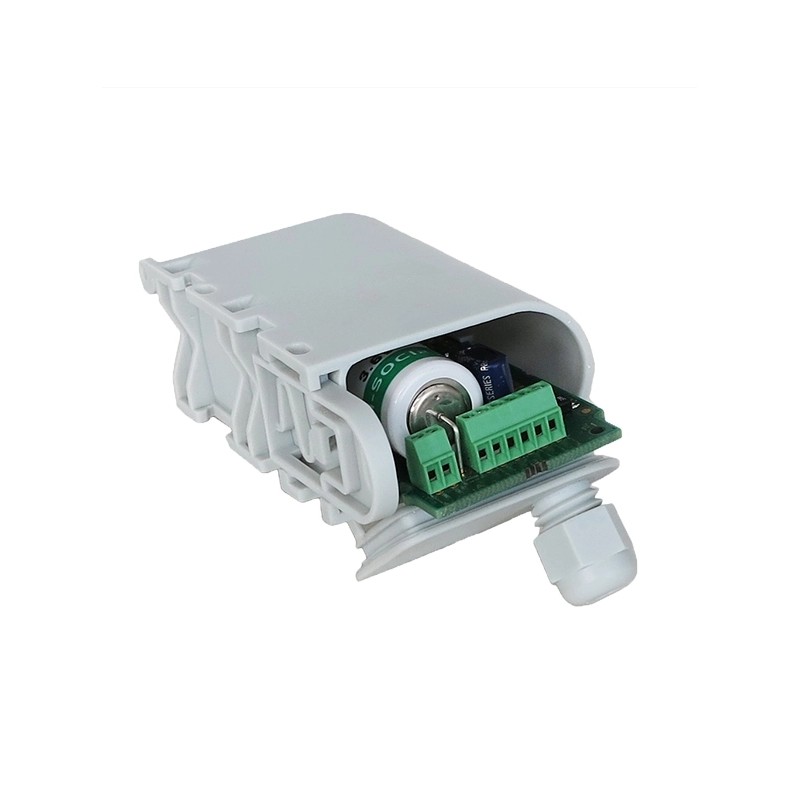

• Soldered battery
• Dimensions: 105 x 50 x 27mm
• Housing: IP67 (IP68 on request)

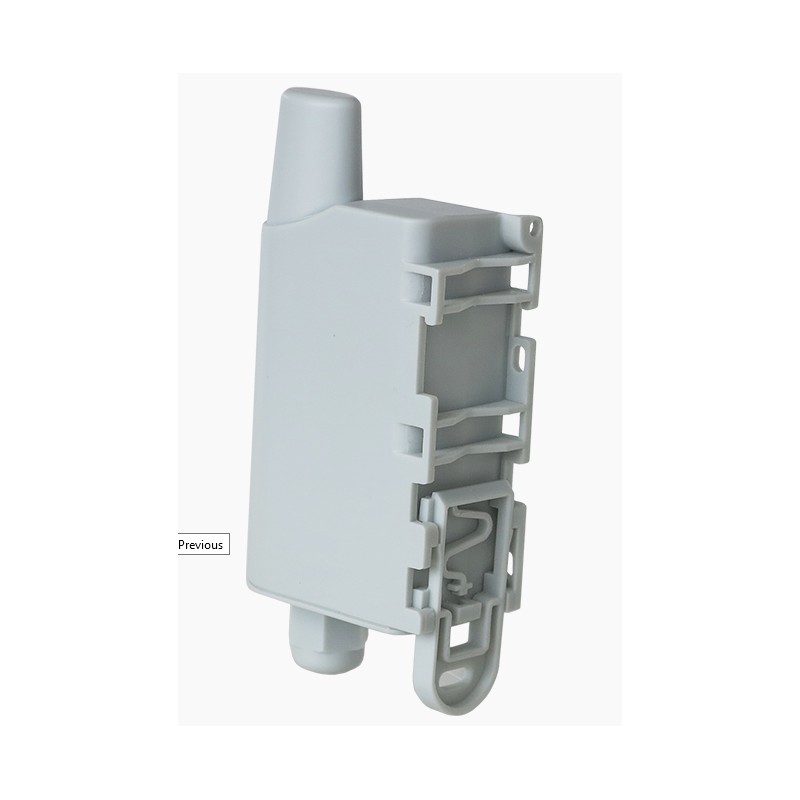

• Integrated mounting system: DIN rail, pipe, wall mounting, flange
• Zone:
• Sigfox: RC1
• LoRaWAN®: EU863-870
• Operating temperature range: -20°C to + 40°C
• Weight: 70g
• Standards: Directive 2014/53/EU (RED)
• Product warning, configuration error, low battery

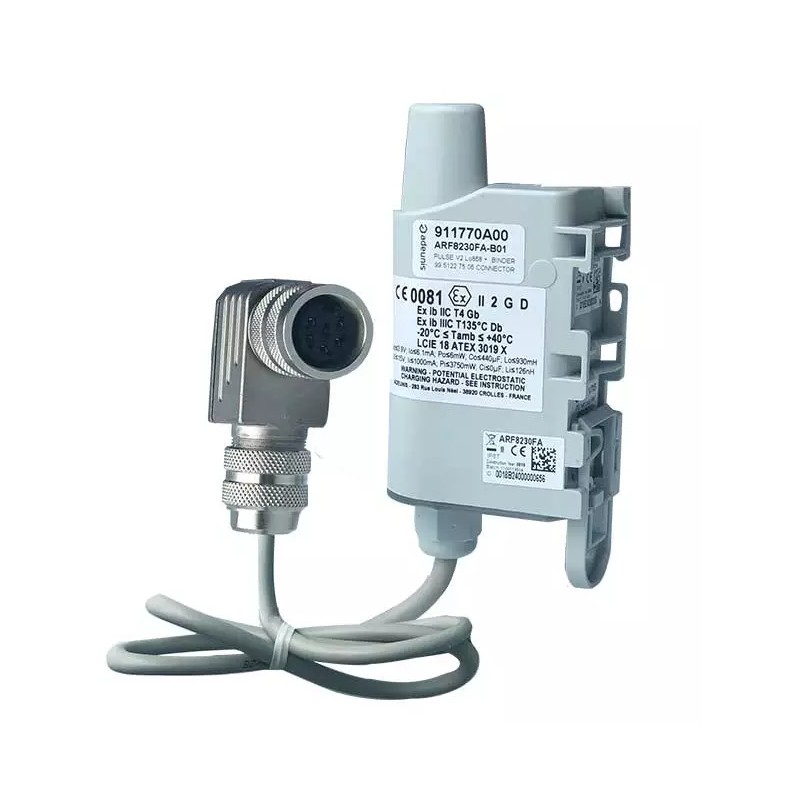

ATEX specifications

• ATEX II 2 GD
• Ex ib IIC T4 Gb
• Ex ib IIIC T135°C Db
• -20°C < Tamb < +40°C
• Uo ≤ 3.9V Io ≤ 6.1mA Po ≤ 6mW Co ≤ 440µF Lo ≤ 930mH
• Ui ≤ 15V Ii ≤ 1000mA Pi ≤ 3750mW Ci = 0µF Li = 126nH
