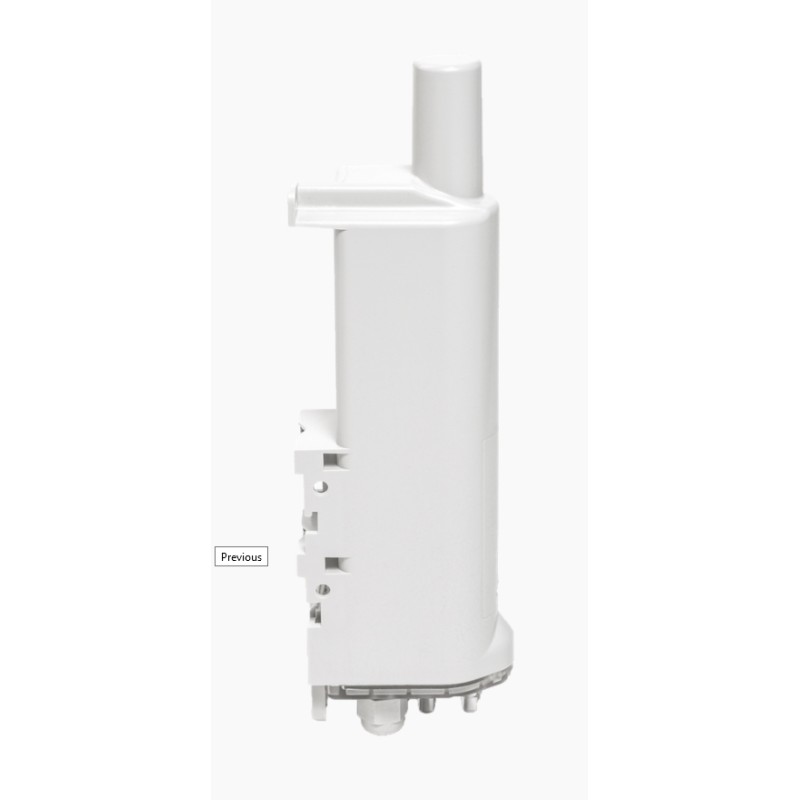

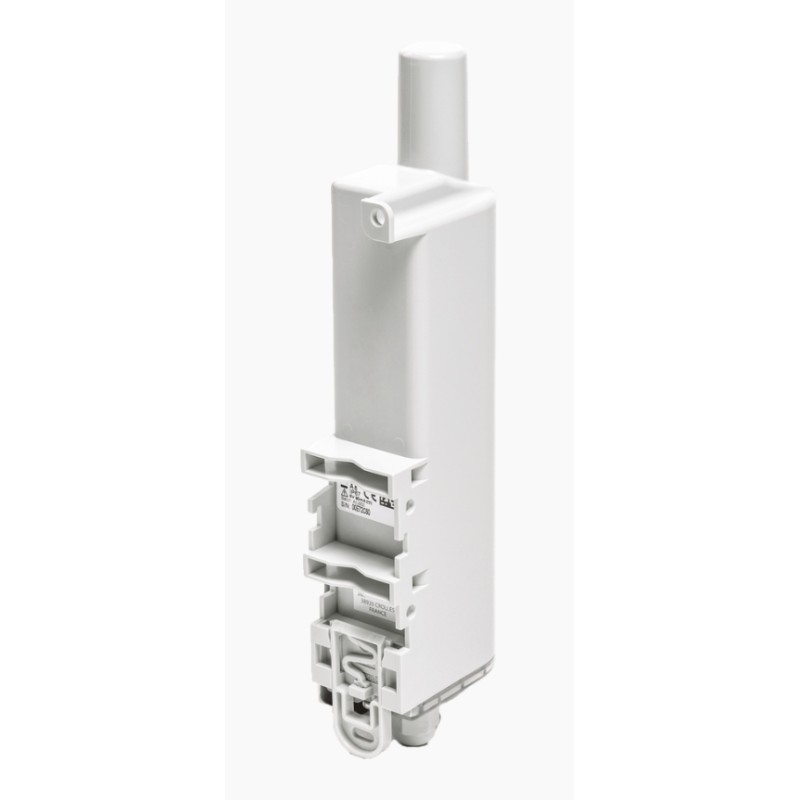

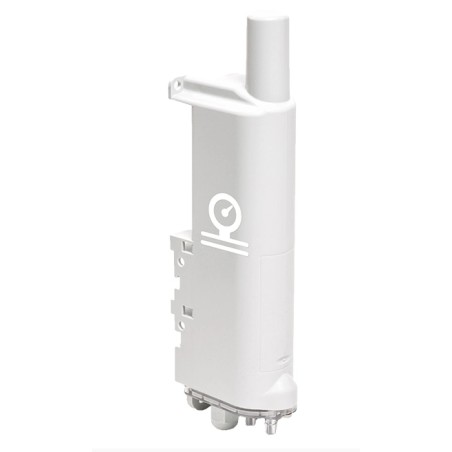

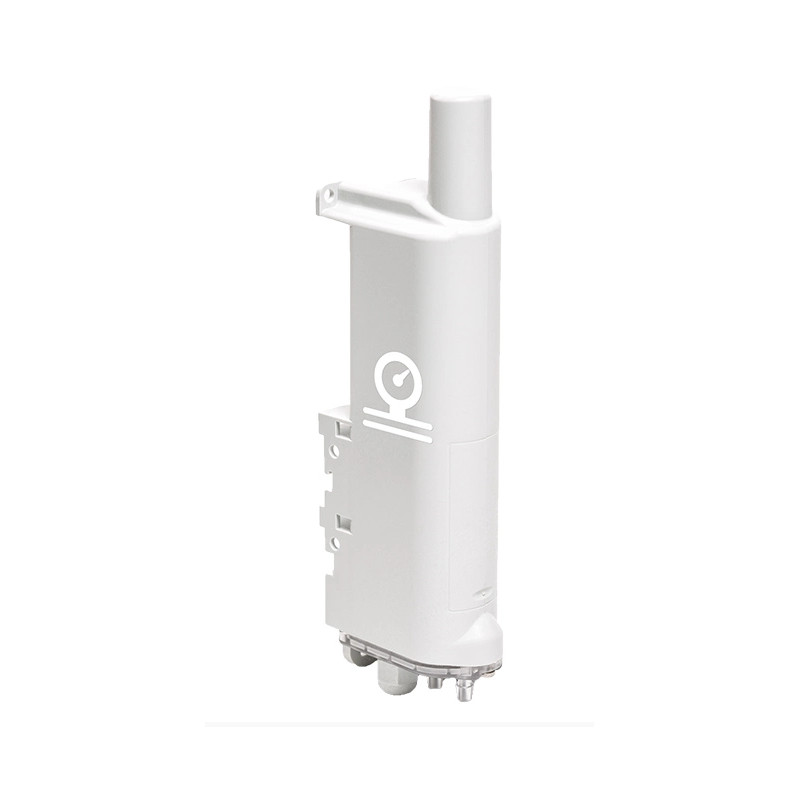

LoRa Adeunis LoRaWAN DeltaP atmospheric pressure sensor
LoRa Adeunis LoRaWAN DeltaP atmospheric pressure sensor
LoRa Adeunis LoRaWAN DeltaP atmospheric pressure sensor
LoRa Adeunis LoRaWAN DeltaP atmospheric pressure sensor
DeltaP LoRaWAN™ EU863-870 Soldered battery / IP68
overview
Monitor the operation of a ventilation box, ventilation unit or building air system
- Pressure difference: relative to atmospheric pressure or between two different zones
- 2 digital inputs/outputs: for connection to a PLC to track alarms or operating states
- 1 analog input 0-10V: for connection to a sensor
Technical data
- Periodic or event mode
- Operating temperature range: -20°C /+70°C
- Delta pressure: -500/+500Pa
- Accuracy: +/- 25Pa
- Housing: IP68
- Dimensions: 200 x 63.5 x 34 mm
- Replaceable battery
- Integrated mounting system: DIN rail, pipe, wall, collar
- Zone:
- Sigfox: RC1
- LoRaWAN®: EU863-870
- Standards: Directive 2014/53/UE (RED)
