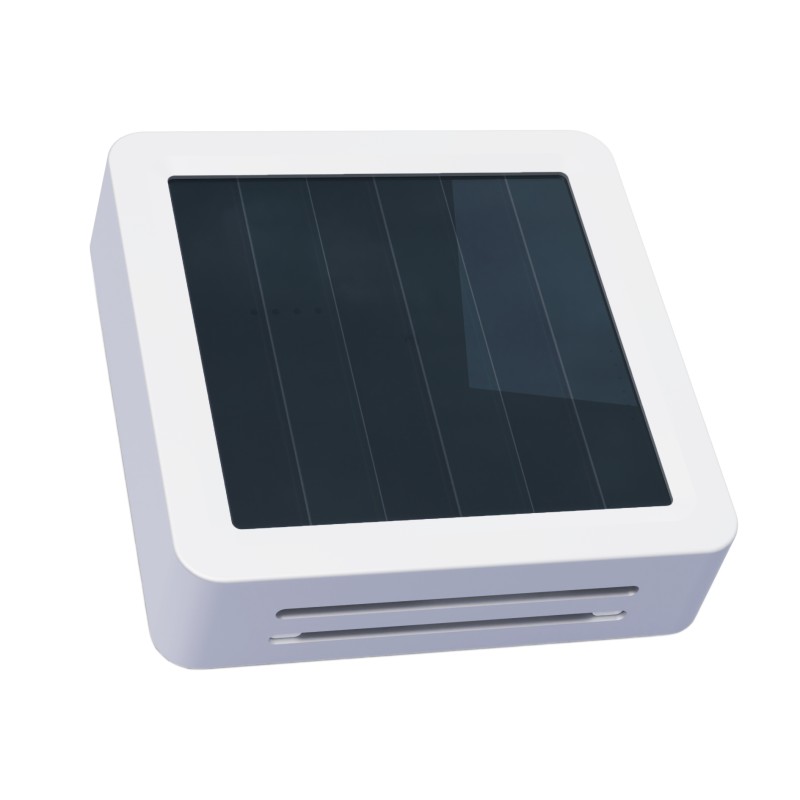

ELSYS ERS Eco temperature and humidity sensor
overview
The ERS Eco is a LoRaWAN® temperature and humidity sensor for indoor use. This sensor is an environmentally friendly alternative with an organic solar cell as the only power source and a housing made of biodegradable material. The elimination of batteries in a wireless IoT device reduces the environmental impact and maintenance costs immensely.
The ERS Eco can operate in the dark for up to 30 days. This time depends on the following factors: measurement interval, transmission interval, data rate and environmental factors. The sensor can operate in a self-adaptation mode which results in less power consumption, less network load and less redundant data. If you activate this function, the sensor will adjust the transmission rate if the measured values have not changed.
All ELSYS sensors feature a Scandinavian design that integrates beautifully into all kinds of applications and have an NFC interface for easy configuration via an Android app.
Characteristics
- Measurement of temperature and humidity
- Power supply via an organic solar cell
- Housing made of biodegradable material
- Wireless and without batteries
- Up to 30 days of operation in the dark
- Self-adaptation mode
Application
- Measuring the indoor environment
- Intelligent buildings
Technical data
| Weight | 0.05kg |
| Dimensions | 66 × 66 × 17mm |
| Housing | biodegradable material |
| IP protection class | IP20 |
| Assembly | Screwing, gluing |
| operating temperatur | 0 – 50°C |
| Operating humidity | 0 – 85% RH |
| Operating environment | inside rooms |
| Battery type | Lithium-ion capacitor (LIC) |
| Battery life | Up to 30 in the dark depending on measurement interval, transmission interval, data rate and environmental factors |
| Radio technology | LoRaWAN 1.0 and 1.1 |
| Wireless security | LoRaWAN End-to-End encryption (AES-CTR), Data Integrity Protection (AES-CMAC) |
| LoRaWAN device type | Class A/C (configurable) End-device |
| Supported LoRaWAN® functions | OTAA, ABP, ADR, Adaptive Channel Setup |
| LoRaWAN® Region | EU868 |
| Link budget | 137 dB (SF7) to 151 dB (SF12) |
| RF transmit power | 14 dBm |
