Description:
The Dragino LHT65N-E5 temperature, humidity and illumination sensor is a long range LoRaWAN sensor. It has a built-in temperature and humidity sensor and an external illumination sensor.
The LHT65N-E5 enables users to send data and achieve ultra-long ranges. It provides ultra-long range spread spectrum communication with high noise immunity and minimal power consumption. It is suitable for professional wireless sensor network applications such as irrigation systems, smart meters, smart cities, building automation, etc.
The LHT65N-E5 has a built-in non-rechargeable 2400mAh battery that can be used for more than 10 years*.
The LHT65N-E5 is fully compatible with the LoRaWAN v1.0.3 Class A protocol and can operate with a standard LoRaWAN gateway.
*Actual battery life depends on how often data is sent, see Battery Analyzer chapter.
Characteristics:
- LoRaWAN Class A protocol
- Frequency bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
- AT commands to change parameters
- Remote configuration of parameters via LoRaWAN downlink
- Firmware upgrade possible via program port
- Built-in 2400mAh battery with a lifespan of up to 10 years*
- Built-in temperature and humidity sensor
- External illuminance sensor
- Three-color LED for status display
- Wall mounting possible
Applications:
- Wireless alarm and security systems
- Home and building automation
- Automated meter reading
- Industrial monitoring and control
- Long range irrigation systems, etc.
Specifications:
- Built-in temperature sensor:
- Resolution: 0.01 °C
- Accuracy tolerance: Typ ±0.3 °C
- Long-term drift: < 0.02 °C/year
- Operating range: -40 ~ 80 °C
- Built-in humidity sensor:
- Resolution: 0.04%RH
- Accuracy tolerance: Typ ±3 %RH
- Long-term drift: < 0.02 °C/year
- Operating range: 0 ~ 96 %RH

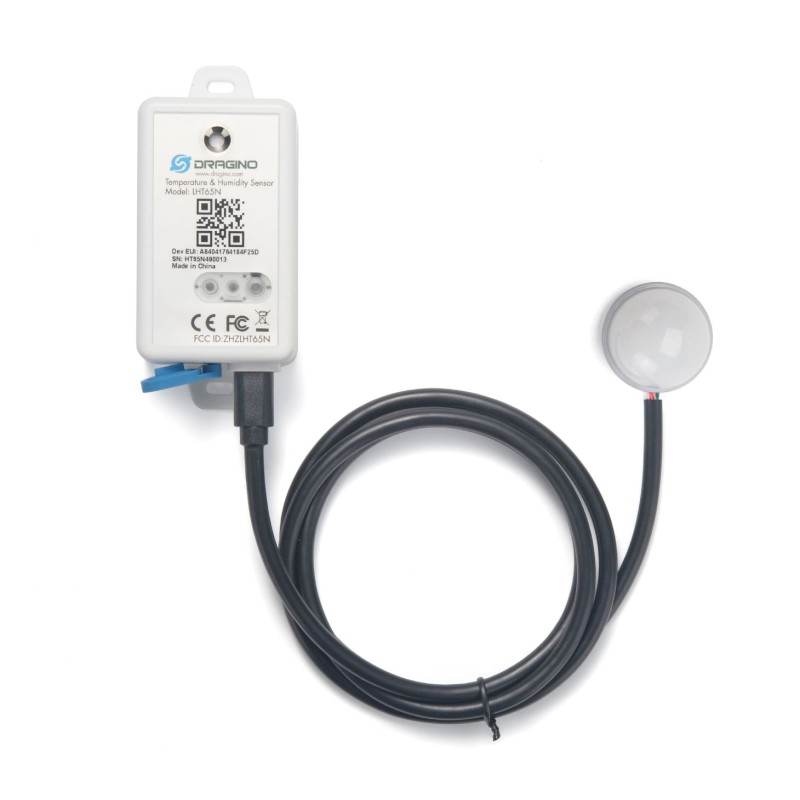

- External illuminance sensor:
- Based on BH1750 illumination sensor:
- Cable length: 50cm
- Resolution: 1 lx
- Range: 0-65535 lx
- Operating range: -40 °C ~ 85 °C
